SATO CL6NX Programming Reference

220
[Supplementary Explanation]
• This command supports UPC-A only. When barcode type is specified other than "H", command
error occurs.
• Setting of Guard bar, HRI and ratio is described as follows.
Guard bar : Available
HRI : Nil
Ratio : Fix
• When the parameter value exceeds the range, operation is not supported.
• When printing UPC-A with <D>, all character barcodes have the same height. When <BL>
is used, the height of the character barcode of the start digit and the last digit have the same
height of the guard bar.

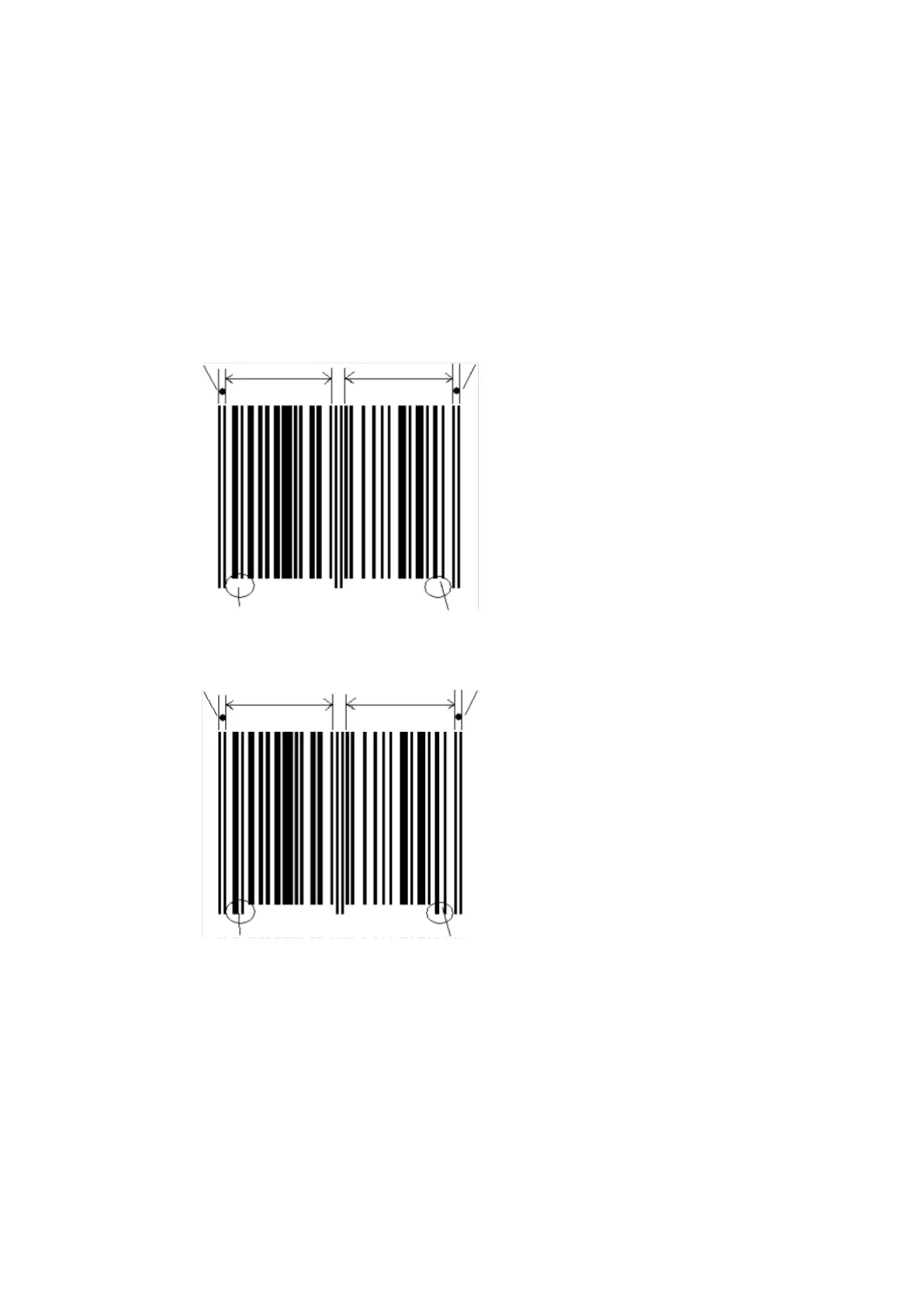

Guide bar
Guide bar
First digit Last digit
Character barcode Character barcode
UPC-A specifying <D>
Guide bar
Guide bar
First digit Last digit
Character barcode Character barcode
UPC-A specifying <BL>
Parent topic Barcode Command
