SATO CL6NX Programming Reference

222
[Supplementary Explanation]
• This command supports UPC-A only. When barcode type is specified other than "H", command
error occurs.
• Recommended to specify [02] or [03] for the narrow bar width.
• Check digit (12th digit) for HRI data should be set the calculation result of modulus 10.
• Setting of Guard bar, HRI and Ratio is following.
Guard bar : Available
HRI : Available
Ratio : Fix
• When the parameter value exceeds the range, operation is not supported.
• If barcode with human readable text has errors, the human readable text is printed in a normal
font.
• All character barcode have the same height when printing UPC-A specifying <BD> and then
<font>. The first and the last character barcode have the same height to the guard bar when
printing UPC-A specifying <BL> and then <font>. When printing UPC-A specifying <BD> and
<font>, HRI can be printed under the first digit and the last digit because the height of the
first digit and the last digit of the barcode is low. When printing UPC-A specifying <BM> and
<font>, the height of the first digit and the last digit of the barcode is high, and the font interval is
narrower than previous case.

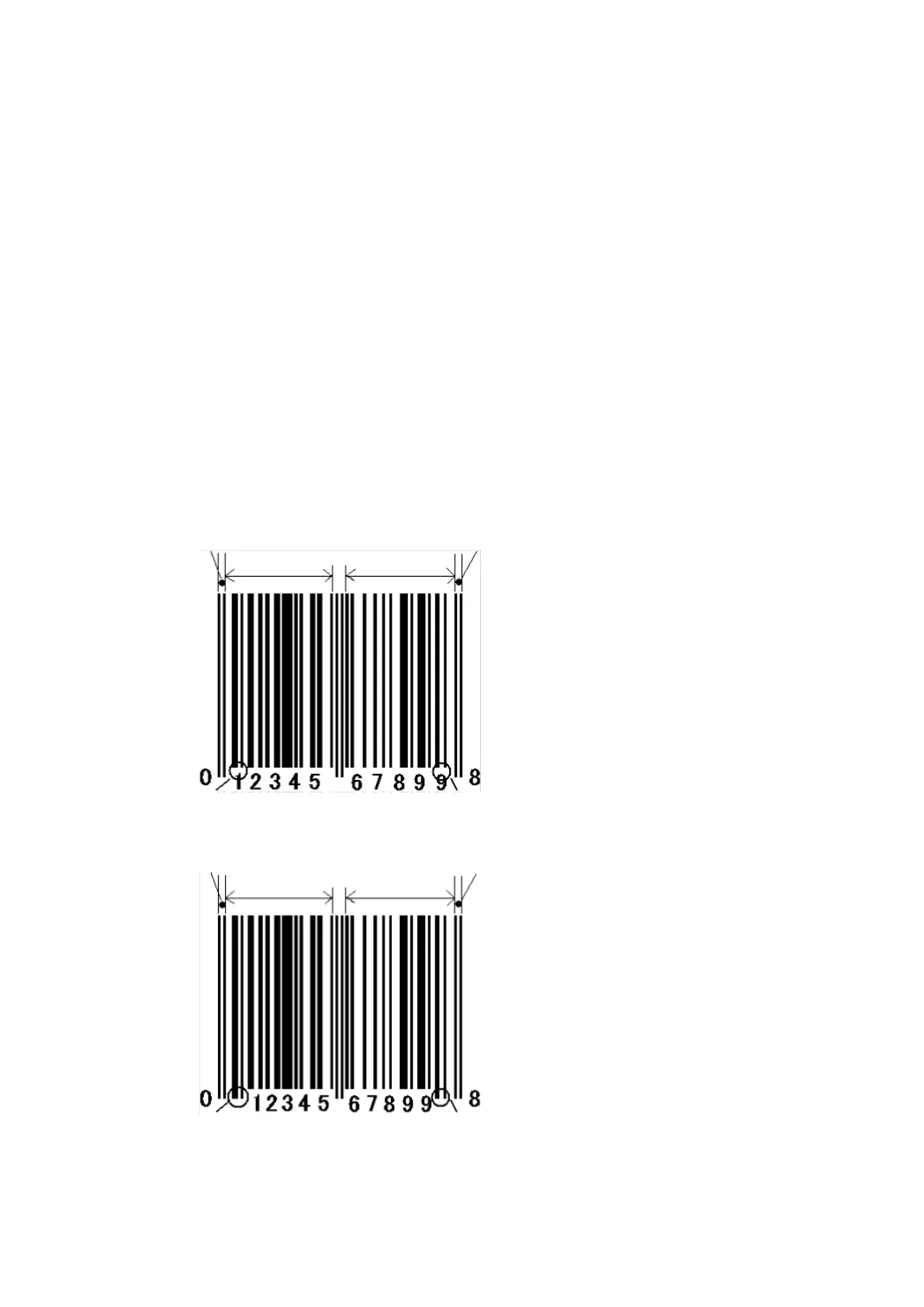

Guide bar Guide bar
First digit
Last digit
Character barcode Character barcode
UPC-A specifying <D> + <font>
Guide bar
Guide bar
First digit
Last digit
Character barcode Character barcode
UPC-A specifying <BL> + <font>
Parent topic Barcode Command

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
