226

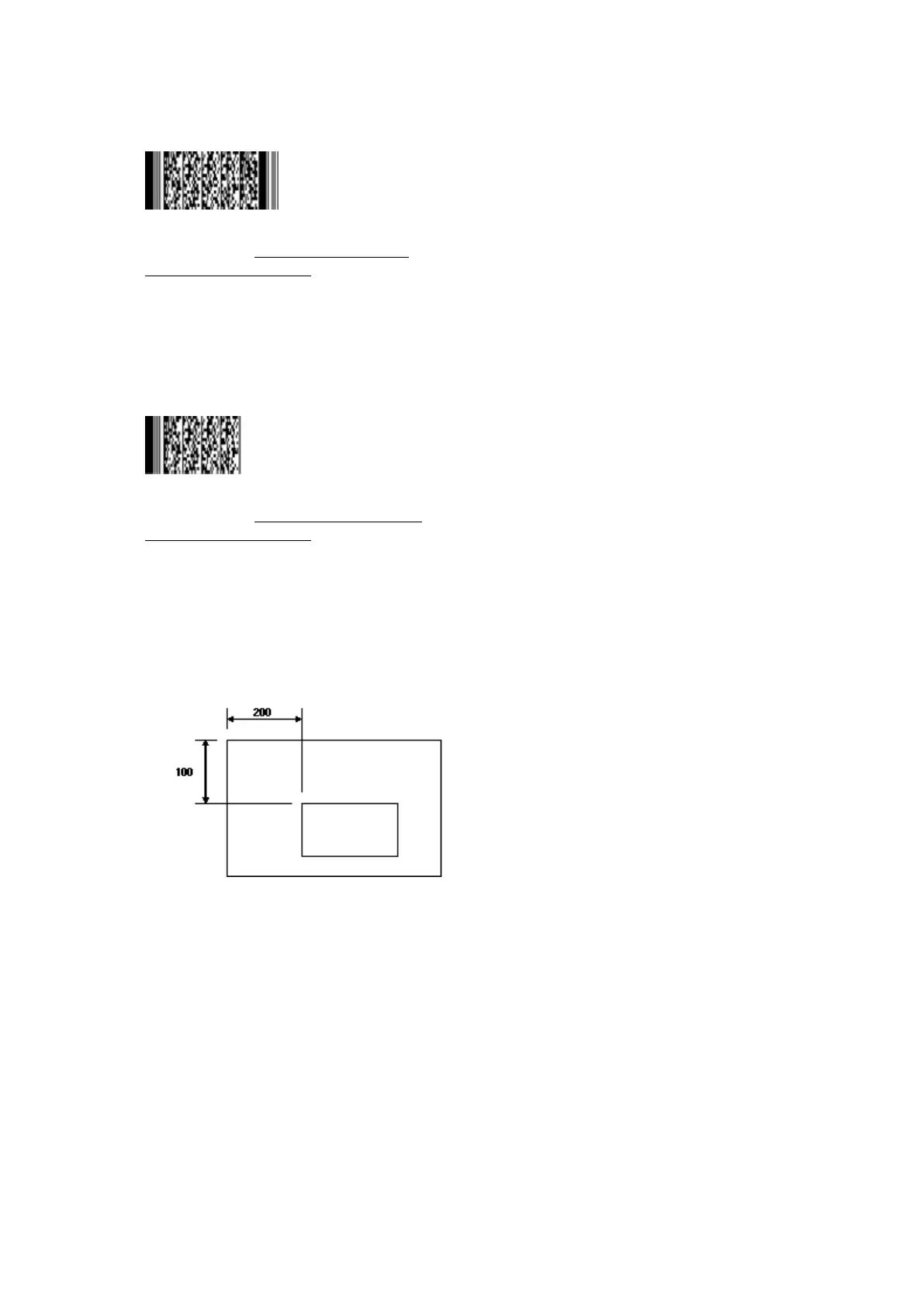

[Coding Example1]
Minimum module width: 03 dots, Minimum module height: 09 dots, Security level: 3, Number of data
code words per line: 03, Number of line per symbol: 18
<A>
<V>100<H>200<2D10>,03,09,3,03,18
<DN>0010,0123456789
<Q>2
<Z>
[Coding Example 2]
Minimum module width: 03 dots, Minimum module height: 09 dots, Security level: 3, Number of data
code words per line: 03, Number of line per symbol: 18, Code type: Truncated
<A>
<V>100<H>200<2D10>,03,09,3,03,18,1
<DN>0010,0123456789
<Q>2
<Z>
[Supplementary Explanation]
• Base print position of PDF417 is specified by vertical print position <V> and horizontal print
position <H>
<V>100<H>200<2D10>***. . . . . . **
• When d=e=00, aspect ratio will be at 1:2 based on the number of print data.
• When parameter d and e does not match number of data, print may not be performed properly.
• When setting security level high, parameter d or e should have large number.
• Recommended to specify more than 2 dots for 8 dots/mm and 12 dots/mm printhead, and 4
dots for 24 dots/mm printhead because the minimum module width and minimum module height
of QR code may not be read by the scanner.
• Barcode generation module has been modified for improvement. How the generated image
looks may differ due to the change, however the read result is the same.
[point]
• Sequential number is not available.
• Specifying print position by automatic line feed is not available.
