SATO CL6NX Programming Reference

233

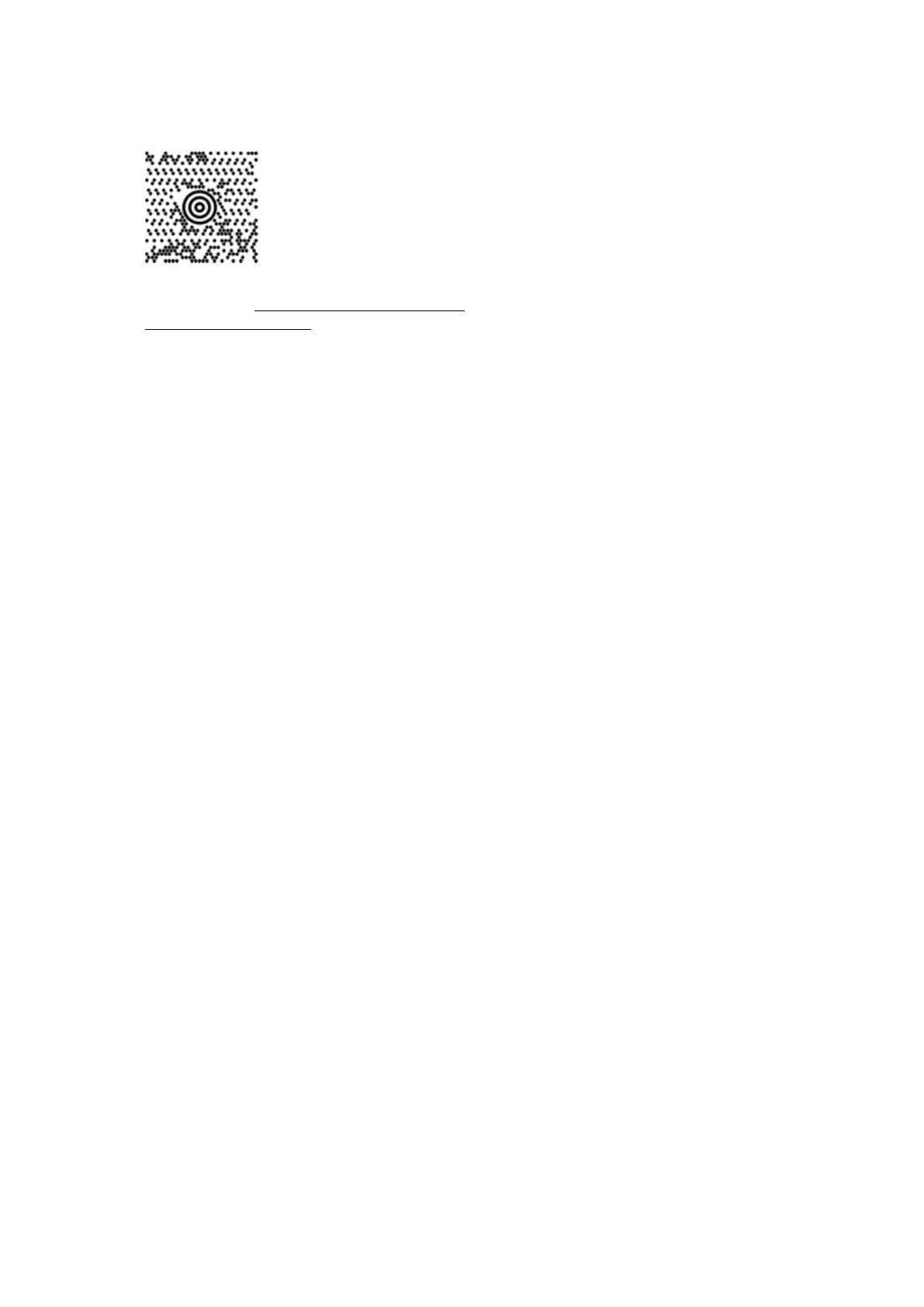

[Coding Example]
Mode: Transportation (Numeric only), Service class: 003, Country code: 081, Postal code:
123456789
<A>
<V>100<H>200<2D20>,2,003,081,123456789
<DN>0010,0123456789
<Q>2
<Z>
[Supplementary Explanation]
• Size of MaxiCode are not changed by number of data for printing.
• If parameter that is not described above is used, or number of print data does not match,
symbol is not printed.
• When specifying mode 4 and mode 6, number of print data must be specified over 12. When
number of print data is specified less than 11, scanner cannot read printed MaxiCode.
• The maximum number of print data varies depending on the print data combination when using
the print data other than alphanumeric code.
• Barcode generation module has been modified for improvement. How the generated image
looks may differ due to the change, however the read result is the same.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
