[Supplementary Explanation]
• Overwriting registration data is available.
• Specify slot registered with Card Slot for Use <CC> prior to this command <T1> by all means.
• The code to specify in the registration font code address needs to match the Kanji set (<KS>)
and Kanji code (<KC>).
• When use <T1> with another registration command, it may occur error because of capacity
shortage of the memory card.
In this case, register another command in another memory card, or use a memory card having
bigger capacity.
• Data output is as follows.

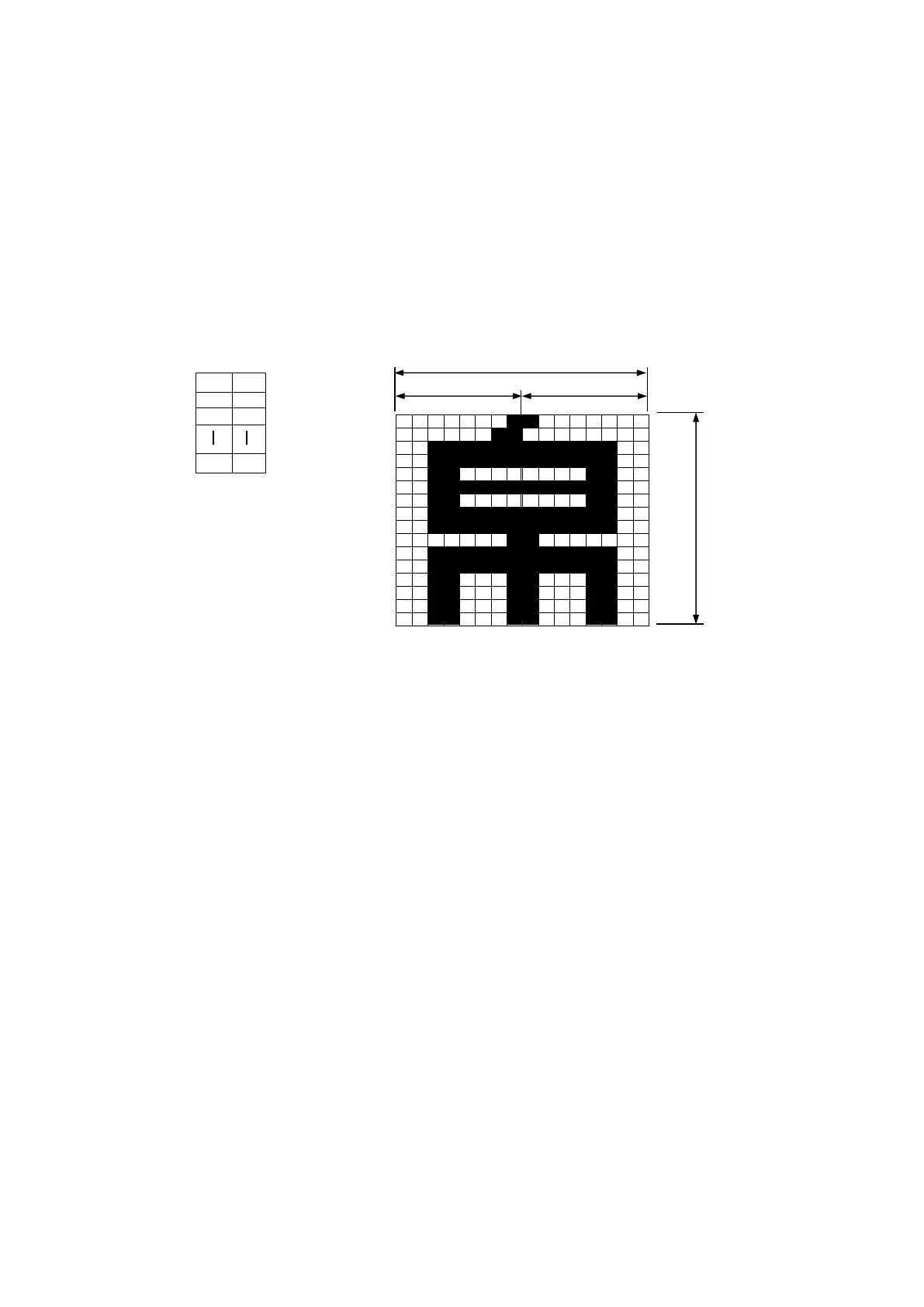

External file [16x16]
8 dots
16 dots
8 dots
D2
D31
16 dots
D4
D6
D8
D32
D30
D28
D26
D10
D12
D14
D16
D18
D20
D22
D24
D29
D27
D25
D23
D21
D19
D17
D15
D13
D11
D9
D7
D5
D3
D1
D1 D2
D3 D4
D5 D6
D31 D32
When registering the external characters described above, D1 data becomes <01>
16
and D2
data becomes <80>
16
because D1 consists of [00000001], D2 consists of [10000000].
In the same manner, D3 is <03>
16
, D4 is <00>
16
, D5 is <3F>
16
, D6 is <FC>
16
, and the external
registration data will be <018003003FFC…..>
16
up to D32.
[Note]
• Do not turn the printer's power off when accessing to the memory. When the printer power is off
while memory accessing, the data in the accessed media may be corrupted.
Parent topic Memory Card Command
