2) Cancel request command
*1 Responds to print command only when
RS-232C and Bluetooth.

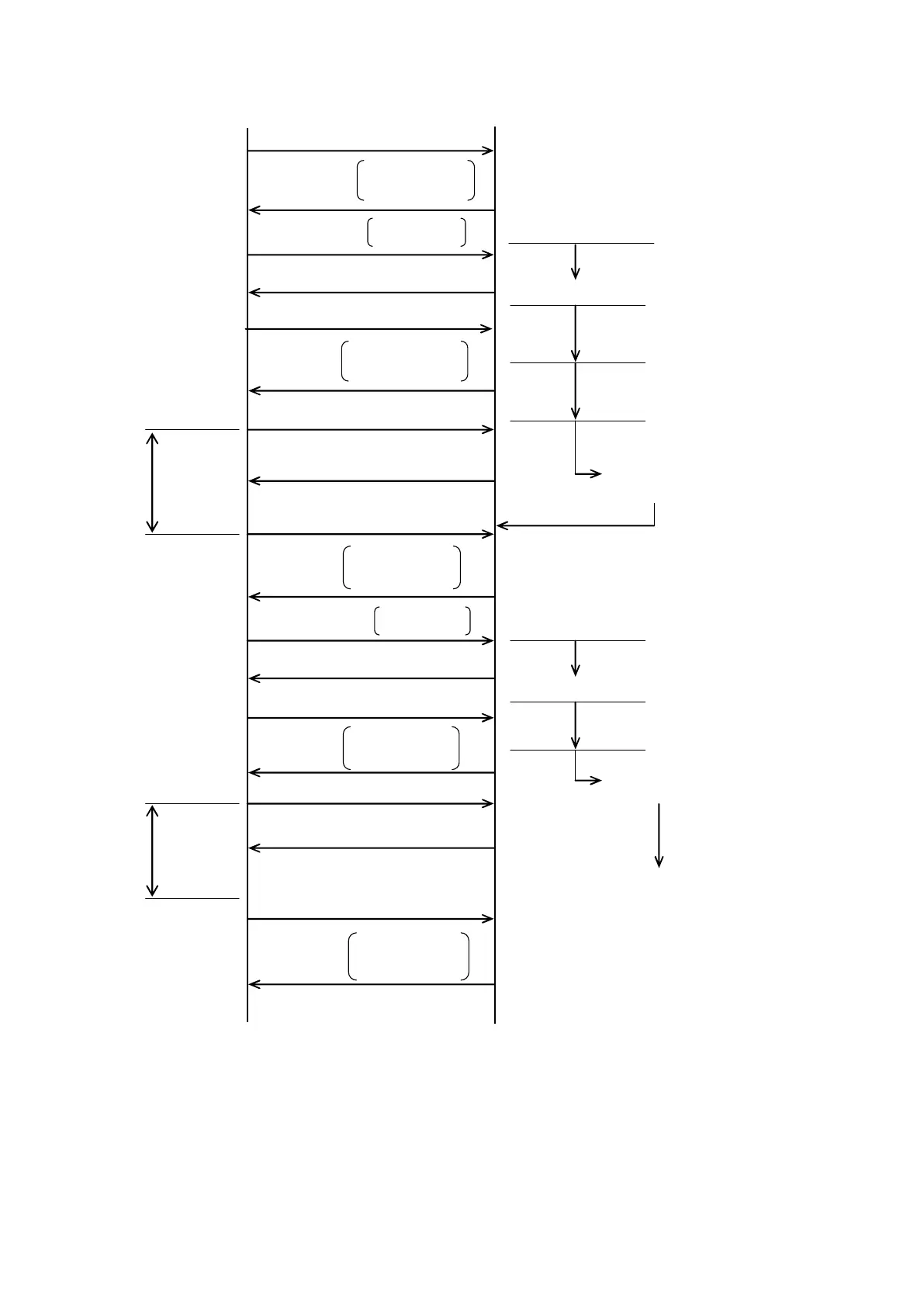

Host This product
ENQ
(Status request command)
ACK
(Printer Status: No error)
Status
ENQ
(Status request command)
ENQ
(Status request command)
CAN
(Cancel request command)
Print command
Status
Print command
Status
ENQ
(Status request command)
Status
Receiving/Analysis/Editing
Print operation
Print 1st label
Print 2nd label
Print 3rd label
Receiving/Analysis/Editing
Paper end occurred
Print 1st label
CAN
(Cancel request command)
Clear receive buffer
Clear print quantity
NAK
(Printer Status: Error occured)
Print operation
Print 2nd label
500 ms<
500 ms<
Clear receive buffer
Clear print quantity
(Status request command)
Status
ID No.=[13]
Status=Printing
Print q’ty=[000100]
Job name=[SATO]
ID No.=[SPACE]
Status=Wait for Receive
Print q’ty=[000000]
Job name=[SPACE]
ID No.=[12]
Print q’ty=50
Job name=[SATO]
ACK
(Printer Status: No error) *1
ID No.=[12]
Status=Printing
Print q’ty=[000050]
Job name=[SATO]
ID No.=[SPACE]
Status=Wait for Receive
Print q’ty=[000000]
Job name=[SPACE]
ID No.=[13]
Print q’ty=100
Job name=[SATO]
ID No.=[SPACE]
Status=Wait for Receive
Print q’ty=[000000]
Job name=[SPACE]
ACK
(Printer Status: No error) *1
ENQ
