SATO CL6NX Programming Reference

699
3) Sequence

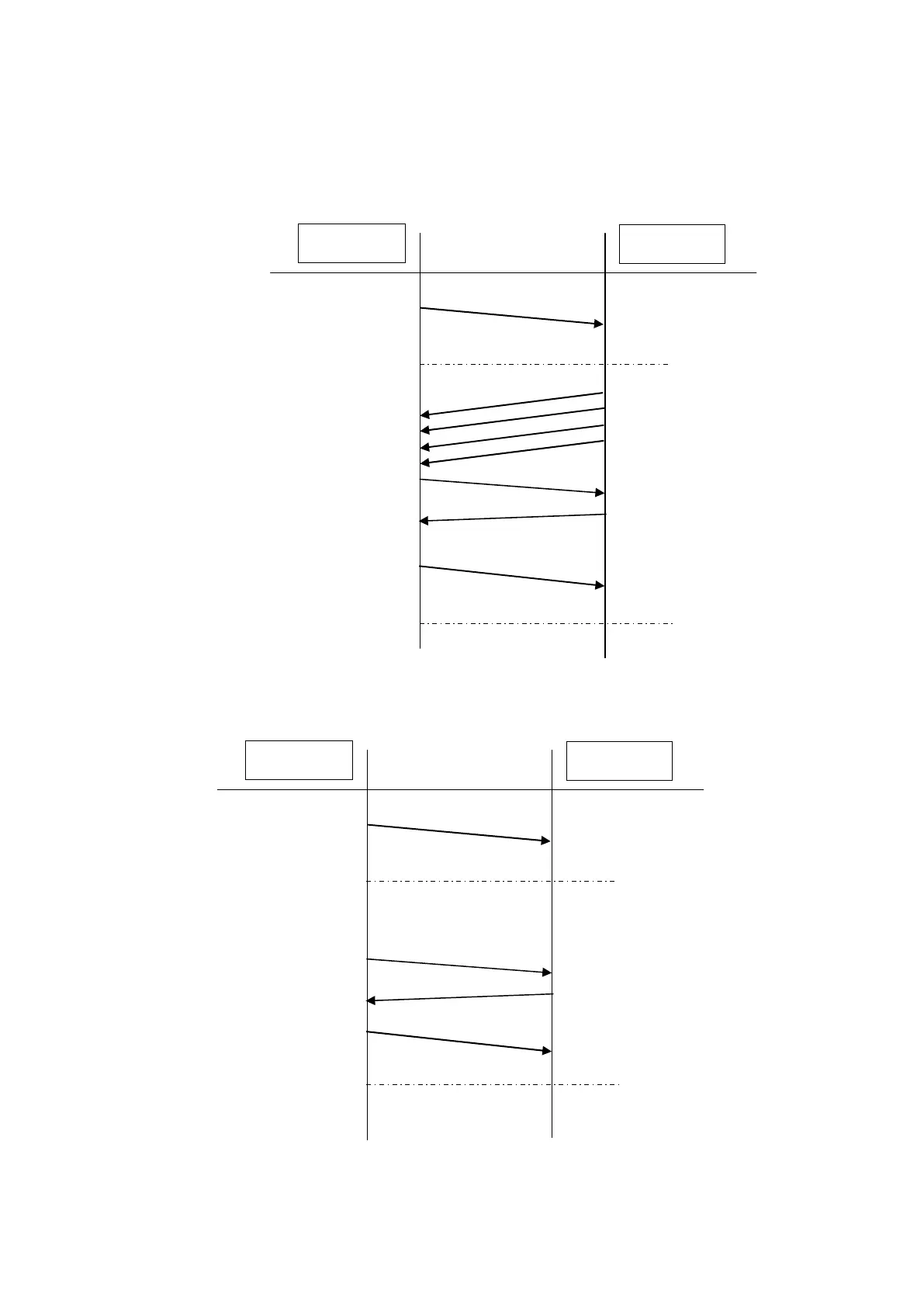

1. Status 4/ENQ response mode (2 port connection or 1 port connection)
Status 4/ Cyclic response mode (2 port connection or 1 port connection)
Output print status in constant period (500ms-1000ms interval)
The latest Printer Status is returned after printer receives status request command (ENQ:05H)
from host.
LISTEN
CONNECT
（Port1, Port2 ACCEPT
or Port3)
CONNECT success
Printer status(About 500-1000ms interval)
Port2 or Port3
Latest printer status
Printer status
(Port2 or Port3)
CLOSE
（Port1, Port2
or Port3) CLOSE
CONNECT End
LISTEN
HOST
PRINTER
connect
Status request
(Port1 or Port3)
(ENQ[05H])
2. Status 4/ENQ response mode (2 port connection or 1 port connection)
Printer sends the latest printer status after Status after receiving status request command
(ENQ:05H) from host.
LISTEN
CONNECT
(Port1, Port2 ACCEPT
or Port3)
CONNECT success
, The latest printer status
Printer status
(Port2, Port3)
CLOSE
(Port1, Port2 CLOSE
or Port3)
CONNECT End
LISTEN
HOST
PRINTER
connect
Status request
(Port1, Port3)
(ENQ[05h])
3. Status 3, Status 5/ENQ response mode (1 port connection)
Printer sends ACK when printer receives print request from host and Printer Status is returned
when printer receives status request command (ENQ: 05H) from host.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
