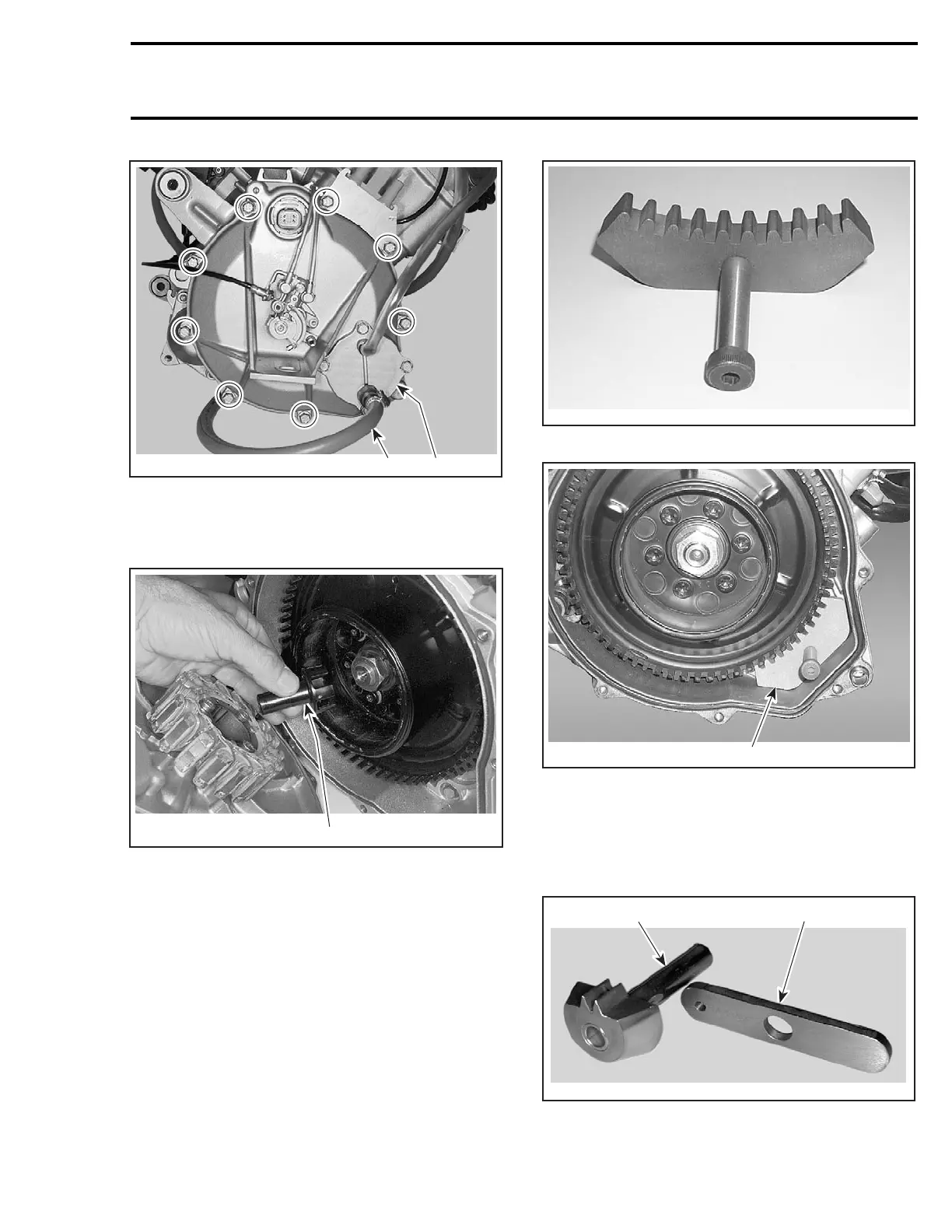

Section 04 ENGINE (2-STROKE)
Subsection 03 (MAGNETO SYSTEM)
F07D0JA
1
2
787 RFI ENGINES
1. Disconnect water inlet hose
2. Heat exchanger cover
Remove oil pump shaft from magneto rotor nut.
1
F07D0IA
1. Oil pump shaft
Rotor and Ring Gear
Remove starter. Refer to STARTING SYSTEM.
NOTE: Crankshaft can also be locked by using the
PTO flywheel extractor tool. For procedure, refer
to BOTTOM END.
Lock ring gear using special tool (P/N 529 035
846).
F15B01A
SPECIAL TOOL (P/N 529 035 846)
1
F15D0AA
1. Special tool (P/N 529 035 846)
Remove crankshaft position sensor no. 18 before
removing the ring gear.
Alternatively, you can lock ring gear using special
tool assembly (P/N 295 000 155).
F01B26A
1
2
1. Ring gear blocking tool (P/N 295 000 134)
2. Retaining plate (P/N 295 000 154)
smr2004-Complete Line Up 89
