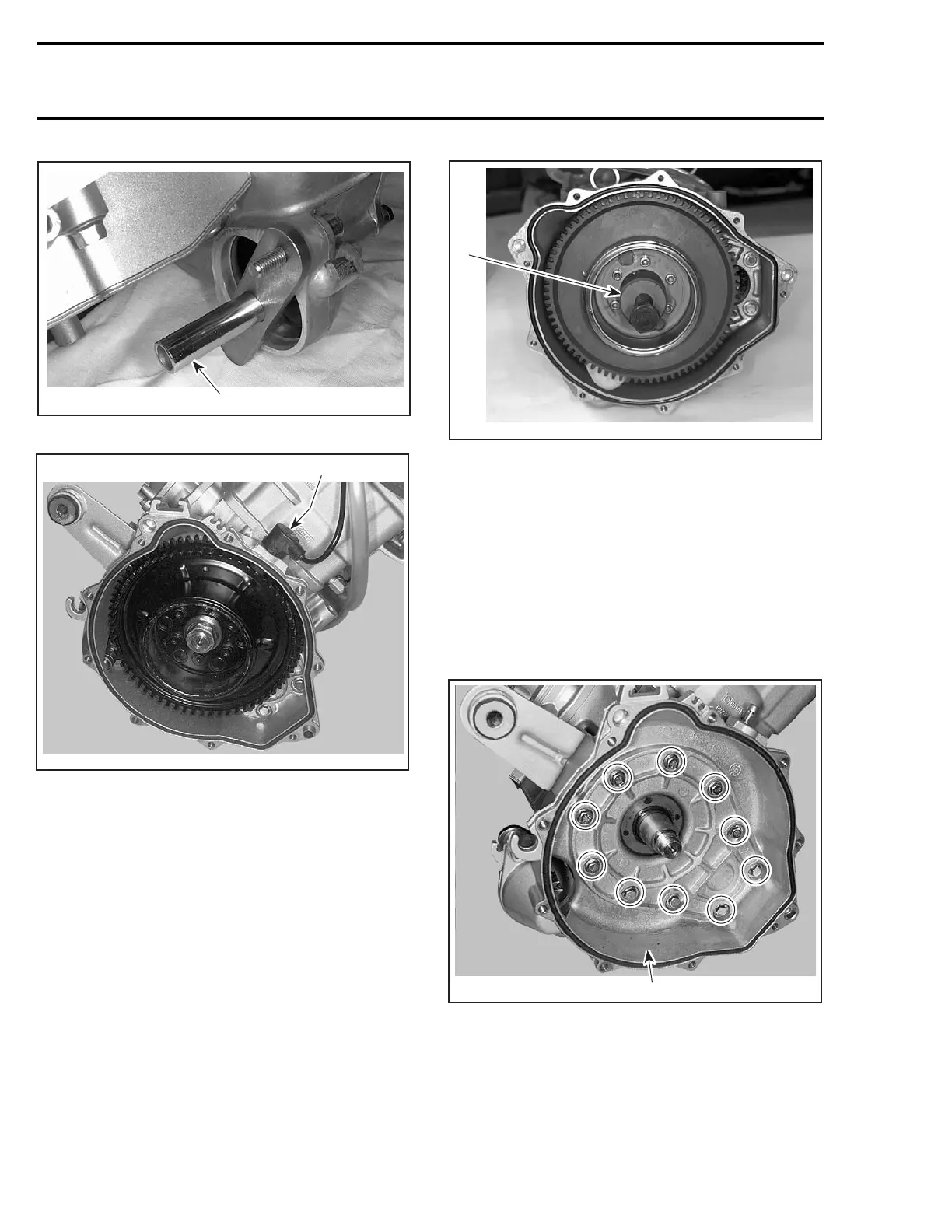

Section 04 ENGINE (2-STROKE)
Subsection 03 (MAGNETO SYSTEM)
F01D85A
1
1. Ring gear blocking tool with retaining plate
F07D0KA
1
1. Crankshaft position sensor
Using a suitable socket, unscrew retaining nut
no. 13 of magneto rotor COUNTERCLOCKWISE
when facing it.
Ring gear is easily freed from crankshaft with
puller (P/N 420 976 235) and crankshaft protective
cap (P/N 420 876 557).
Remove special tool locking ring gear.
Insert crankshaft protector to outer end of crank-
shaft and fully thread puller in magneto rotor.
F01D7YA
1
TYPICAL
1. Puller
Tighten puller screw and at the same time, tap on
screw head using a hammer to release magneto
rotor from its taper.
Magneto Housing
To remove magneto housing no. 5, starter has to
be removed. Refer to STARTING SYSTEM.
Unscrew retaining screws no. 19, then withdraw
housing.
F07D0LA
1
REMOVE SCREWS
1. Magneto housing
Stator Assembly
787 RFI Engines
Remove holding plate and withdraw plug from
cover.
90 smr2004-Complete Line Up
