Section 04 ENGINE (2-STROKE)
Subsection 03 (MAGNETO SYSTEM)

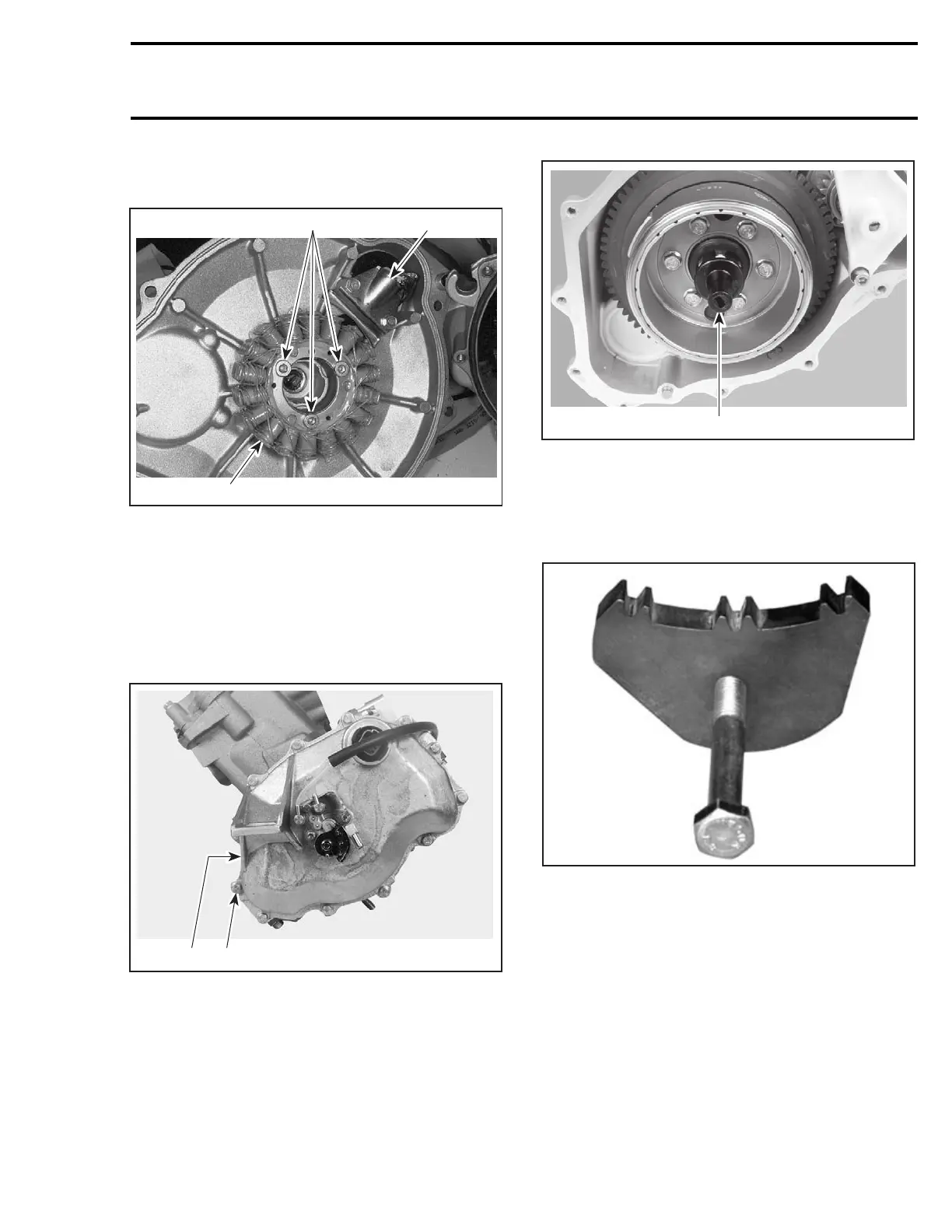

Unscrew bolts no. 20 and remove stator no. 9
from magneto cover.
F07D0MA
2
13
787 RFI ENGINES
1. Holding plate
2. Stator assembly
3. Remove screws
947 DI Engines
Cover
Loosen screws no. 11. Remove engine magneto
cover no. 1.
F06D1RA
1
2
TYPICAL
1. Cover
2. Screw
Remove oil pump shaft from magneto rotor nut.
F06D23A
1
TYPICAL
1. Remove oil pump shaft
Rotor and Ring Gear
Lock ring gear using special tool (P/N 529 035
946).
F00B2WA
SPECIAL TOOL (P/N 529 035 946)
NOTE: Crankshaft can also be locked by using the
PTO flywheel remover tool. For procedure, refer
to BOTTOM END.
If necessary, the magneto rotor can be removed
without removing the ring gear and trigger wheel.
Remove the six screws no. 17.
smr2004-Complete Line Up 91
