Section 04 ENGINE (2-STROKE)

Subsection 03 (MAGNETO SYSTEM)

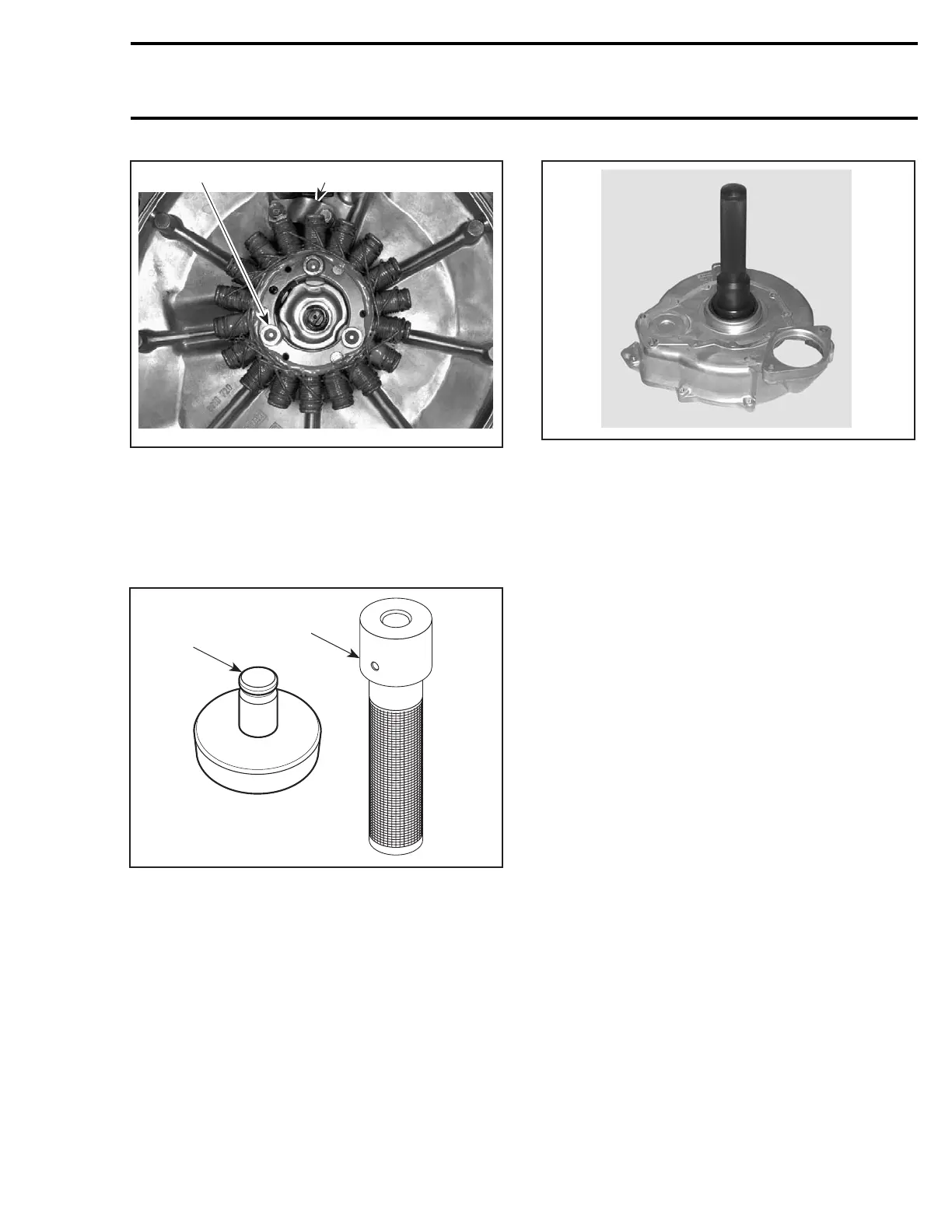

F06D0CA

1. Stator screws

2. Bracket

Magneto Housing

To install oil seal no. 28 of magneto housing no. 5,

use pusher(P/N 290 877 740) and handle (P/N 420

877 650).

F01B2NA

1. Pusher

2. Handle

F04D0CA

Install gasket no. 24 between magneto housing

and engine crankcase.

Install magneto housing and torque screws no. 19

to9N•m(80 lbf•in).

Rotor and Ring Gear

Apply Loctite 243 (blue) on crankshaft taper.

Install ring gear on crankshaft.

Apply Loctite 243 (blue) on nut no. 13.Installnut

with lock washer no. 14 and torque to 120 N•m

(89 lbf•ft).

CAUTION: Never use any type of impact

wrench at magneto installation.

Crankshaft Position Sensor

Install crankshaft position sensor no. 18 on mag-

neto housing. Torque screw to 9 N•m(80lbf•in).

NOTE: The crankshaft position sensor is not ad-

justable.

Cover

Before installing cover, make sure oil pump shaft

is properly positioned.

Before installation, properly install O-ring no. 25 in

engine magneto cover no. 1.

Apply Loctite 767 anti-seize compound on screws

no. 11. Torque screws in a criss-cross sequence

to9N•m(80lbf•in).

smr2004-Complete Line Up 95
