Section 04 ENGINE (2-STROKE)
Subsection 04 (TOP END)
F01D8KA
1
32

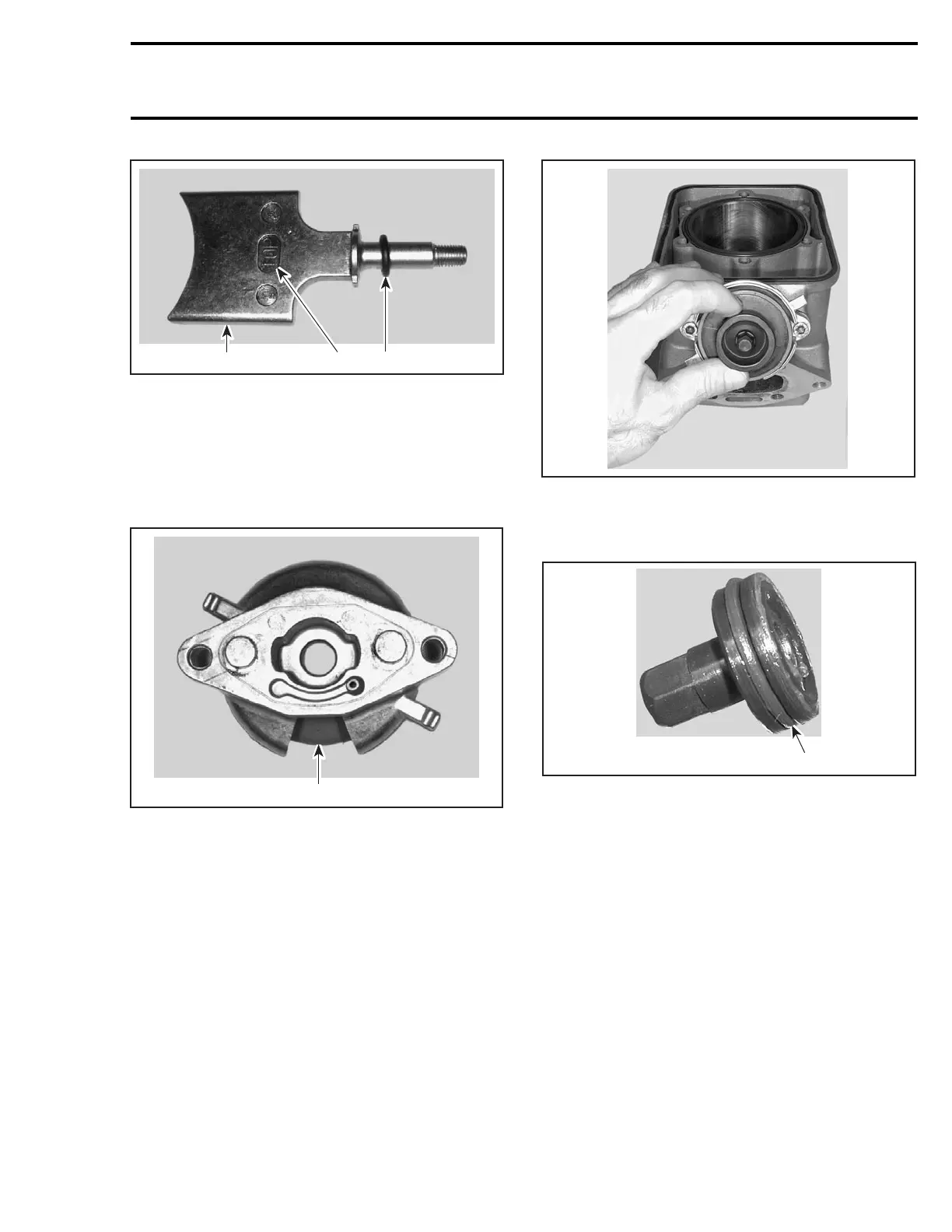

1. Sliding valve
2. O-ring
3. TOP
Install a new gasket no. 24. It must be installed
at the same time as the sliding valve no. 22.
Position the valve housing no. 25 onto the cylinder
so that its opening is toward the bottom.
F01D8JB
1
1. Bottom of valve housing
When the valve is mounted onto the cylinder,
move the valve piston no. 20 to ensure the sliding
valve no. 22 moves easily and does not stick.
F01D8LA
947 DI Engines
Check the piston valve O-ring. Replace if neces-
sary.
F12D0ZA
1
1. Piston valve O-ring
Check the sliding valve O-ring. Replace if neces-
sary.
