Section 04 ENGINE (2-STROKE)
Subsection 05 (BOTTOM END)

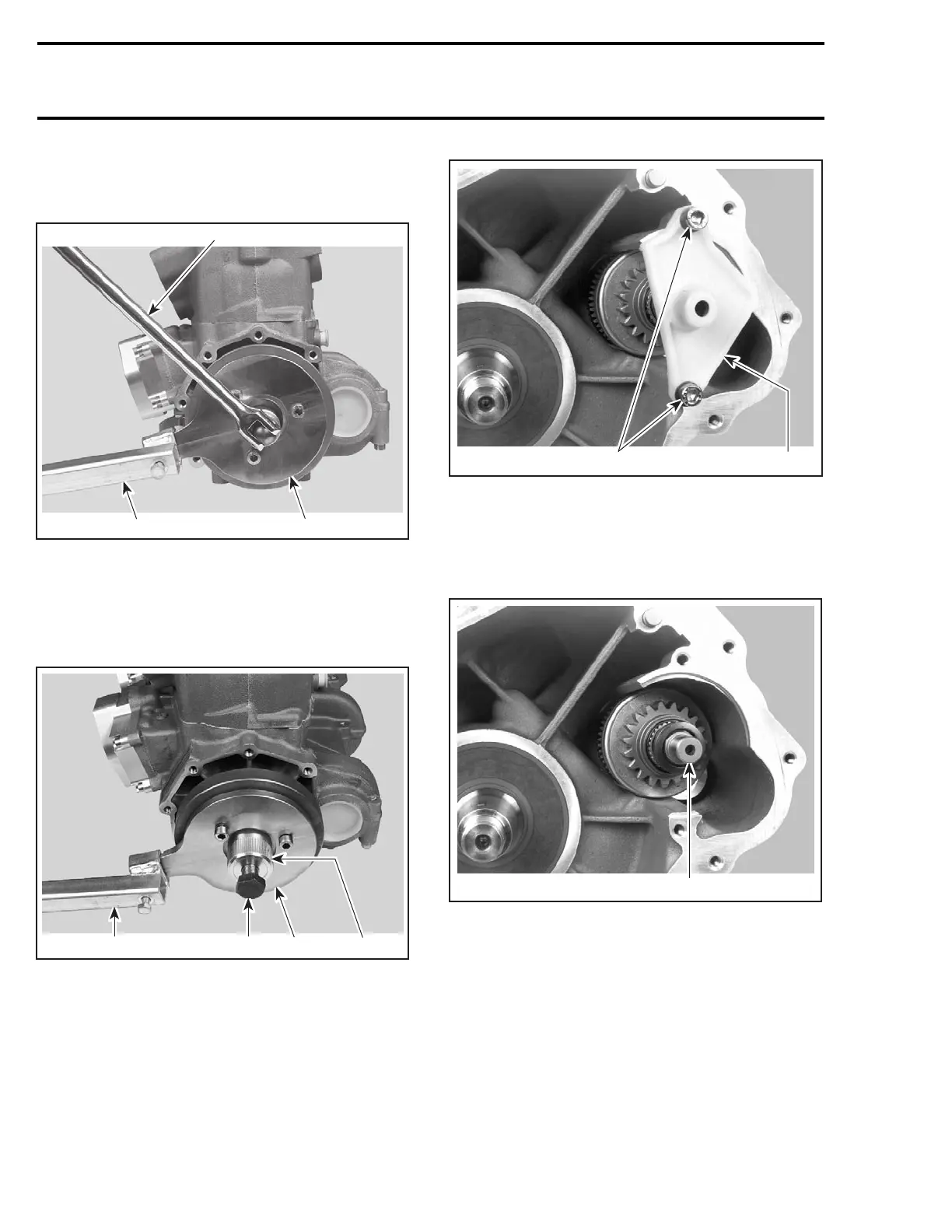

Loosen bolt no. 22 retaining the PTO flywheel to
the crankshaft using a suitable socket and breaker
bar.
F06D38A
3
12
1. Puller plate
2. Extension handle
3. Loosen bolt with socket and breaker bar
Remove the PTO flywheel using puller plate
(P/N 529 035 533) and puller (P/N 529 035 547)
and bolt (P/N 529 035 549).
F06D39A
2
43
1
1. Puller plate
2. Puller
3. Bolt
4. Extension handle
Starter Drive Assembly
947 DI Engines Only
Loosen 2 Allen screws no. 24 retaining starter
drive cover no. 25.
F06D1CA
12
1. Cover
2. Allen screw
Remove starter drive cover no. 25 and spring
no. 9.
Remove starter drive assembly no. 27.
F06D1DA
1
TYPICAL — 947 DI ENGINES
1. Starter drive assembly
Reed Valve
947 DI Engines Only
Remove reed valves no. 28 from crankcase.
