Section 05 ENGINE (4-TEC)

Subsection 02 (INTAKE SYSTEM)

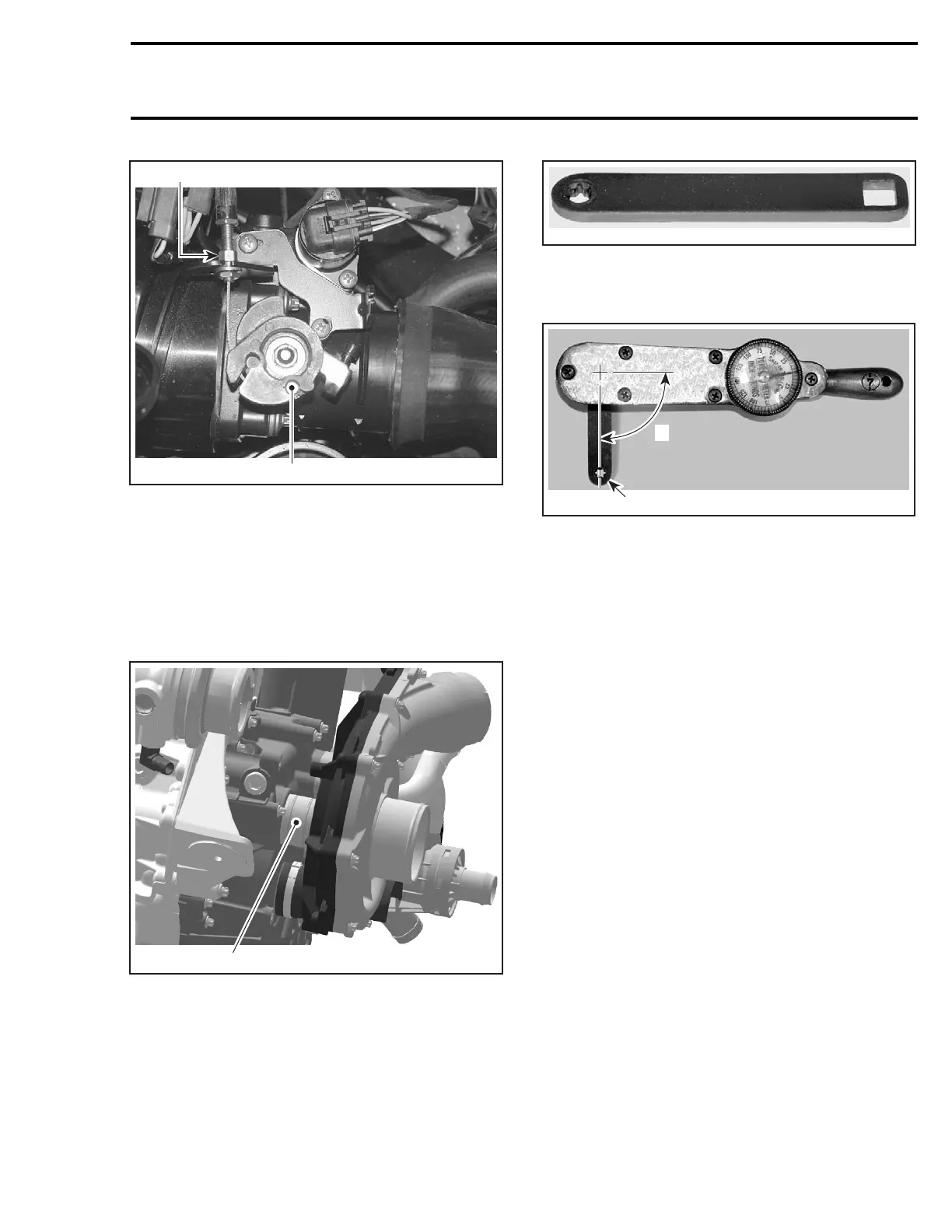

F19D0CA

4-TEC SUPERCHARGED ENGINES

1. Cablepositioninbracket

2. Cable barrel position in cam

Supercharger

4-TEC Supercharged Engines

Sealing surface between supercharger and PTO

housing has to be greased with Super Lube grease

(P/N 293 550 030).

R1503motr247A

1. Super Lube grease

Install supercharger ass'y on PTO housing. Apply

Loctite 243 (blue) on the retaining screws.

Torquescrewsto10N•m(89lbf•in).

To tighten and torque the upp

er screw, use the

Torx adapter (P/N 529 035 9

38).

F00B20A

Ensure to install the tool perpendicularly (90°)to

torque wrench to apply the proper torque to the

screw.

F00B1UA

1. Tool perpendicular (90°)totorquewrench

A. 90°

CAUTION: Not installing the tool as shown will

change the torque applied to the screw. Proper

torque and tightening sequence are important.

After complete installation of the supercharger

ass'y the slipping moment has to be rechecked.

Refer to SLIPPING MOMENT INSPECTION above

in this section.

Finalizing the Installation

Readjust throttle cable and reset the TPS using the

VCK. Refer to ENGINE MANAGEMENT section.

When reinstalling exhaust system components,

validate LH muffler/exhaust pipe alignment with

exhaust manifold. Refer to EXHAUST SYSTEM.

smr2004-Complete Line Up 207
