Section 05 ENGINE (4-TEC)
Subsection 06 (LUBRICATION SYSTEM)
1
R1503motr121A
2

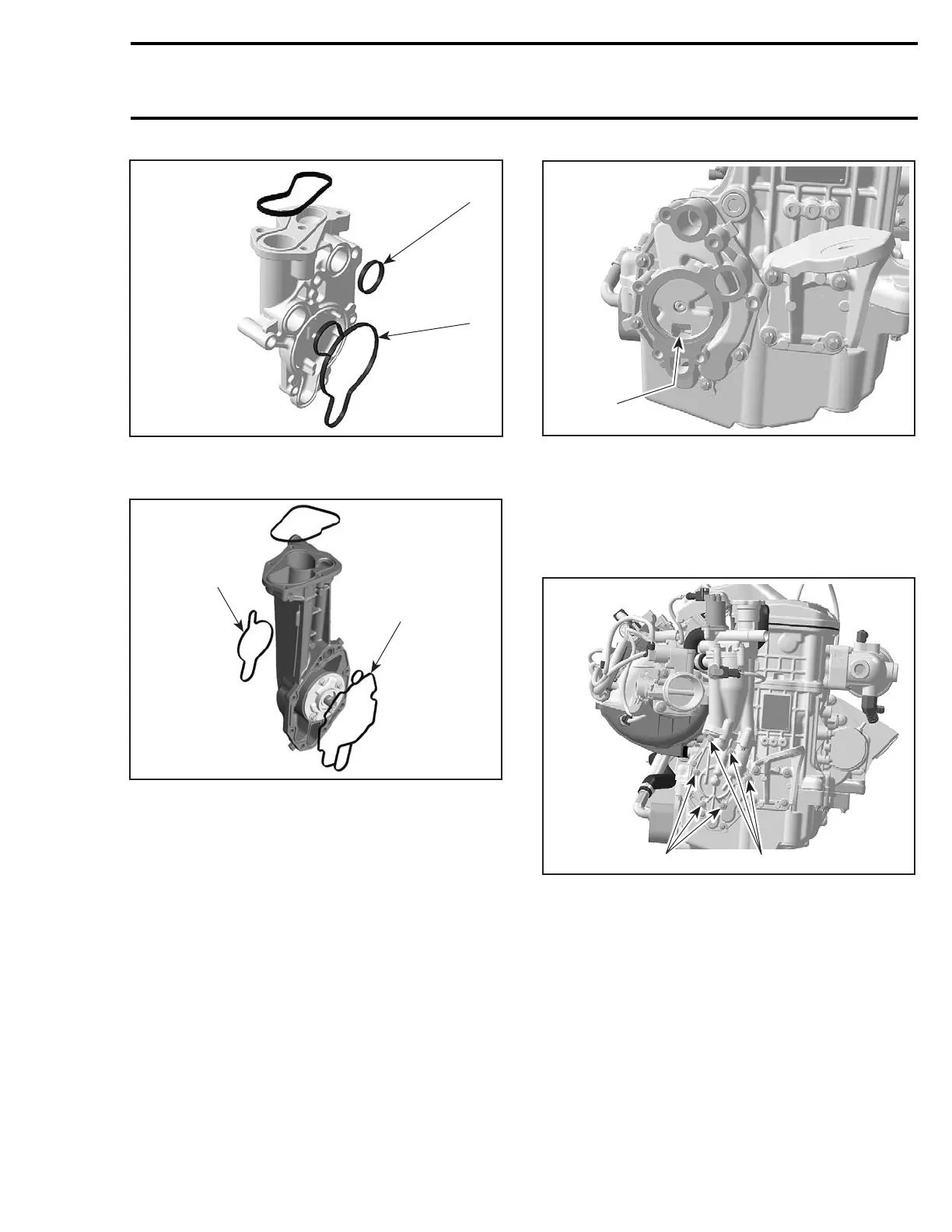

TYPICAL — GTX 4-TEC ENGINES
1. O-ring
2. Rubber ring gasket
1
2
R1503motr371A
TYPICAL — RXP 4-TEC ENGINES
1. Gasket
2. Rubber ring gasket
If rubber rings are brittle, cracked or hard, replace
them.
Clean both contact surfaces of oil strainer cover.
Check and clean the oil inlet and outlet area for dirt
and other contaminations.
1
R1503motr122A
TYPICAL
1. Oil inlet to the oil pump
Installation
For installation, reverse the removal procedure.
Position screws according to their length as
shown.
1
R1503motr119A
2
TYPICAL
1. Screws M6 x 25
2. Screws M6 x 85
Torquesuctionpumpcoverscrewsto10N•m
(89 lbf•in) as per sequence illustrated below. Ap-
ply Loctite 243 on threads.
smr2004-Complete Line Up 243
