Section 05 ENGINE (4-TEC)
Subsection 06 (LUBRICATION SYSTEM)
WARNING
Wear safety glasses and work in a well venti-
lated area when working with strong chem-
ical products. Also wear suitable non-ab-
sorbent gloves to protect your hands.
– Remove suction pump cover with oil separator
ass'y.
– Remove TOPS valve no. 8 from oil separator
ass'y. Refer to TOPS VALVE in ENGINE MAN-
AGEMENT section.
– Completely disassemble oil separator ass'y.
Inspection
If O-rings and rubber rings are brittle, cracked or
hard, replace them.
Clean all contact surfaces of oil separator.
Check and clean the oil and blow-by channels for
dirt and other contaminations.
Installation
For installation, reverse the removal procedure.
Pay attention to the following details.

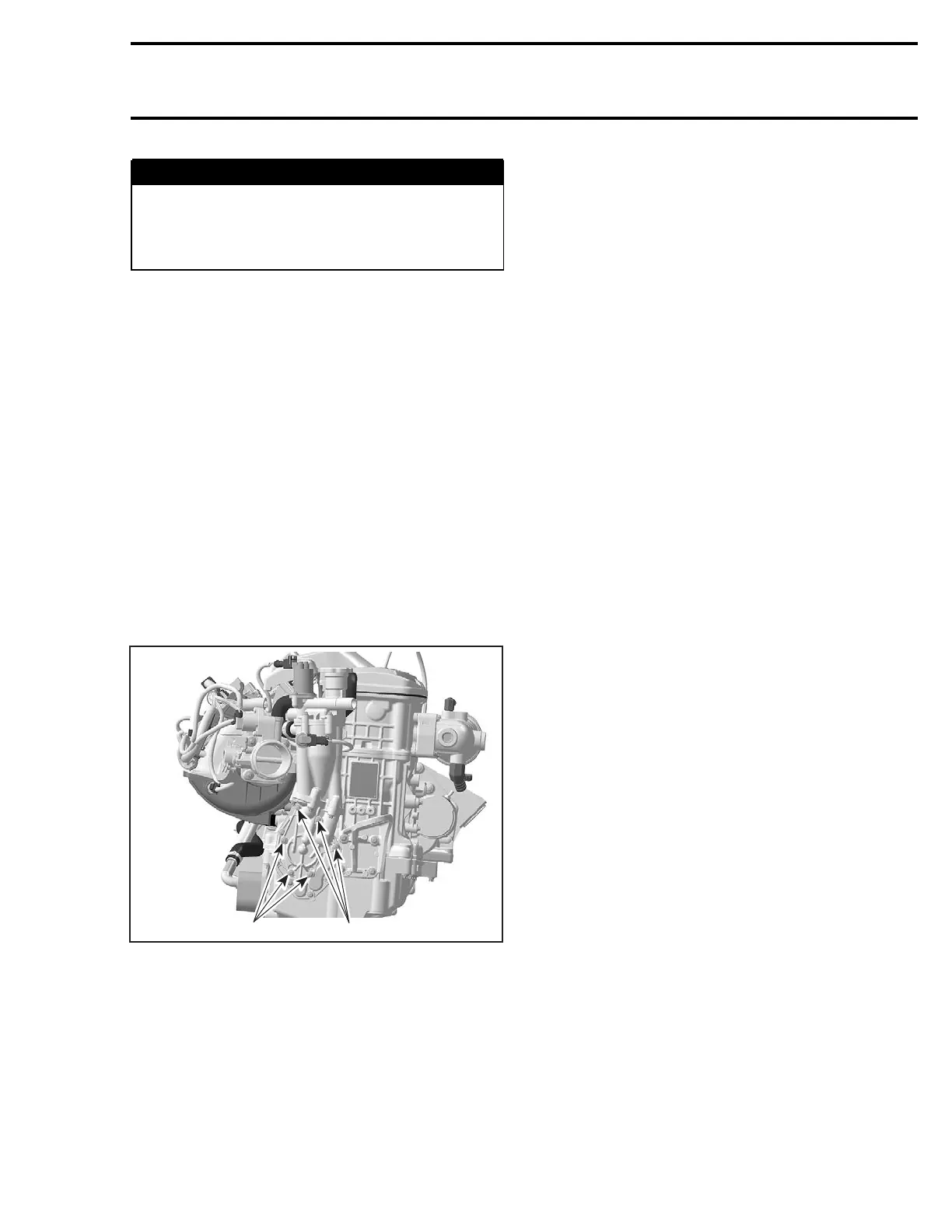

1
R1503motr119A
2
TYPICAL
1. Screws M6 x 25
2. Screws M6 x 85
Apply grease on O-rings and rubber rings.
Torque screws to 10 N•m(89lbf•in). Apply Loc-
tite 243 (blue) on threads.
smr2004-Complete Line Up 253
