Section 05 ENGINE (4-TEC)
Subsection 08 (ENGINE BLOCK)
1

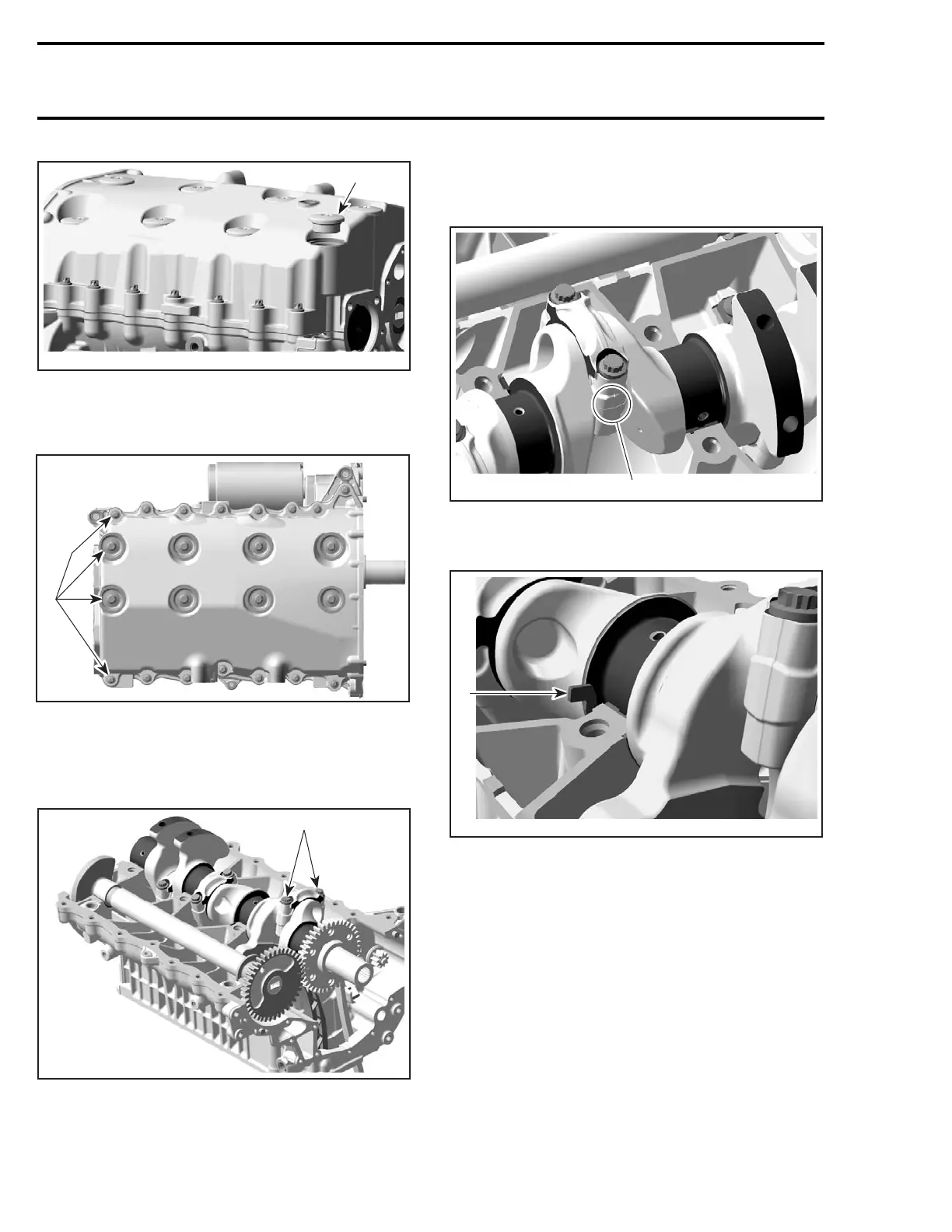

R1503motr05A
ENGINE UPSIDE DOWN
1. Oil tank plug screw with O-ring
– engine block screws no. 3 and no. 7
1
R1503motr109A
BOTTOM VIEW OF ENGINE
1. Screws
– bottom engine block half
– connecting rod screws
1
R1503motr08A
1. Connecting rod screws
NOTE: Before removing the connecting rod bear-
ing caps, mark them to remember the right posi-
tion when reassembling.
R1503motr07A
1
1. Mark on connecting rod
– thrust washers no. 4
R1503motr09A
1
1. Thrust washer
– crankshaft no. 5.
276 smr2004-Complete Line Up
