Section10FUELSYSTEM
Subsection 03 (CARBURETOR)
F02F1QA
1
2

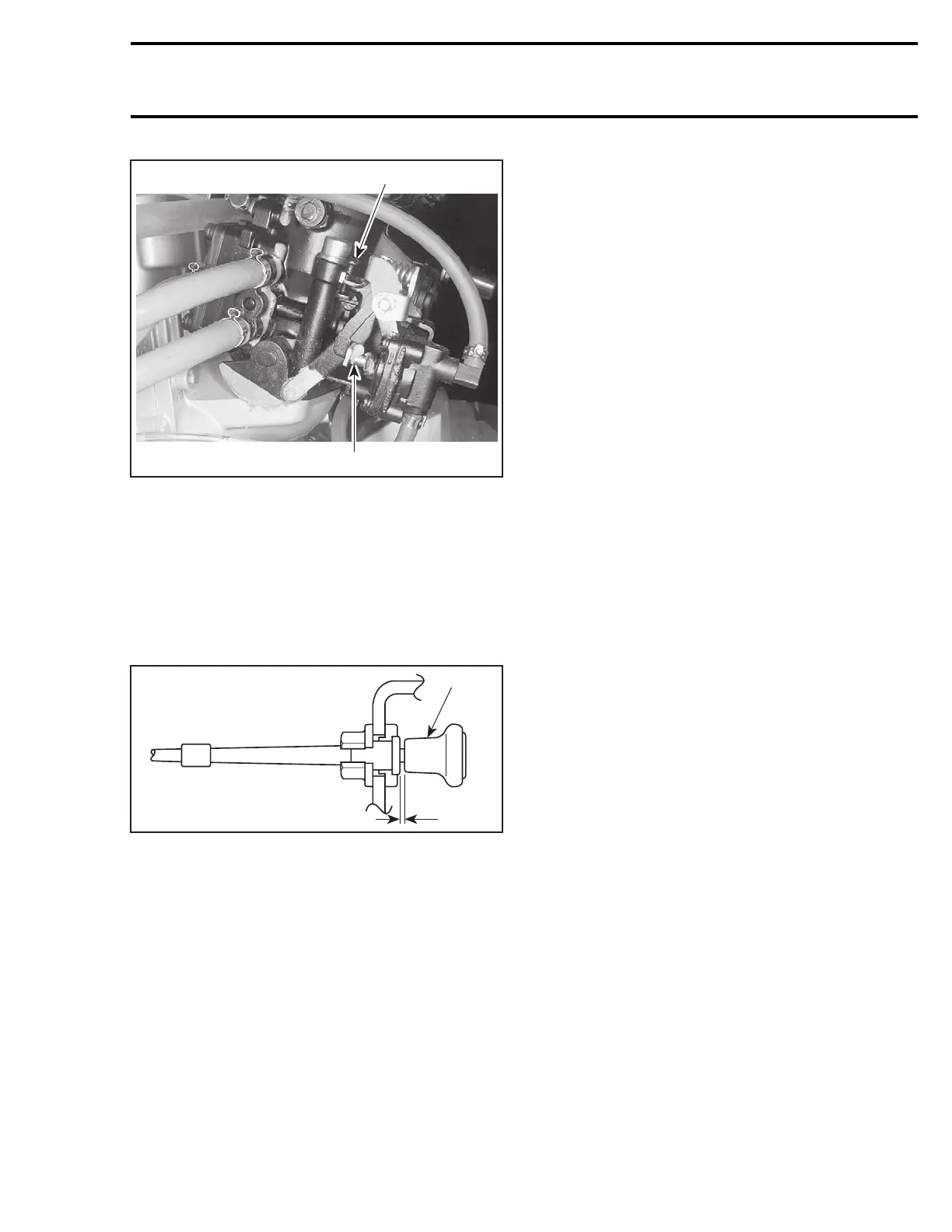

TYPICAL
1. Adjustment screw
2. Small gap
NOTE: Turning the adjustment screw clockwise
will increase the gap.
Choke Cable
Ensure choke lever has a free-play of 0.5 to
2.0 mm (1/64 to 5/64 in).
1
F07F02A
A
TYPICAL
1. Choke lever
A. Freeplayof0.5to2.0mm(1/64to5/64in)
To adjust, loosen jam nut on carburetor bracket,
then turn adjustment nut as necessary.
Tighten jam nut and recheck adjustment.
smr2004-Complete Line Up 527
