Section 11 LUBRICATION SYSTEM (2-STROKE)
Subsection 02 (OIL INJECTION PUMP)
F01D4SA
1
1

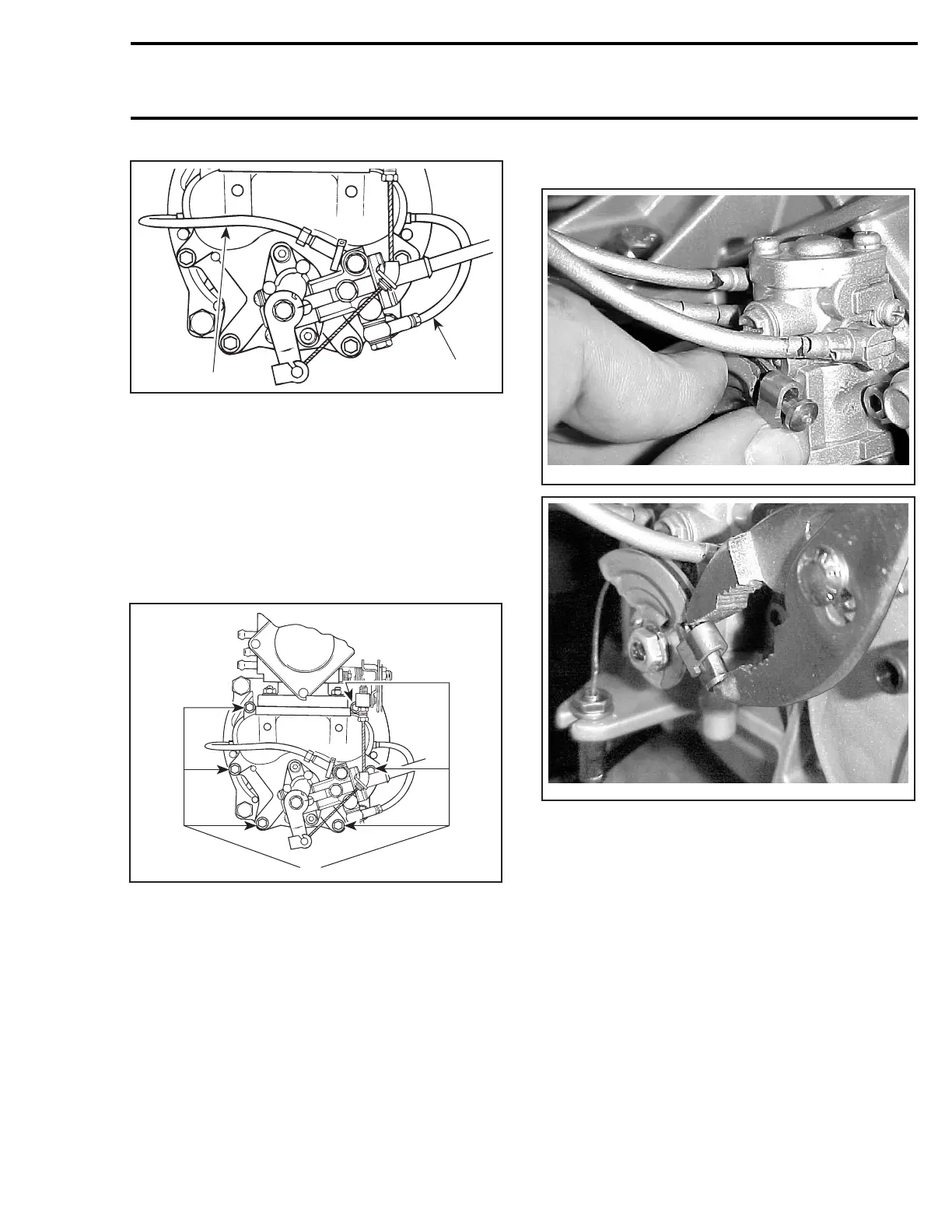

TYPICAL
1. Small oil line
Oil Pump Gear
Install gear no. 3 to oil injection pump shaft.
Torque lock nut no. 4 to6N•m(53lbf•in).
NOTE: Make sure 1 washer is installed on each
side of gear.
Install intake manifold no. 2 to rotary valve cover
and torque screws no. 5 to 10 N•m(89lbf•in).
F01D4RC
A
TYPICAL
A. 10 N•m(89lbf•in)
787 and 947 DI Engines
Oil Injection Pump and Shaft
Make sure shaft no. 8 is installed in crankshaft
end.
Install pump. Secure with flat washers and
screws no. 6. Torque to 6 N•m(53lbf•in).
Install oil injection pump cable.
947 DI Engines
F12G02A
F12G03A
