Section 12 ELECTRICAL SYSTEM

Subsection 02 (CHARGING SYSTEM)

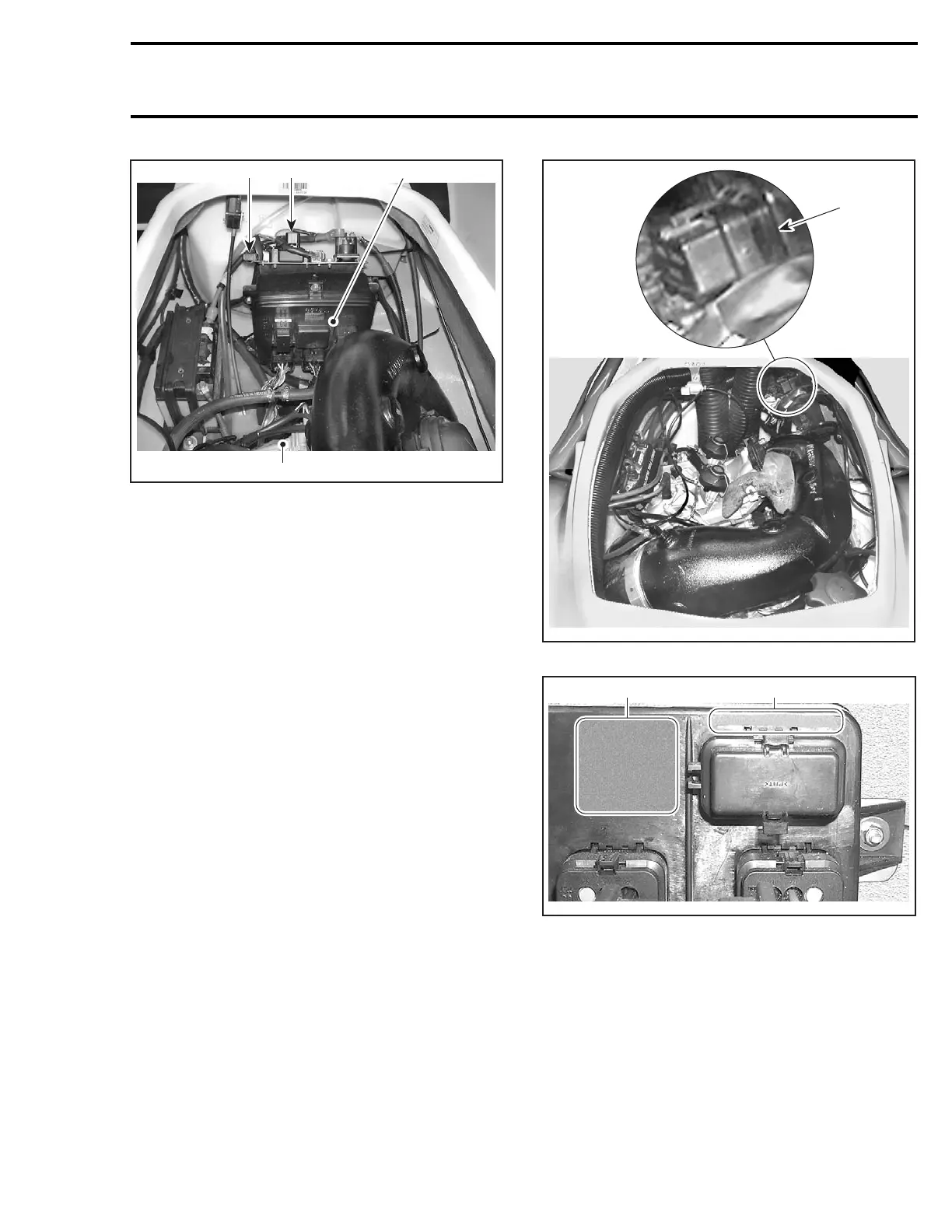

F17H06A

1. Engine

2. MPEM

3. Main fuse

4. Charging system fuse

DI Engines

The charging system is protected by 2 fuses.

A 25 A fuse is mounted on the MPEM and a 25 A

fuse is located in the rear electrical box on the

cut-off relay.

F08H0JA

1. MPEM

F1 : FP 15A

F2 : ACC 2A

F3 : REG 25A

F4 : VTS 7.5A

F5 : BAT 25A

F6 : INJ 15A

F1 F2 F3 F4 F5 F6

F18H06A

1. Fuse identification

2. Fuse description

REG: Regulator (charging system)

smr2004-Complete Line Up 561

www.SeaDooManuals.net
