Section 12 ELECTRICAL SYSTEM
Subsection 02 (CHARGING SYSTEM)
A32E2UA
PROPERLY CRIMPED WIRE
To verify, if the wire is properly crimped, apply
some pulling force on wire and the terminal at the
same time from both directions.
CAUTION: Never weld the wire to the terminal.
Welding can change the property of the wire
and it can become brittle and break.

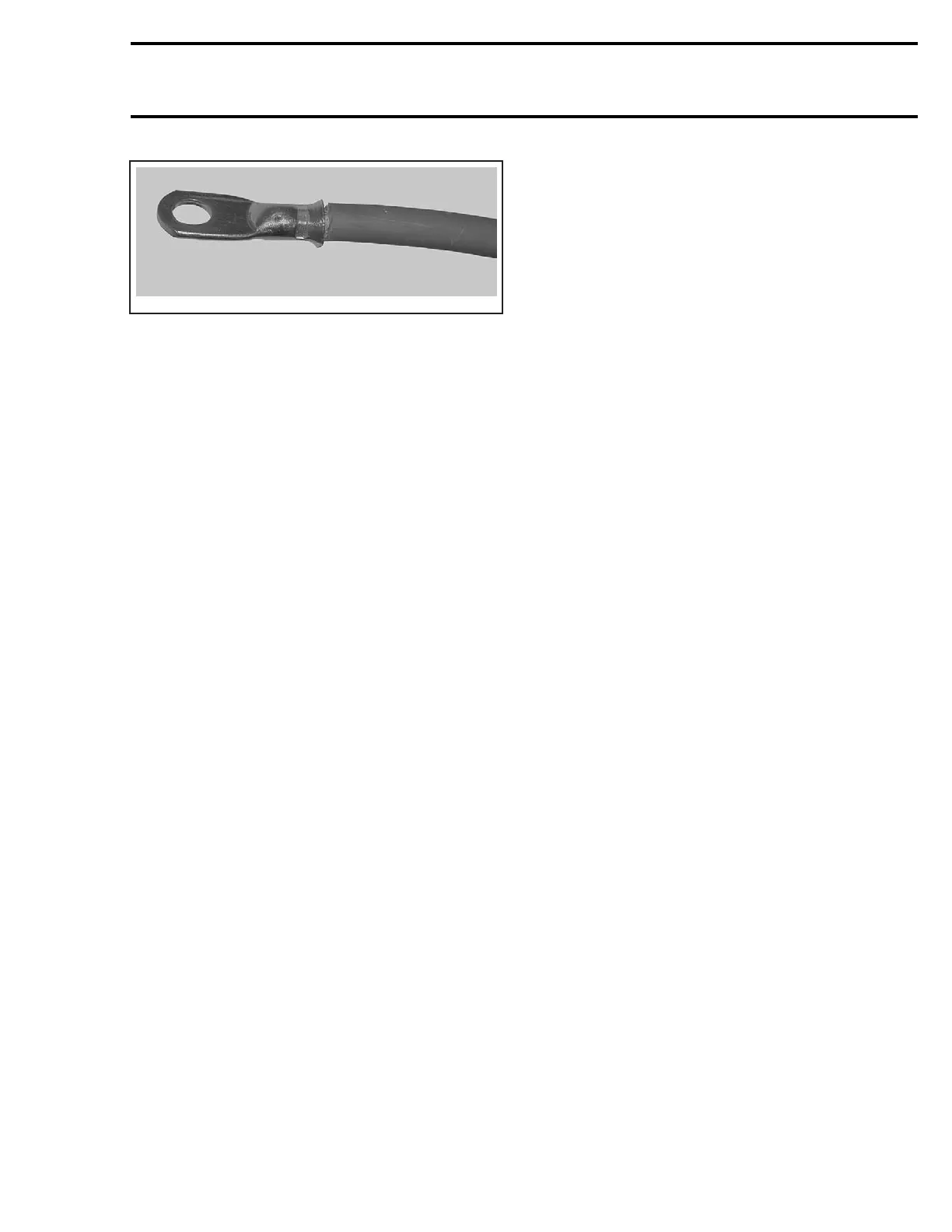

Install the protective heat shrink rubber tube
(P/N 278 001 692) on the terminal. Heat the heat
shrink rubber tube using the heat gun so that it
grasps the wire and the terminal.
CAUTION: Make sure that the protective heat
shrink rubber tube has been properly installed
and no part of wire is exposed.
