Section12ELECTRICALSYSTEM
Subsection 03 (STARTING SYSTEM)
A03E0EA
1
2
4
3

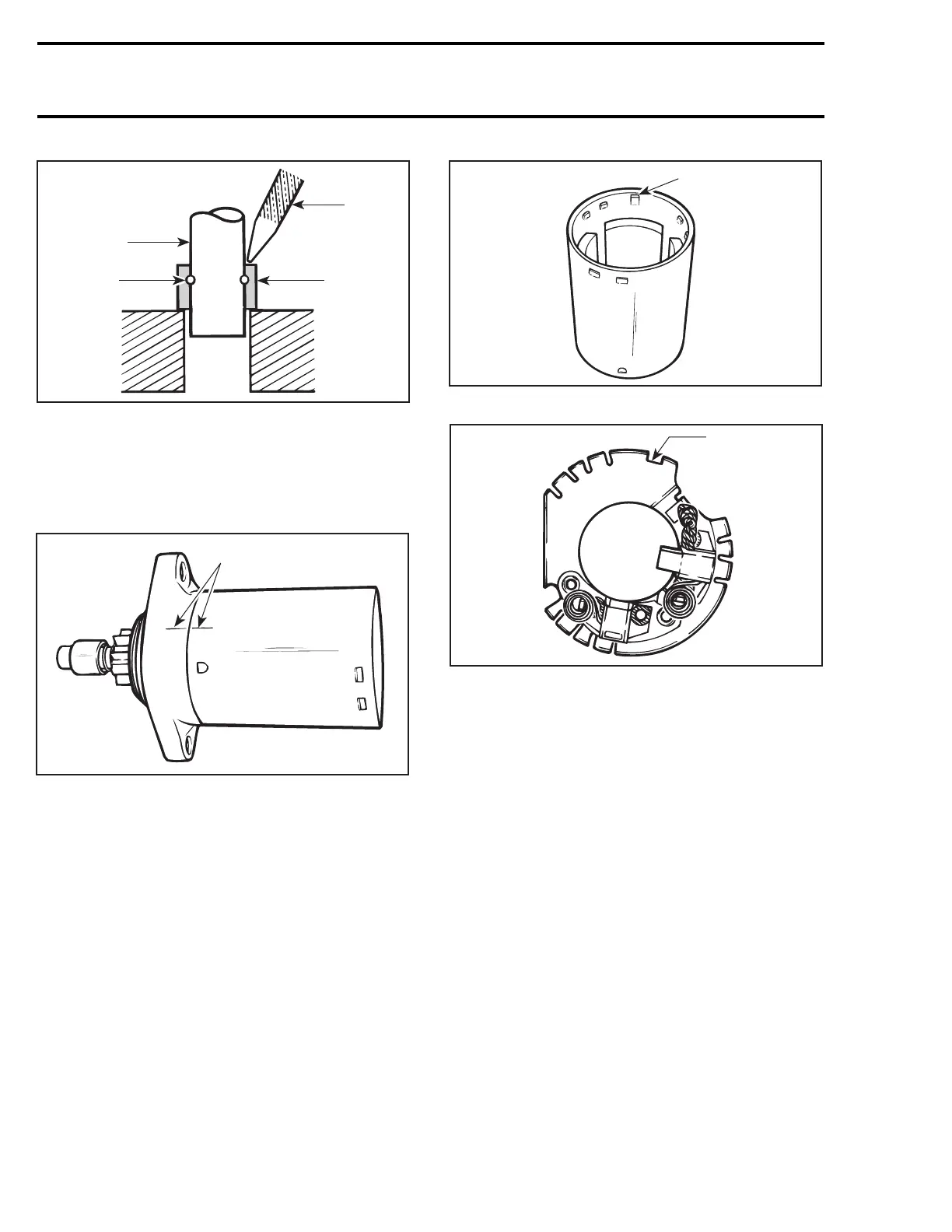

1. Armature shaft
2. Circlip
3. Pinion stop collar
4. Punch
Yoke Assembly and Clutch Housing
Align previously traced indexing marks.
F01H0QA
1
TYPICAL
1. Align marks
Open brushes no. 4 and slide over commutator.
Align end frame locating notch with yoke locating
protrusion and properly sit brush holder no. 2 into
yoke no. 1.
F01H0SA
1
1. Locating protrusion is the higher one
F01H0TA
1
1. Brush holder locating notch
To ease end frame installation, retain brush hold-
er with a small screwdriver while installing end
frame.
