Section12ELECTRICALSYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)
4-TEC Models
This is a multifunction gauge that supplies several
real time useful information to the driver.

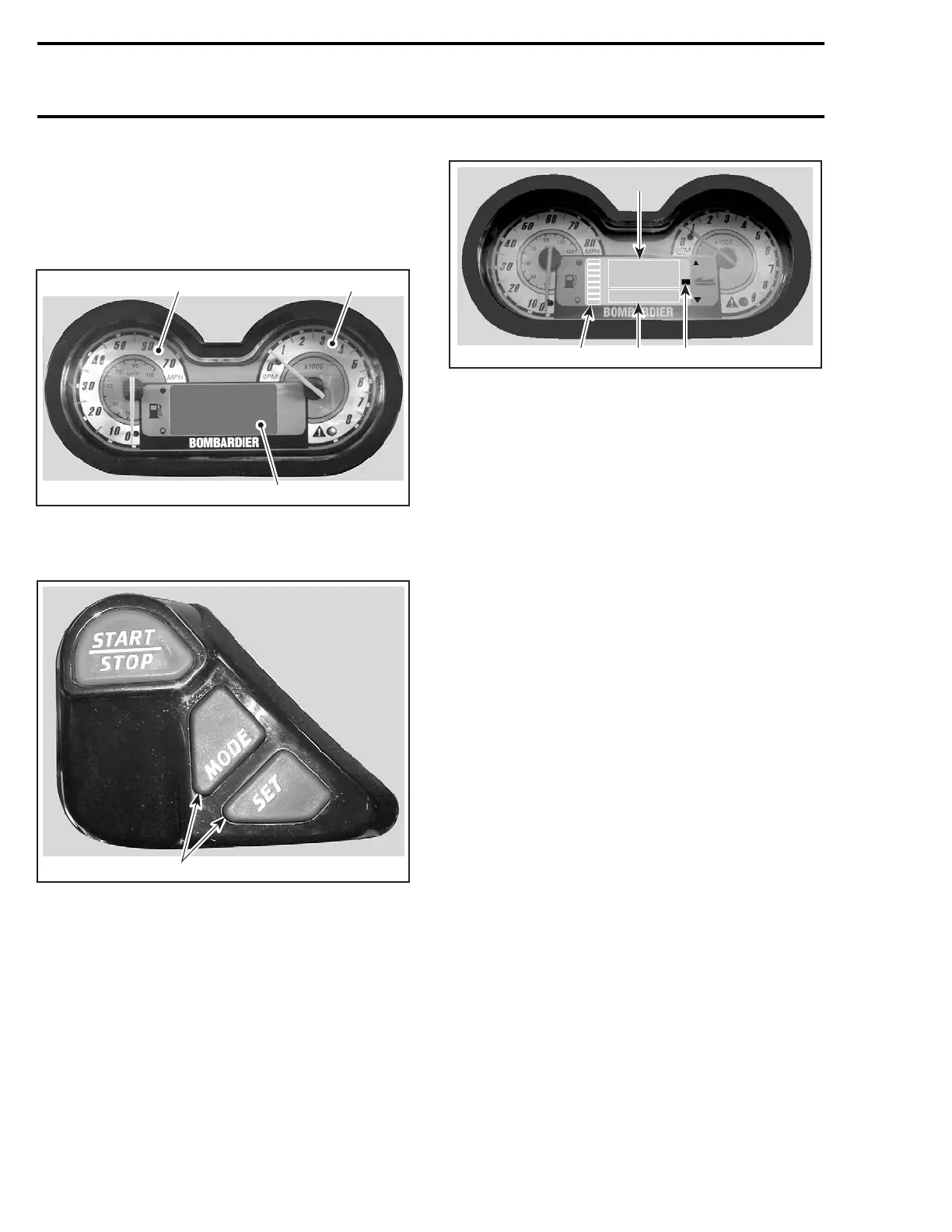

Components Description
F18H08A
3
1 2
TYPICAL
1. Analog speedometer
2. Analog tachometer
3. Display area
F18L09A
1
1. Function buttons
Display Area
The display area comprises the following.
F19L09A
1
3
4
2
TYPICAL
1. Fuel level indicator
2. Numerical section
3. Units and messages section
4. VTS position indicator (if so equipped)
Fuel Level Display
Bar gauge continuously indicates the amount of
fuel in the fuel tank while riding. A low-fuel con-
dition is also indicated in the information center
when only one bar is displayed. See MESSAGE
DISPLAY below.
Numerical Section
This section shows the digits of the function dis-
played such as the speedometer, trip hour meter
etc.
UnitsandMessagesSection
This section shows the units related to the num-
bers displayed. Units such as KMH (MPH), HOUR
etc. are displayed.
This section also display navigational and system
fault informations.
See the gauge functions and message lists below
for more details.
Gauge Functions
Digital Tachometer: Indicates the revolution per
minute (RPM) of the engine.
Digital Speedometer: Indicates the speed of the
watercraft in miles per hour (MPH) and kilometers
perhour(km/h).
Depth Gauge (if so equipped): It continuously
display the water depth under the hull within 0 to
50 meters (0 to 170 feet).
596 smr2004-Complete Line Up
