SeaDoo GTI User Manual

Section13PROPULSION
Subsection 01 (JET PUMP)

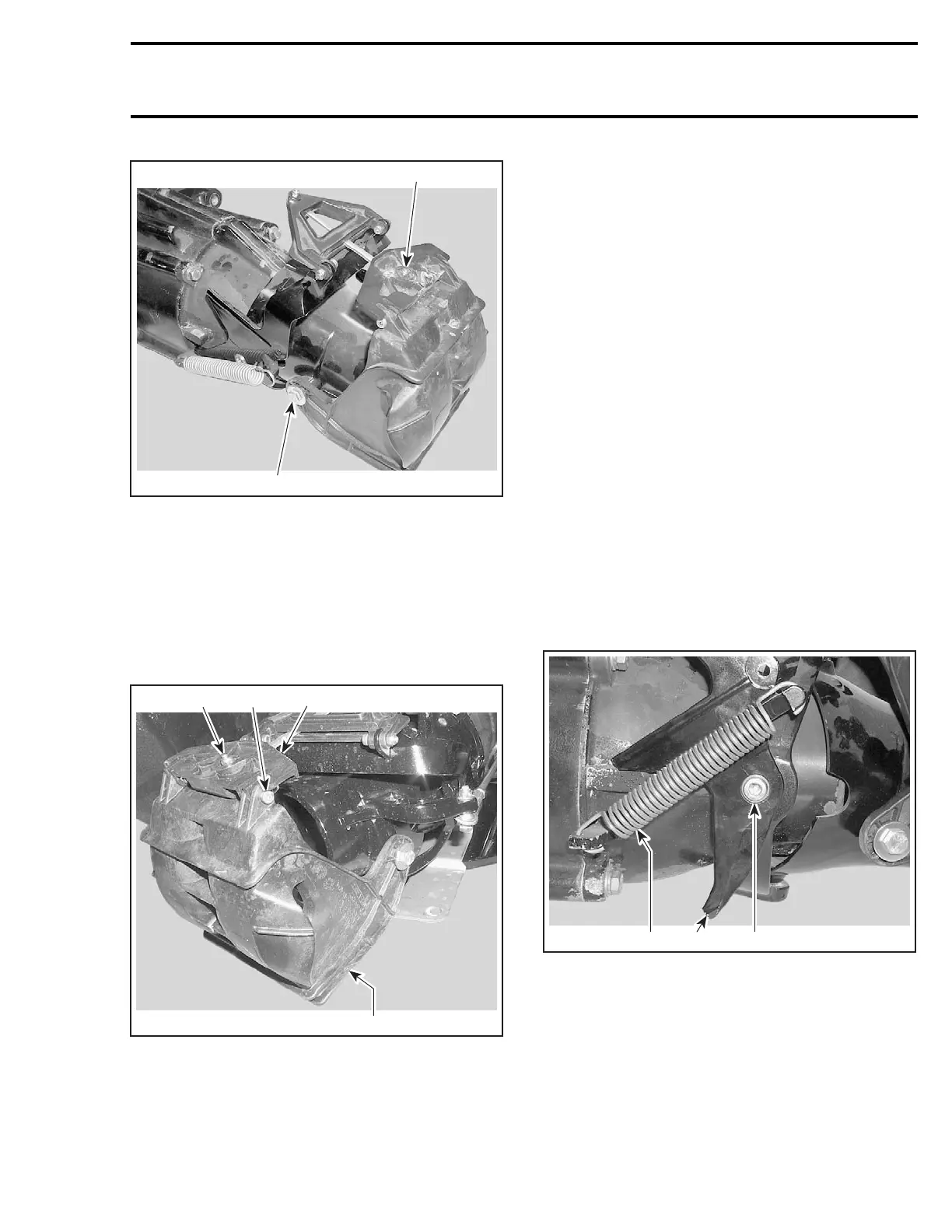

F16J04A
2
1
1. Pivot bolt
2. Reverse gate retaining bolt (each side)
Remove screws no. 29.
Pivot Support
All Models except XP DI
Remove reverse gate.
Unscrew pivot support bolts no. 25.
3
1
F16J05B
2
4
1. Pivot bolts
2. Pivot support
3. Reverse gate
4. Pivot support bolt
Remove pivot support.
Connecting Rod
Remove:
– reverse gate
– pivot bolt no. 26.
Withdraw connecting rod.
Pivot Triangle
Remove:
– reverse gate
– connecting rod
– pivot triangle bolts no. 31.
Withdraw pivot triangle no. 32.
Pivot Arm
Remove:
– reverse gate
– connecting rod
– reverse cable
– spring no. 30
– pivot arm bolts no. 23. Takenoteofbushing
size for reinstallation.
Withdraw pivot arm no. 34.
F16J06A
23 1
1. Pivot bolts (each side)
2. Spring
3. Pivot arm
Nozzle
All Models except XP DI
Disconnect steering cable from jet pump nozzle
no. 22.
smr2004-Complete Line Up 619
