Section 13 PROPULSION
Subsection 01 (JET PUMP)
NOTE: Trim ring has a tight fit; to install, insert
both sides at the same time, taking care not to
break plastic bushings. Carefully use a plastic tip
hammer if necessary. Make sure steering arm of
jet pump is on right side and trim arm is above
venturi.

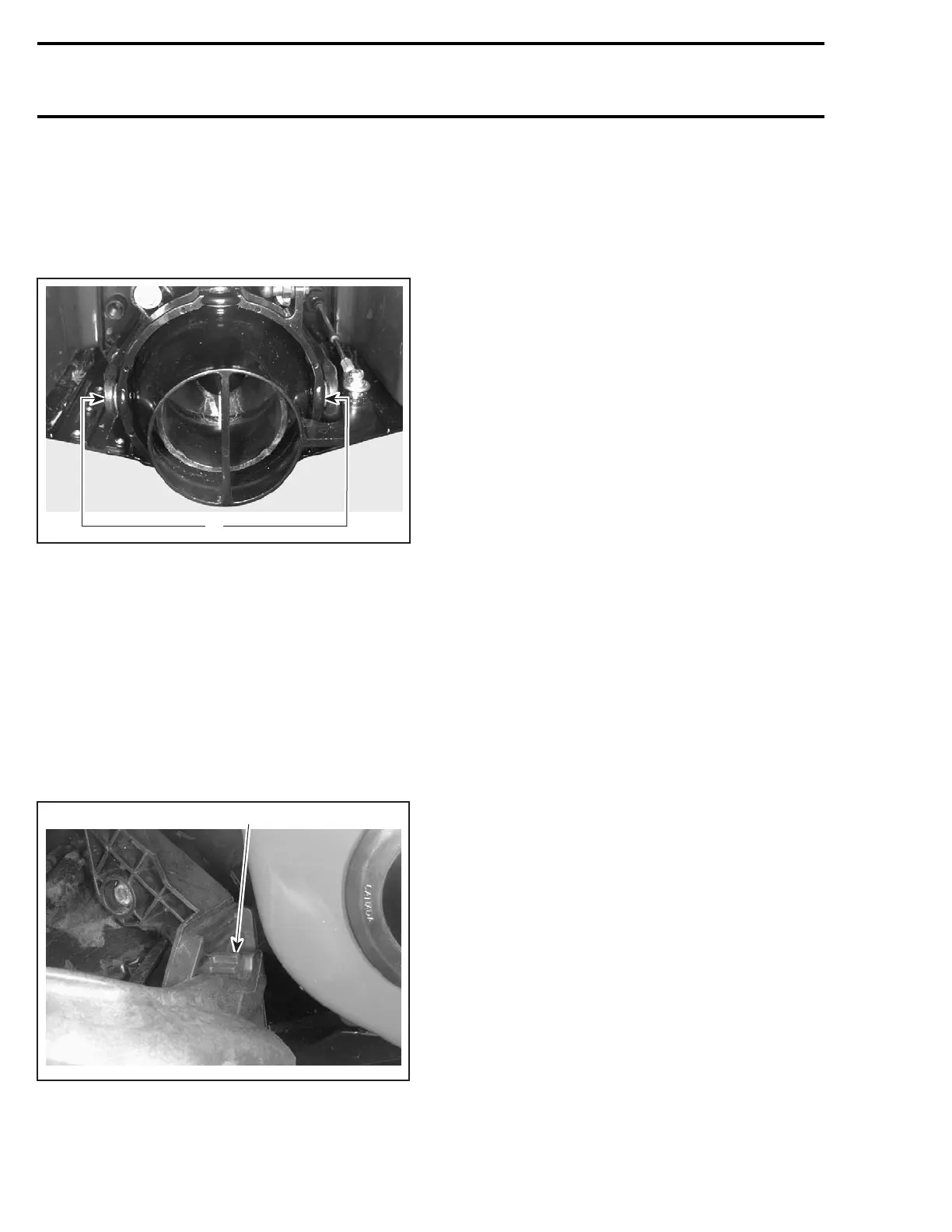

F01J5FA
1
1. Torque screws to 20 N•m(15lbf•ft)
Pivot Triangle (if so equipped)
Install head bolts toward inside.
NOTE: Make sure the pivot triangle turn freely.
Reverse Gate (if so equipped)
Install reverse gate with spacer and washer.
Torque to 20 N•m(15lbf•ft).
NOTE: When installing the reverse gate, pay at-
tentiontopositionitsleverbehindthereverse
gate support stopper.
F07J07A
1
1. Stopper
Steering Cable
Refer to STEERING SYSTEM.
Trim System
Refer to VARIABLE TRIM SYSTEM.
Reverse Cable
Refer to REVERSE SYSTEM.
