Section 13 PROPULSION

Subsection 01 (JET PUMP)

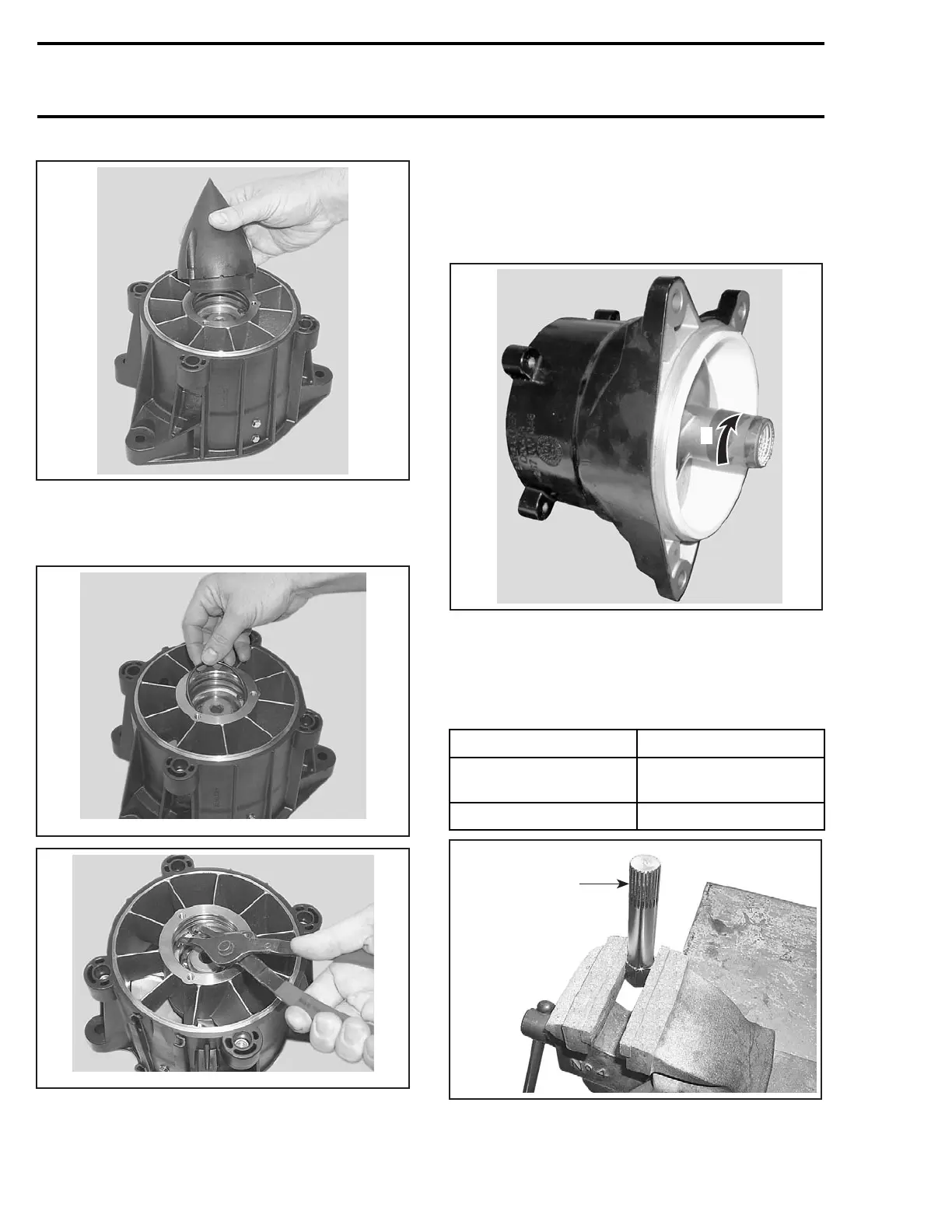

F18J0MA

Check for presence of water in cone and bearing.

If so, replace oil seal no. 7 and sleeve no. 14.

Remove both O-rings no. 20 and circlip.

F18J0NA

F18J0OA

Impeller

Remove ring no. 1 and impeller boot no. 2.

RXP Models

Unscrew boot no. 1 CLOCKWISE.

F19J06A

1. Unscrew clockwise

All Models

Replace ring or boot if damaged.

Mount impeller remover/installer in a vise.

MODEL TOOL P/N

GTX 4-TEC and

Supercharged

529 035 820

RXP 529 035 956

F18J0PB

1. Impeller remover/installer

642 smr2004-Complete Line Up
