Section13PROPULSION
Subsection 02 (DRIVE SYSTEM)
F18B04B
12

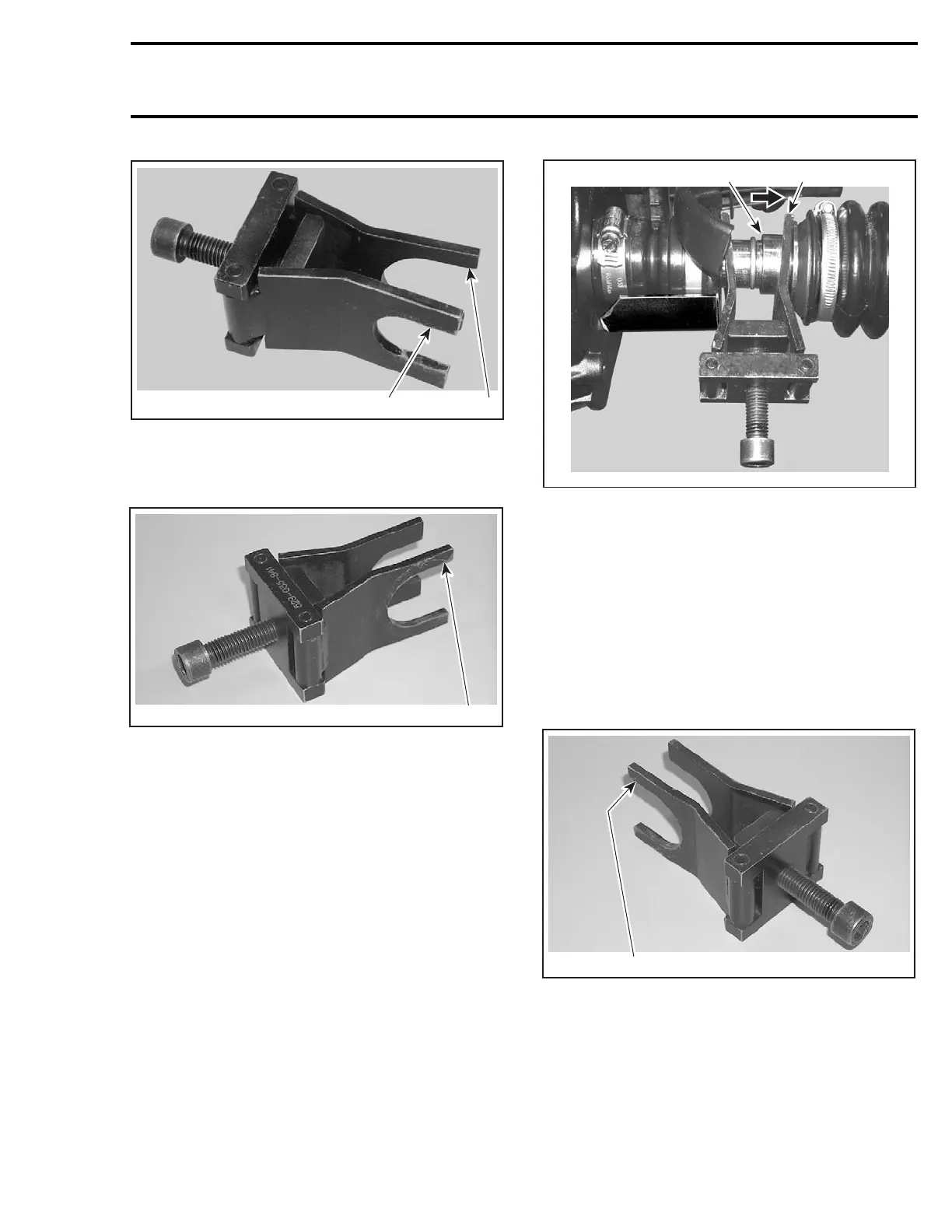

TYPICAL — DRIVE SHAFT/FLOATING RING TOOL
1. Small opening
2. Large opening
Install tool as shown.
1
F18I0NA
TYPICAL
1. Largest opening on through-hull fitting side
F18I06B
2 1
TYPICAL
1. Largest opening here
2. Floating ring
Turn screw clockwise so that the tool pushes the
floating ring rearwards to expose the circlip. Do
not remove circlip at this time.
NOTE: Thisstepisdonetoensurefloatingringis
free and not stuck on the drive shaft.
Remove drive shaft/floating ring tool and drive
shaft holder.
Reinstall drive shaft/floating ring tool as shown.
1
F18I0OA
TYPICAL
1. Largest opening on PTO seal side
smr2004-Complete Line Up 659
