Section 13 PROPULSION
Subsection 02 (DRIVE SYSTEM)
NOTE: If drive shaft does not enter into the PTO
seal, check engine alignment.
While someone is pushing drive shaft, slide float-
ingringrearwardandguidedriveshaftinPTOseal
assembly. It may be necessary to move PTO seal
assembly up and down to position it in the same
axis as the drive shaft.
When properly aligned, maintain PTO seal assem-
bly in the proper position and tap shaft end until it
bottoms against engine. At this time, the tell tale
MUST NOT be visible. This validate the correct
position.

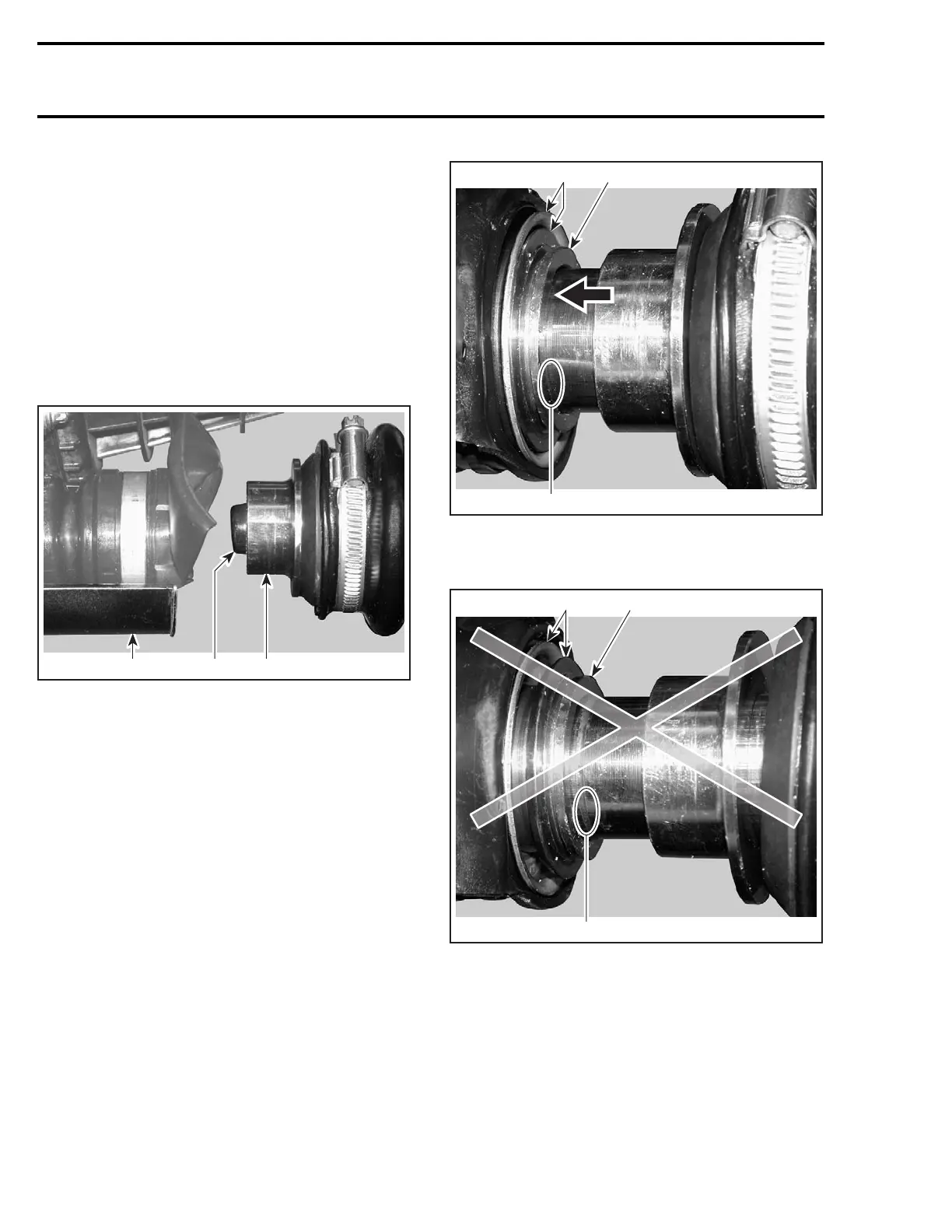

F18I0HA
123
1. PTO seal support
2. Drive shaft end
3. Insert floating ring on shaft end
3
F18I0IA
2
1
GOOD INSTALLATION
1. PTO seal assembly
2. Shaft pushed in, hiding tell tale groove
3. Inner sleeve flush with outer circumference
3
F18I0JA
2
1
WRONG INSTALLATION
1. PTO seal assembly
2. Tell tale groove visible
3. Inner sleeve NOT flush with outer circumference
Install drive shaft holder tool.
672 smr2004-Complete Line Up
