Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)

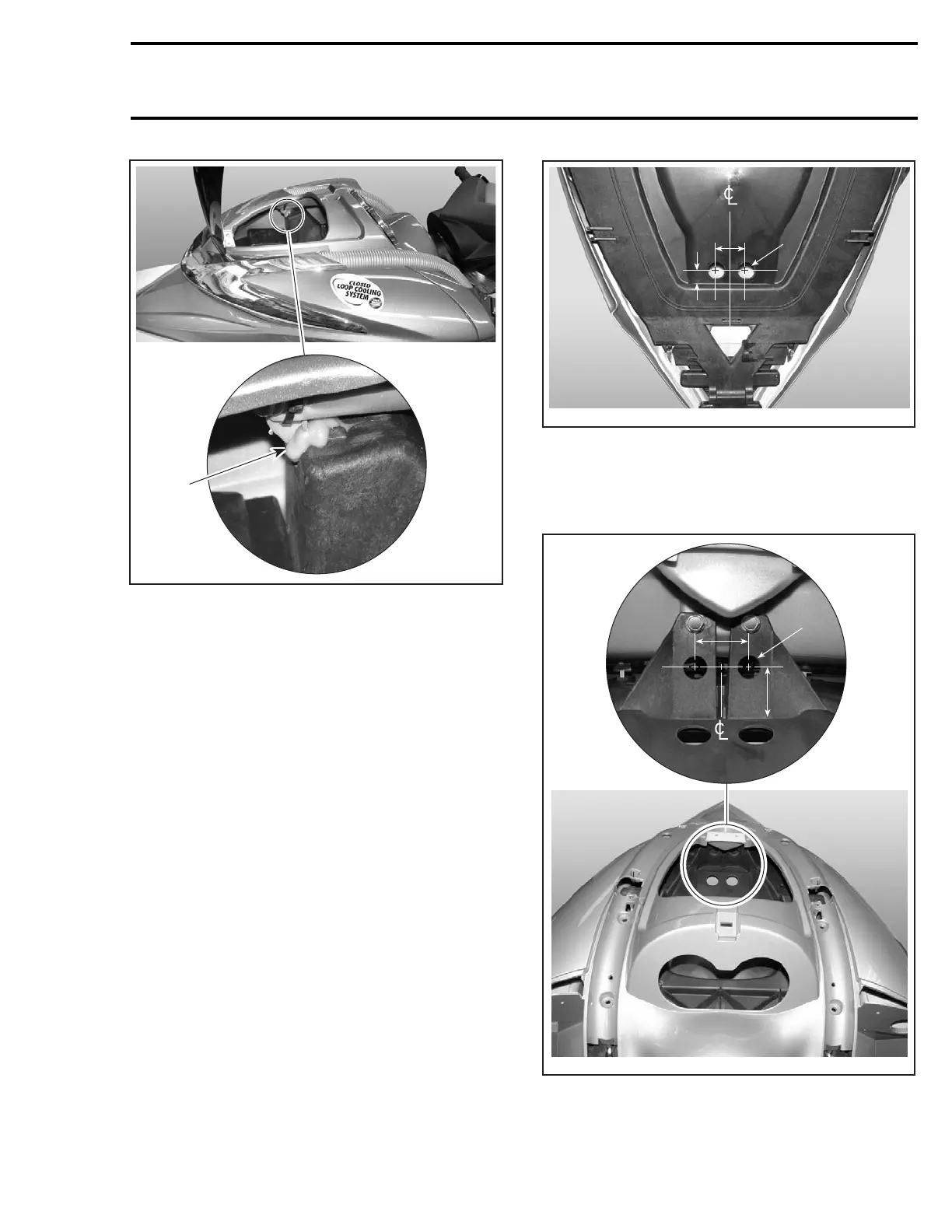

F19L1DA
1
1. Greenglueinthisarea
CAUTION: Attempting to disassemble a glued
inner shell will permanently damage the parts.
Front Grill
NOTE: It may be easier to remove storage cover
from vehicle to proceed.
From inside storage compartment, remove retain-
ing screws of grill.
For the front screws, holes have to be drilled in
inner shell to reach the screws. Follow this pro-
cedure:
– From inside of storage compartment, drill 2 ac-
cess holes as shown.
F19L1GA
A
B
C
A. 44 mm (1.73 in)
B. 23 mm (.91 in)
C. 2 x 25 mm (1 in) dia. holes
– From top of storage compartment, drill 2 access
holesasshown.
F19L1HA
A
B
C
A. 44 mm (1.73 in)
B. 48 mm (1.9 in)
C. 2 x 20 mm (13/16 in) dia. holes
smr2004-Complete Line Up 741
