Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
CAUTION: Be careful to drill through inner skin
only.
– You can now reach and remove the remaining
screws that retain the front grill.
From inside storage compartment, carefully re-
lease the locking tabs.
CAUTION: Proceed with caution. Damaging
the locking tab of the storage cover will pre-
vent proper retaining of the front grill after
reinstallation.

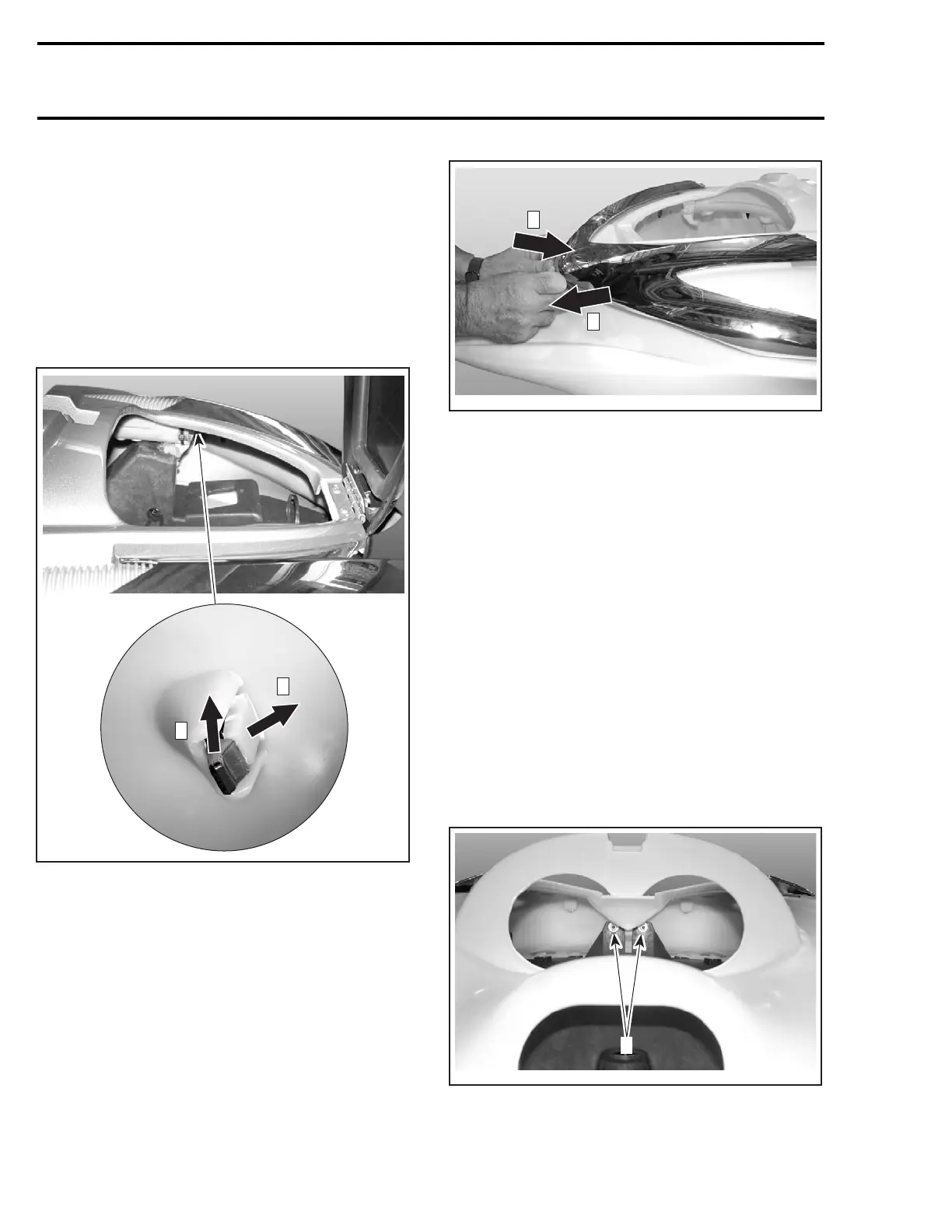

F19L1KA
1
2
Step 1: Release the locking tab and HOLD
Step 2: Push tab upward
Release front part of grill and remove grill.
At installation, first install the front part of front
grill.
F19L1NA
1
2
Step 1: Pull out the bottom edges by slightly twisting to hook up
Step 2: Push the top corner to snap in
Snap the other tabs of front grill.
To reinstall the front screws, place some sticky
product in a socket and put screw in the socket.
Install screws to retain front grill.
Plug holes with cap plug (P/N 291 000 279) on the
lower face of the inner shell. Ensure to apply sili-
cone sealant on cap plug to prevent water infiltra-
tion.
Models with the removable Inner Shell
Inner Shell
First ensure the inner shell is not permanently
glued to the storage cover. See MODELS WITH
THE INNER SHELL PERMANENTLY GLUED
above.
Remove retaining screws from inner shell includ-
ing the front screws.
F19L1OA
1
1. Front screws
742 smr2004-Complete Line Up
