DMG 3200/3100/3000 – User Manual
Page 78 (306)

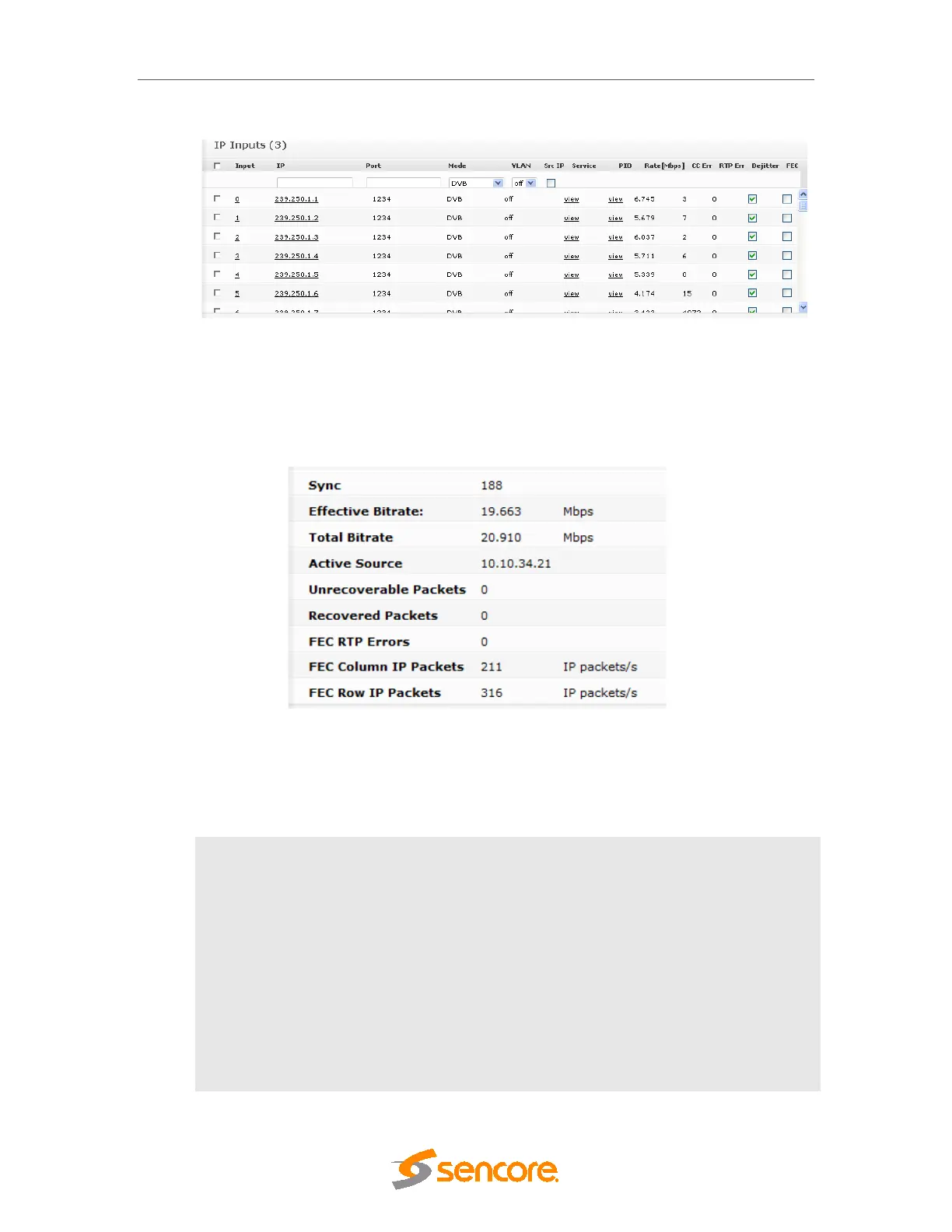

Figure 5.33 - IP Input Page (for Modules with FEC)
For the IP input module with FEC there are additional status parameters are available, on top of
the generic Sync, Effective Bitrate, Total Bitrate, and Active Source, as shown in Figure
5.34.
Figure 5.34- IP Input Port Status (for Modules with FEC)
The additional parameters are described in further detail below:
Unrecoverable
Packets
Number of lost data packets that cannot be recovered with FEC
Recovered
Packets
Number of data packets recovered with FEC
FEC RTP Errors
Number of missing FEC packets
FEC Column IP
Packets
Number of Column FEC packets per second (packet rate)
FEC Row IP
Packets
Number of Row FEC packets per second (packet rate)
