Siemens MICROMASTER 440 - Setpoint of the MOP; CO: Act. Output Freq. of the MOP

Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
121
P1040[3] Setpoint of the MOP Min: -650.00
CStat: CUT Datatype: Float Unit: Hz Def: 5.00
P-Group: SETPOINT Active: Immediately QuickComm.: No Max: 650.00
Determines setpoint for motor potentiometer control (P1000 = 1).
Index:
P1040[0] : 1st. Drive data set (DDS)
P1040[1] : 2nd. Drive data set (DDS)
P1040[2] : 3rd. Drive data set (DDS)
Note:
- If motor potentiometer setpoint is selected either as main setpoint or additional setpoint, the reverse
direction will be inhibited by default of P1032 (inhibit reverse direction of MOP).
- To re-enable reverse direction, set P1032 = 0.
r1050 CO: Act. Output freq. of the MOP Min: -
Datatype: Float Unit: Hz Def: -
P-Group: SETPOINT Max: -
Displays output frequency of motor potentiometer setpoint ([Hz]).

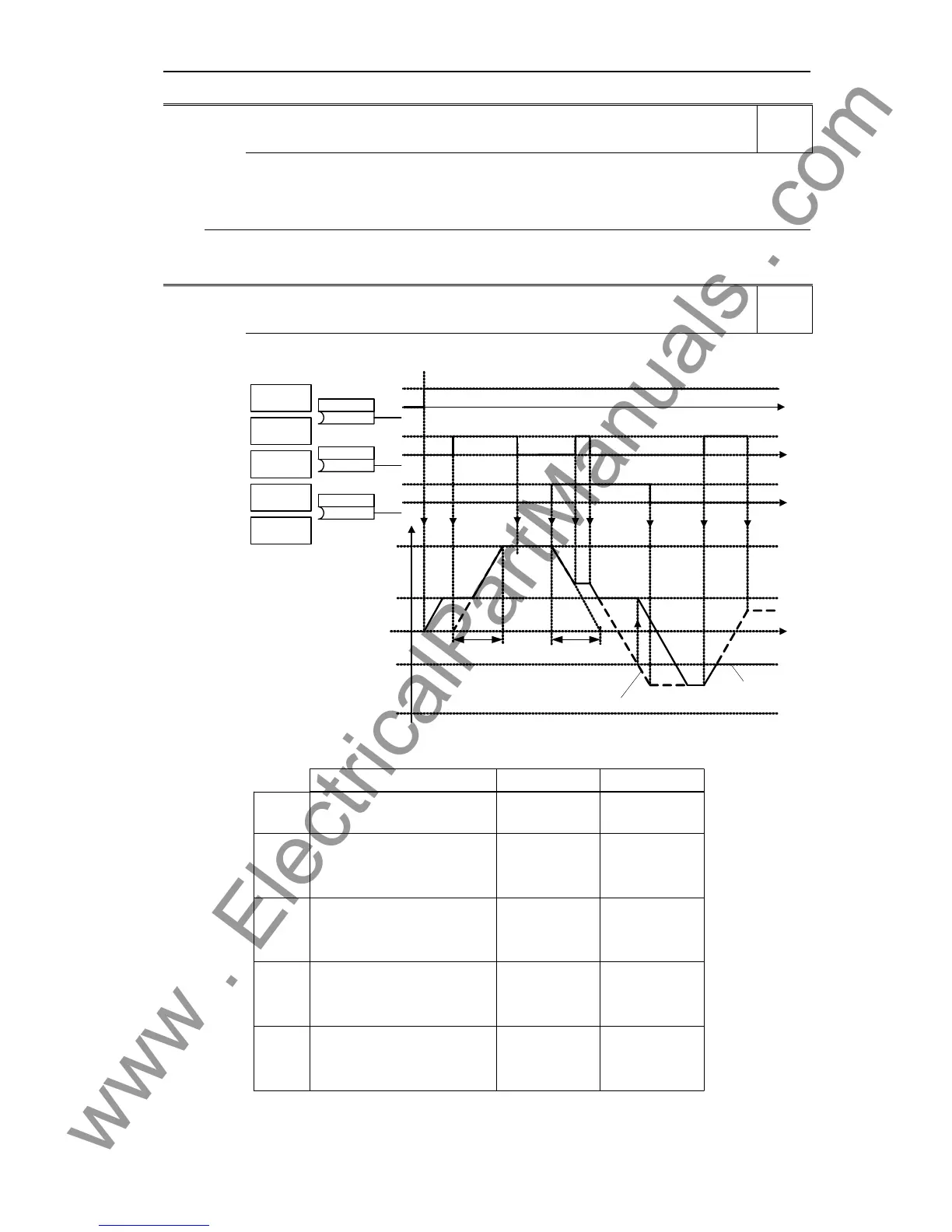

P1120
f
P1080
1
0
1
0
t
t
t
DIN
BOP
USS
BOP link
USS
COM link
CB
COM link
1
0
t
P1082
P1121
P1035
P1036
P0840
-P1080
r1050
f
act
-P1082
Selection
DIN
BOP
USS control word
r2032 Bit13
USS control word
r2032 Bit14
or
P0702 = 13
(DIN2)
P0703 = 14
(DIN3)
P0719 = 0, P0700 = 1, P1000 = 1
P0719 = 1, P0700 = 2
or
P0719 = 0, P0700 = 2, P1000 = 1
P0719 = 1, P0700 = 1
P0719 = 11
or
or
P0719 = 0, P0700 = 4, P1000 = 1
P0719 = 1, P0700 = 4
P0719 = 41
or
USS on
BOP link
USS control word
r2036 Bit13
USS control word
r2036 Bit14
or
P0719 = 0, P0700 = 5, P1000 = 1
P0719 = 1, P0700 = 5
P0719 = 51
or
USS on
COM link
CB control word
r2090 Bit13 r2090 Bit14
or
P0719 = 0, P0700 = 6, P1000 = 1
P0719 = 1, P0700 = 6
P0719 = 61
or
CB
CB control word
UP button DOWN button
MOP up
MOP down
Possible parameter settings for the selection of MOP:
Level
2
Level
3
