Siemens MICROMASTER 440 - Bi: and 1; Bo: and 1; Bi: and 2; Bo: and 2

Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
243
P2810[2] BI: AND 1 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0

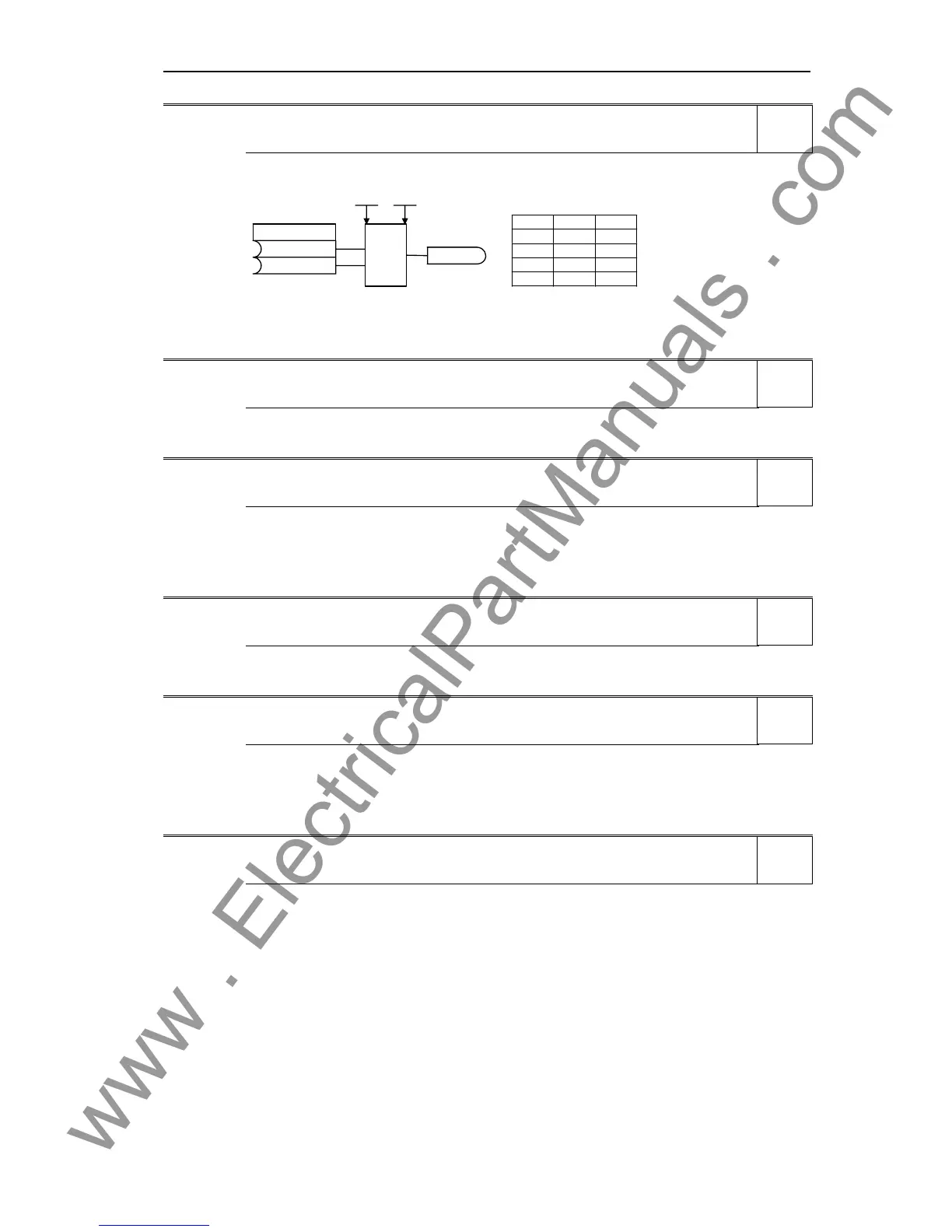

P2810[0], P2810[1] define inputs of AND 1 element, output is P2811.
P2800
P2801[0]
A
B
C
&
P2810
r2811
ABC
000
010
100
111
Index0
Index1
Index:
P2810[0] : Binector input 0 (BI 0)
P2810[1] : Binector input 1 (BI 1)
Dependency:
P2801[0] is active level for the AND element.
r2811 BO: AND 1 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of AND 1 element. Displays and logic of bits defined in P2810[0], P2810[1].
Dependency:
P2801[0] is active level for the AND element.
P2812[2] BI: AND 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
P2812[0], 2812[1] define inputs of AND 2 element, output is P2813.
Index:
P2812[0] : Binector input 0 (BI 0)
P2812[1] : Binector input 1 (BI 1)
Dependency:
P2801[1] is active level for the AND element.
r2813 BO: AND 2 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of AND 2 element. Displays and logic of bits defined in P2812[0], P2812[1].
Dependency:
P2801[1] is active level for the AND element.
P2814[2] BI: AND 3 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
P2814[0], P2814[1] define inputs of AND 3 element, output is P2815.
Index:
P2814[0] : Binector input 0 (BI 0)
P2814[1] : Binector input 1 (BI 1)
Dependency:
P2801[2] is active level for the AND element.
r2815 BO: AND 3 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Output of AND 3 element. Displays and logic of bits defined in P2814[0], P2814[1].
Dependency:
P2801[2] is active level for the AND element.
Level
3
Level
3
Level
3
Level
3
Level
3
Level
3
