MICROMASTER 440 Parameter List
42 6SE6400-5BB00-0BP0
3.3 Inverter parameters (HW)
P0100 Europe / North America Min: 0
CStat: C Datatype: U16 Unit: - Def: 0
P-Group: QUICK Active: first confirm QuickComm.: Yes Max: 2
Determines whether power settings (e.g. nominal rating plate power - P0307) are expressed in [kW] or [hp].
The default settings for the nominal rating plate frequency (P0310) and maximum motor frequency (P1082)
are also set automatically here, in addition to reference frequency (P2000).
Possible Settings:
0 Europe [kW], frequency default 50 Hz
1 North America [hp], frequency default 60 Hz
2 North America [kW], frequency default 60 Hz
Dependency:
Where:
- Stop drive first (i.e. disable all pulses) before you change this parameter.
- P0100 can only be changed when P0010 = 1 (Commissioning mode) via the respective Commissioing
interface (e.g. BOP).
- Changing P0100 resets all rated motor parameters as well as other parameters that depend on the
rated motor parameters (see P0340 - calculation of motor parameters).

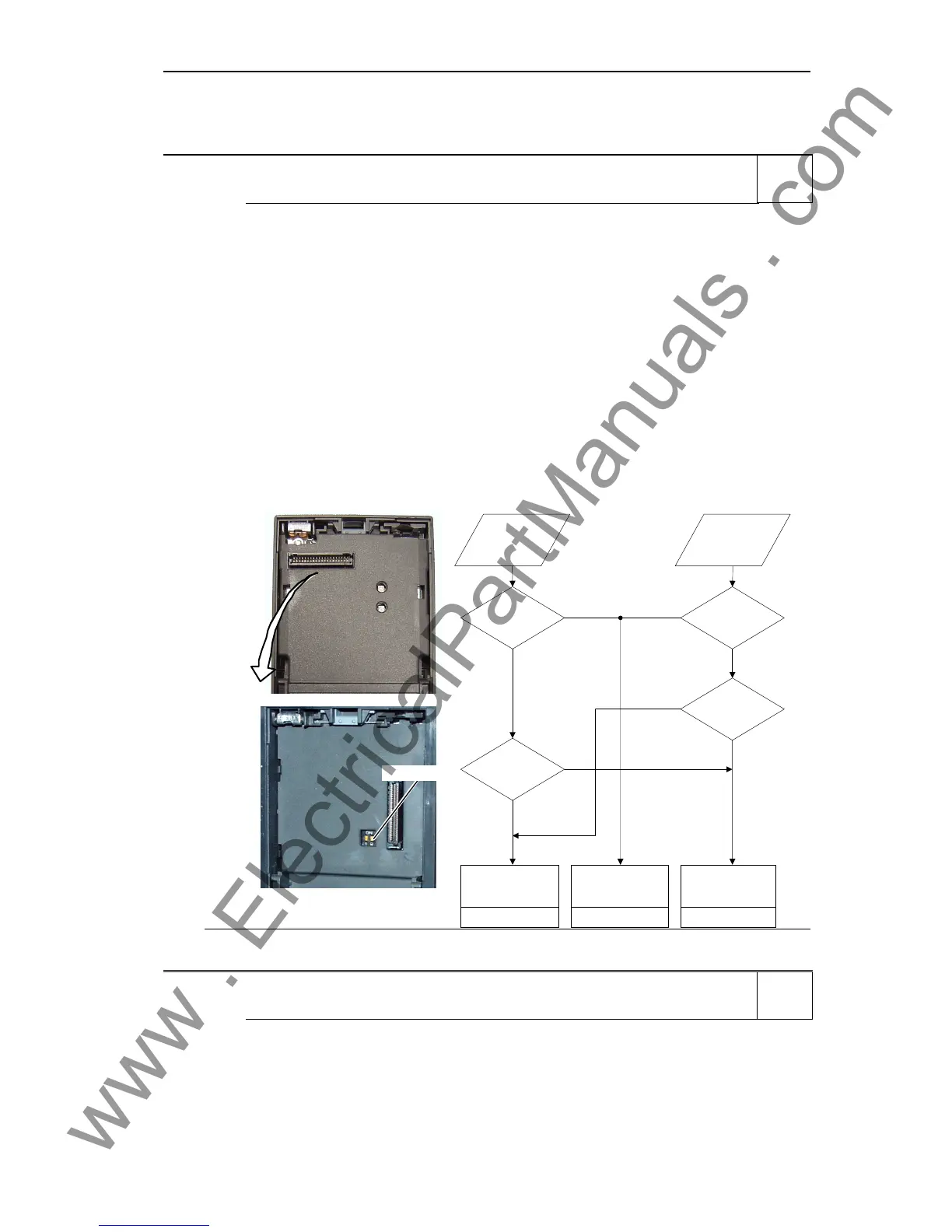

Changing P0100 overwrites the settings of the DIP50/60 switch (location shown in the diagram below):
1. Parameter P0100 has an higher priority than the DIP50/60 switch.
2. However, after the inverter is powered-on again and P0100 < 2, the DIP50/60 setting will take priority
and overwrite P0100.
3. The DIP50/60 switch does not have any effect, if P0100 = 2.
Remove I/O board
DIP50/60
P0100 = 2
?
P0100 = 0
DIP50/60 =
50 Hz
?
P0100 = 2 P0100 = 1
P0100 = 2
?
P0100 = 1
?
yes
no
yes
yes
yes
no
no
no
Quick
commissioning
P0010 = 1
Power
cycle
Power in kW
Frequency 50 Hz
Power in kW
Frequency 60 Hz
Power in hp
Frequency 60 Hz
Notice:
P0100 setting 2 (==> [kW], frequency default 60 [Hz]) is not overwritten by the setting of DIP switch 2 (see
diagram above).
P0199 Equipment system number Min: 0
CStat: UT Datatype: U16 Unit: - Def: 0
P-Group: - Active: first confirm QuickComm.: No Max: 255
Equipment system number This parameter has no operation effect.
