Siemens MICROMASTER 440 Parameter Guide

Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
129
r1084 Resultant max. frequency Min: -
Datatype: Float Unit: Hz Def: -
P-Group: CONTROL Max: -
Displays resultant maximum frequency.
P1300 < 20
P1800 ≤ 6 kHz →
650.00) ,
15
P1800
(P1082, min r1084 =
P1800 ≥ 8 kHz →
650.00) (P1082, min r1084=
200.00) P0310, 5 (P1082, min r1084 ⋅=
P1300 ≥ 20
P1091[3] Skip frequency 1 Min: 0.00
CStat: CUT Datatype: Float Unit: Hz Def: 0.00
P-Group: SETPOINT Active: Immediately QuickComm.: No Max: 650.00
Defines skip frequency 1 which avoids effects of mechanical resonance and suppresses frequencies within
+/- P1101 (skip frequency bandwidth).

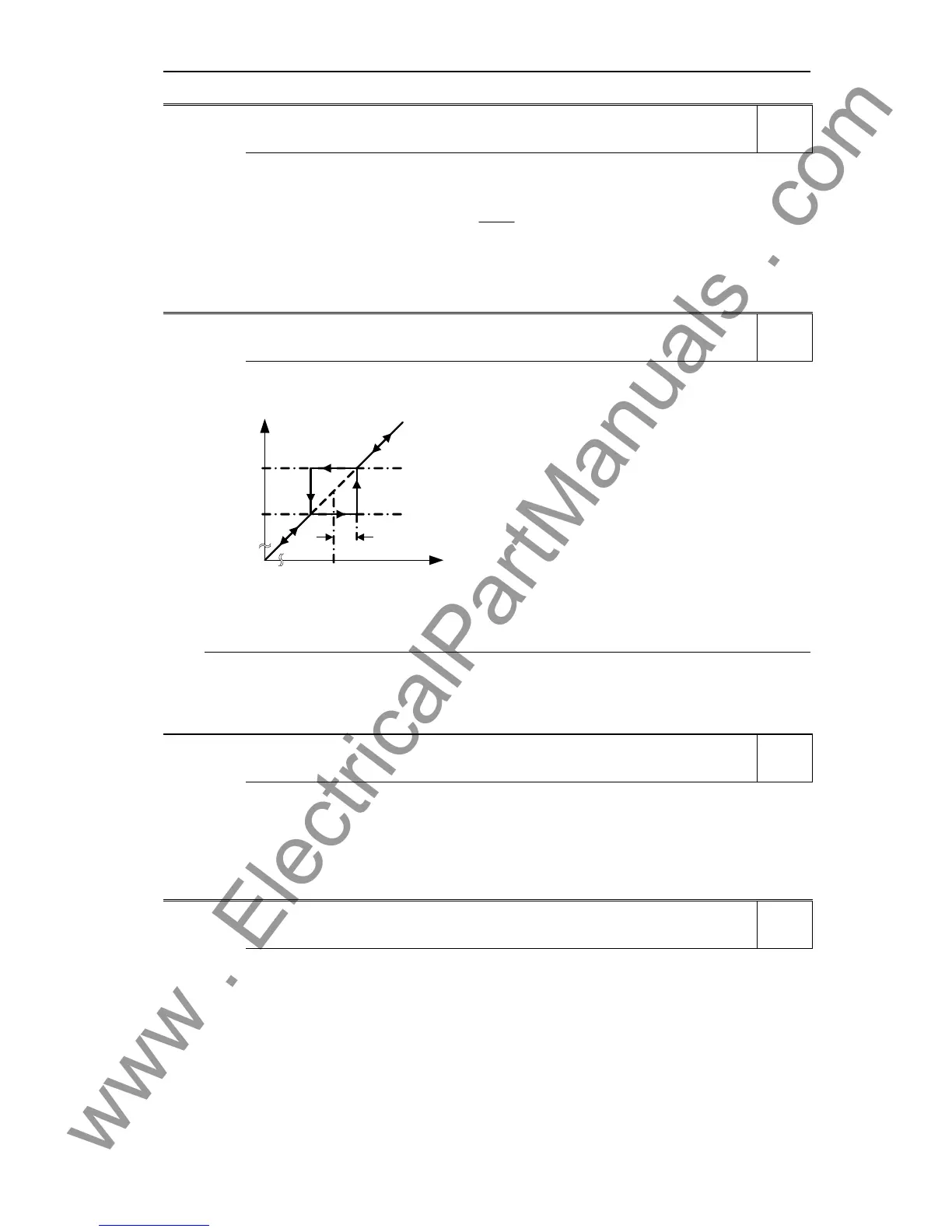

P1101
P1091
f
in
f
out
Skip frequency
bandwidth
Skip frequency
Index:
P1091[0] : 1st. Drive data set (DDS)
P1091[1] : 2nd. Drive data set (DDS)
P1091[2] : 3rd. Drive data set (DDS)
Notice:
- Stationary operation is not possible within the suppressed frequency range; the range is merely passed
through (on the ramp).
- For example, if P1091 = 10 Hz and P1101 = 2 Hz, it is not possible to operate continuously between 10
Hz +/- 2 Hz (i.e. between 8 and 12 Hz).
P1092[3] Skip frequency 2 Min: 0.00
CStat: CUT Datatype: Float Unit: Hz Def: 0.00
P-Group: SETPOINT Active: Immediately QuickComm.: No Max: 650.00
Defines skip frequency 2 which avoids effects of mechanical resonance and suppresses frequencies within
+/- P1101 (skip frequency bandwidth).
Index:
P1092[0] : 1st. Drive data set (DDS)
P1092[1] : 2nd. Drive data set (DDS)
P1092[2] : 3rd. Drive data set (DDS)
Details:
See P1091 (skip frequency 1).
P1093[3] Skip frequency 3 Min: 0.00
CStat: CUT Datatype: Float Unit: Hz Def: 0.00
P-Group: SETPOINT Active: Immediately QuickComm.: No Max: 650.00
Defines skip frequency 3 which avoids effects of mechanical resonance and suppresses frequencies within
+/- P1101 (skip frequency bandwidth).
Index:
P1093[0] : 1st. Drive data set (DDS)
P1093[1] : 2nd. Drive data set (DDS)
P1093[2] : 3rd. Drive data set (DDS)
Details:
See P1091 (skip frequency 1).
Level
3
Level
3
Level
3
Level
3
