Siemens MICROMASTER 440 - Technology Functions Diagrams; Monitoring Diagram

Issue 01/06 Function Diagrams
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
279
- 4100 -

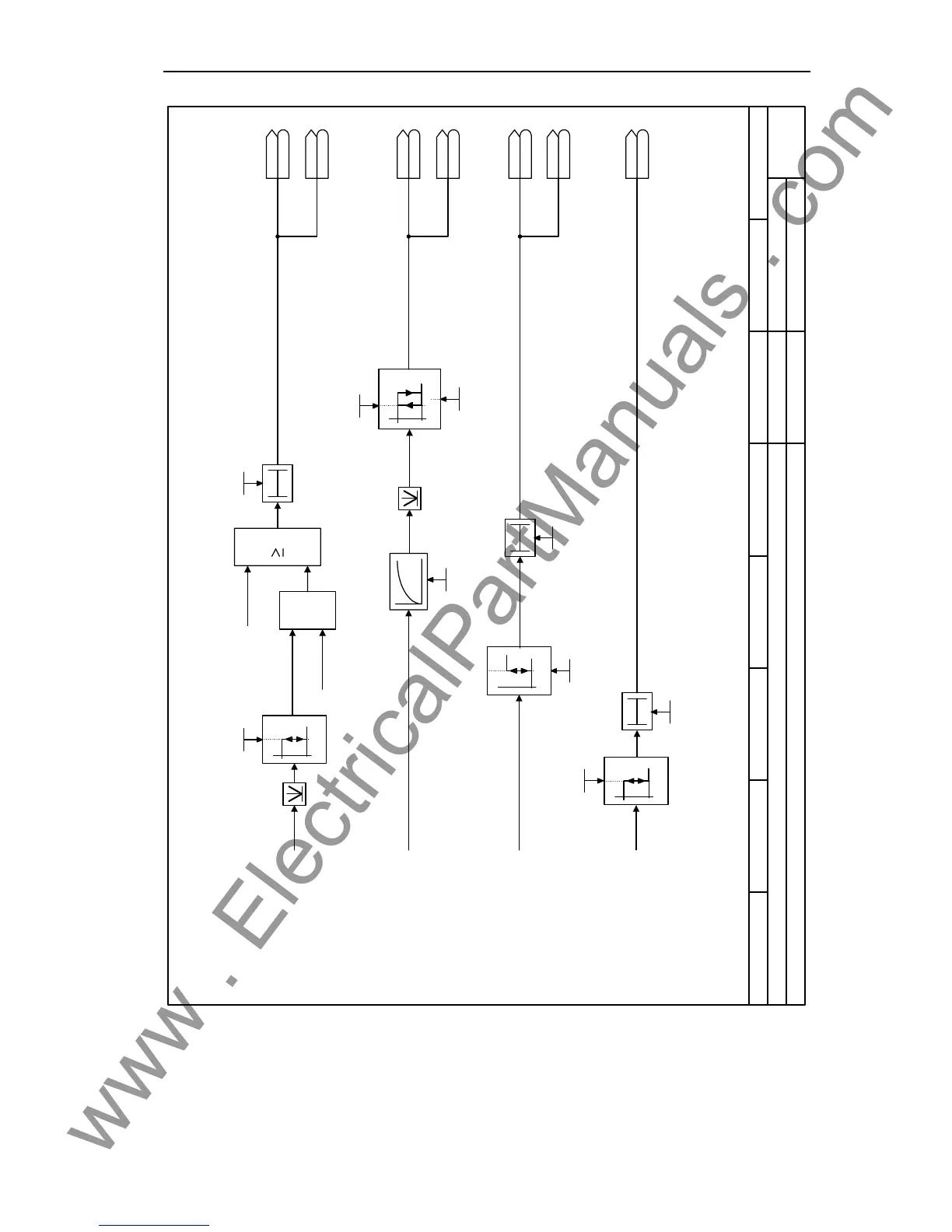

Function diagram
87654321
4100_SW21.vsd
Technology Functions
MICROMASTER 440
16.01.2006 V2.1
Monitoring
SwOff freq. f_off
0.00 ... 10.00 [Hz]
P2167.D (1.00)
|f_act| >= P2167 (f_off)
0
1
&
1
f_act
Delay time T_off
0 ... 10000 [ms]
P2168.D (10)
CO/BO: Act StatWd2
r0053 r0053
|I_act| >= P2170 (I_thresh)
T0
no Brake selected
Brake closed
(on ramp down)
|f_act| > P1080 (f_min)
f_act
Tconst. freq. filt
0 ... 1000 [ms]
P2153.D (5)
0
1
{
Min. frequency
0.00 ... 650.00 [Hz]
P1080.D (0.00)
Hyst. freq. f_hys
0.00 ... 10.00 [Hz]
P2150.D (3.00)
CO/BO: Act StatWd2
r0053 r0053
.1 .2
CO/BO: Monitor Wd1
r2197 r2197
.5
CO/BO: Monitor Wd1
r2197 r2197
.0
|I_act| < P2170
Threshold current
0.0 ... 400.0 [%]
P2170.D (100.0)
0T
0
1
I_act
Delay time current
0 ... 10000 [ms]
P2171.D (10)
CO/BO: Act StatWd2
r0053 r0053
.3
Threshold current
0.0 ... 400.0 [%]
P2170.D (100.0)
0T
0
1
I_act
Delay time current
0 ... 10000 [ms]
P2171.D (10)
CO/BO: Monitor Wd2
r2198 r2198
.8
CO/BO: Monitor Wd1
r2197 r2197
.8
