Siemens MICROMASTER 440 - VDC Control (Max, Min) Diagram

Issue 01/06 Function Diagrams
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
285
- 4600 -

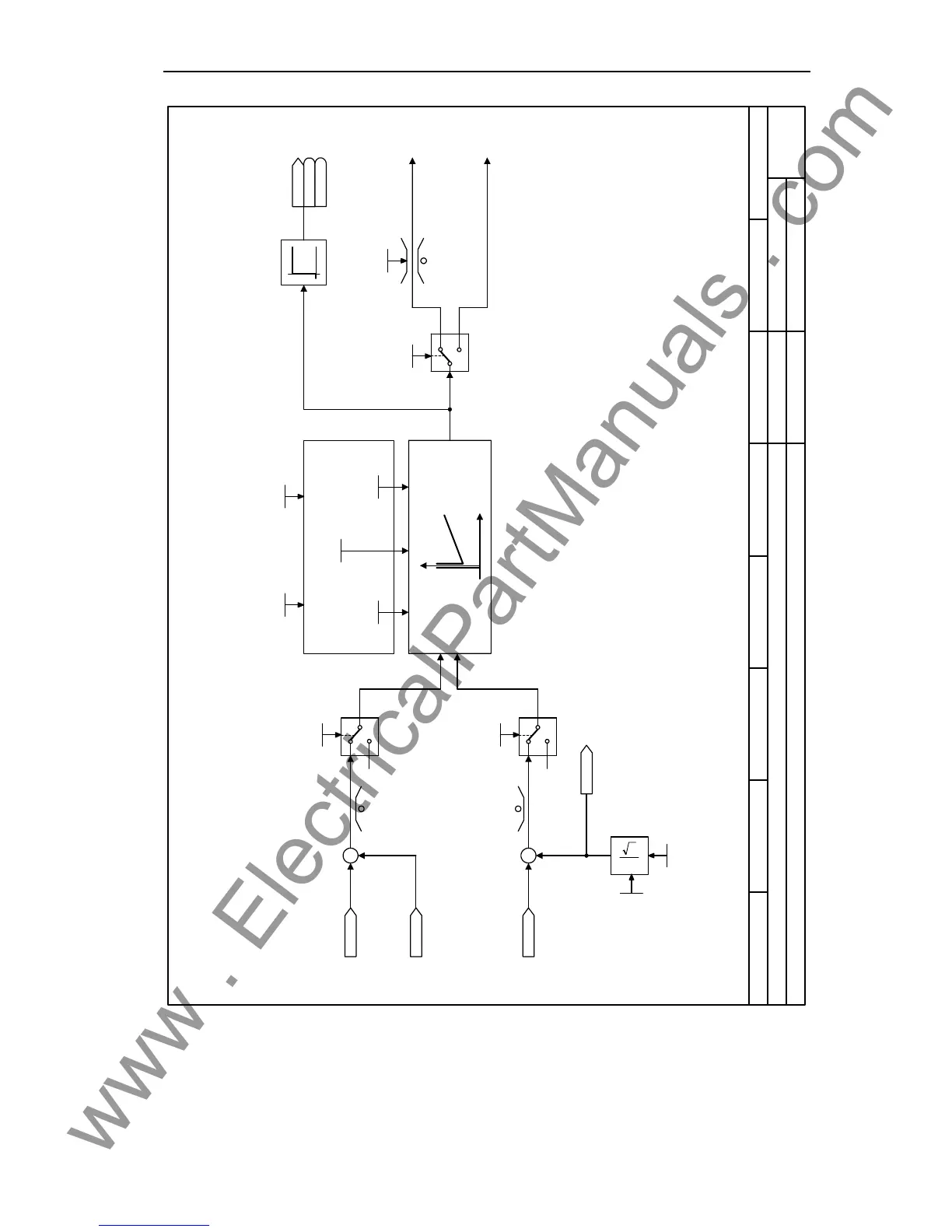

Function diagram
87654321
4600.vsd
Technology Functions
MICROMASTER 440
16.01.2006 V2.1
Vdc Control (max, min)
r0070
CO: Act. Vdc [V]
r1242
CO: Vdc-max ON lev [V]
Int. time Vdc ctrl
0.1 ... 1000.0 [ms]
P1251.D (40.0)
Diff.time Vdc ctrl
0.0 ... 1000.0 [ms]
P1252.D (1.0)
Gain of Vdc ctrl.
0.00 ... 10.00
P1250.D (1.00)
Vdc-max dyn. fact.
10 ... 200 [%]
P1243.D (100)
1,3
0,2
Vdc controller
0 ... 3
P1240.D (1)
0
–
r0070
CO: Act. Vdc [V]
r1246 [3]
CO: KIB ON level [V]
–
2,3
0,1
Vdc controller
0 ... 3
P1240.D (1)
0
<20
≥20
Control mode
0 ... 23
P1300.D (0)
Vdc ctrl outp. lim
0.00 ... 600.00 [Hz]
P1253.D (10.00)
1
CO/BO:Stat MotCtrl
r0056 r0056
f(V
DC
)
FP 6100
.14
isq(V
DC
)
FP 7900
r0056.15
Supply voltage
0 ... 1000 [V]
P0210 (230)
KIB ON level
65 ... 115 [%]
P1245.D (76)
Dyn. factor of KIP
10 ... 200 [%]
P1247.D (100)
100
2
