3.29.2.6 Torque / power limiting
P1521[3] CO: Lower torque limit Min: -99999.00
CStat: CUT Datatype: Float Unit: Nm Def: -5.13
P-Group: CONTROL Active: Immediately QuickComm.: No Max: 99999.00
Enters fixed value of lower torque limitation.
P1521
max
P1521
def
r0333 1.5 ⋅−=
r0333 4 ⋅±=
Index:
P1521[0] : 1st. Drive data set (DDS)
P1521[1] : 2nd. Drive data set (DDS)
P1521[2] : 3rd. Drive data set (DDS)
P1522[3] CI: Upper torque limit Min: 0:0
CStat: T Datatype: U32 Unit: - Def: 1520:0
P-Group: CONTROL Active: first confirm QuickComm.: No Max: 4000:0
Selects source of upper torque limitation.
Index:
P1522[0] : 1st. Command data set (CDS)
P1522[1] : 2nd. Command data set (CDS)
P1522[2] : 3rd. Command data set (CDS)
P1523[3] CI: Lower torque limit Min: 0:0
CStat: T Datatype: U32 Unit: - Def: 1521:0
P-Group: CONTROL Active: first confirm QuickComm.: No Max: 4000:0
Selects source of lower torque limitation.
Index:
P1523[0] : 1st. Command data set (CDS)
P1523[1] : 2nd. Command data set (CDS)
P1523[2] : 3rd. Command data set (CDS)
P1525[3] Scaling lower torque limit Min: -400.0
CStat: CUT Datatype: Float Unit: % Def: 100.0
P-Group: CONTROL Active: Immediately QuickComm.: No Max: 400.0
Enters scaling of lower torque limitation in [%].
Index:
P1525[0] : 1st. Drive data set (DDS)
P1525[1] : 2nd. Drive data set (DDS)
P1525[2] : 3rd. Drive data set (DDS)
Note:
P1525 = 100 % = standard setting
r1526 CO: Upper torque limitation Min: -
Datatype: Float Unit: Nm Def: -
P-Group: CONTROL Max: -
Displays actual upper torque limitation.

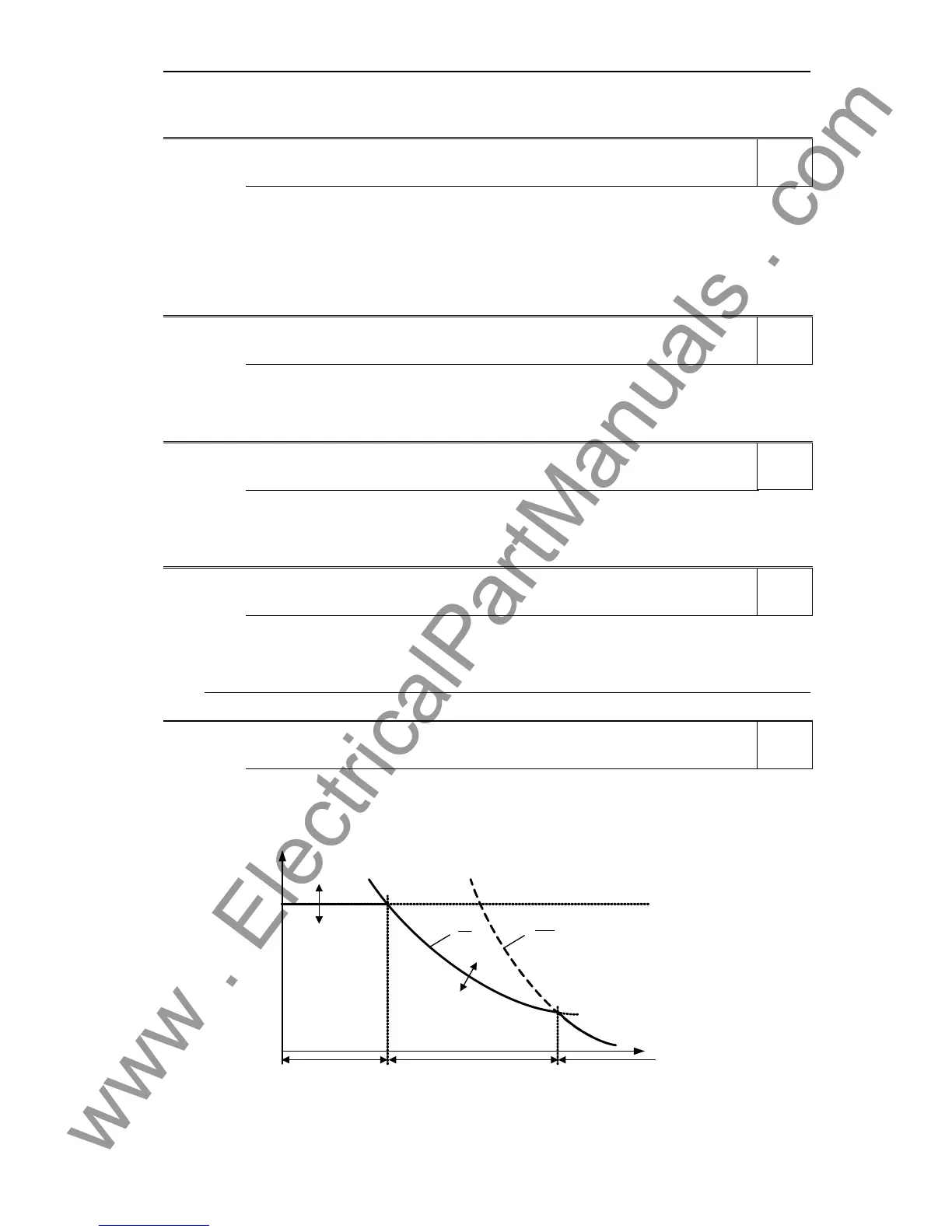

f
1
~
Torque limitation
Resultant
torque limit
Power
limitation
|f
act
r1526
r1527
Stall
limitation
P1530
P1531
f
1
~
2
Constant
torque
f
stall
Constant
power
|
|M
|
Stall
power
Dependency:
The parameters r1526 and r1527 depend on P1520, P1521, P1522, P1523 and P1525.
Level
2
Level
3
Level
3
Level
3
Level
3
