Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
173
3.29.2.4 Torque control
P1500[3] Selection of torque setpoint Min: 0
CStat: CT Datatype: U16 Unit: - Def: 0
P-Group: CONTROL Active: first confirm QuickComm.: Yes Max: 77
Selects torque setpoint source. In the table of possible settings below, the main setpoint is selected from the
least significant digit (i.e., 0 to 7) and any additional setpoint from the most significant digit (i.e., x0 through
to x7).
Possible Settings:
0 No main setpoint
2 Analog setpoint
4 USS on BOP link
5 USS on COM link
6 CB on COM link
7 Analog setpoint 2
20 No main setpoint + Analog setpoint
22 Analog setpoint + Analog setpoint
24 USS on BOP link + Analog setpoint
25 USS on COM link + Analog setpoint
26 CB on COM link + Analog setpoint
27 Analog setpoint 2 + Analog setpoint
40 No main setpoint + USS on BOP link
42 Analog setpoint + USS on BOP link
44 USS on BOP link + USS on BOP link
45 USS on COM link + USS on BOP link
46 CB on COM link + USS on BOP link
47 Analog setpoint 2 + USS on BOP link
50 No main setpoint + USS on COM link
52 Analog setpoint + USS on COM link
54 USS on BOP link + USS on COM link
55 USS on COM link + USS on COM link
57 Analog setpoint 2 + USS on COM link
60 No main setpoint + CB on COM link
62 Analog setpoint + CB on COM link
64 USS on BOP link + CB on COM link
66 CB on COM link + CB on COM link
67 Analog setpoint 2 + CB on COM link
70 No main setpoint + Analog setpoint 2
72 Analog setpoint + Analog setpoint 2
74 USS on BOP link + Analog setpoint 2
75 USS on COM link + Analog setpoint 2
76 CB on COM link + Analog setpoint 2
77 Analog setpoint 2 + Analog setpoint 2
Index:
P1500[0] : 1st. Command data set (CDS)
P1500[1] : 2nd. Command data set (CDS)
P1500[2] : 3rd. Command data set (CDS)
Example:
Setting 24 selects the main setpoint (4) derived from the USS on BOP link with the additional setpoint (2)
derived from the analog input. Single digits are main setpoints only with no additional setpoint.
P1500 =
2
4
⇒
P1503 = 755.0
P1503 CI: Torque setpoint
r0755 CO: Act. ADC after scal. [4000h]
P1500 = 2
4
⇒
P1511 = r2015.1
P1511 CI: Additional torque setpoint
r2015 CO: PZD from BOP link (USS)

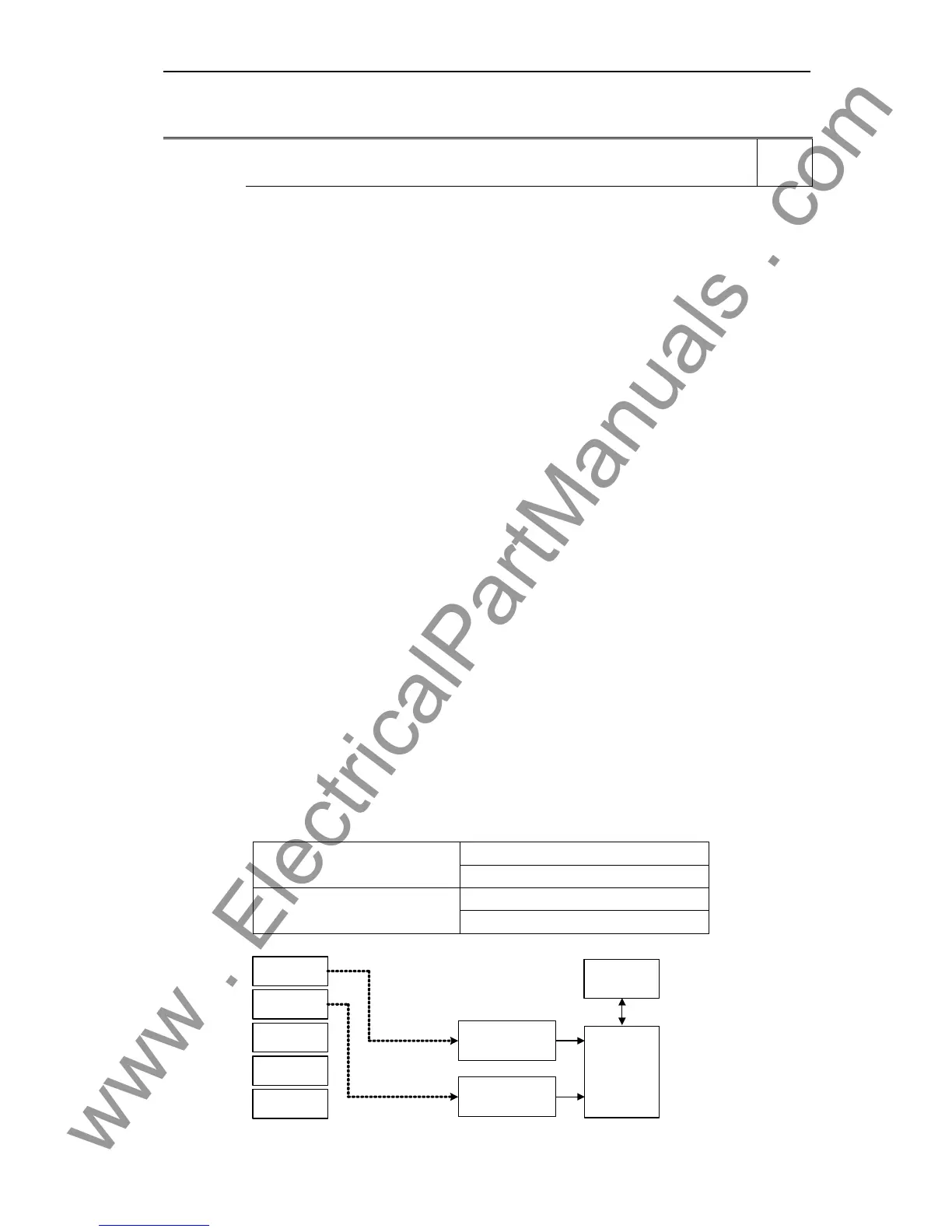

Example P1500 = 24 :
ADC
USS
BOP link
USS
COM link
CB
COM link
ADC2
P1000 =
2
4
Additonal
torque setpoint
P1000 = 2
4
Torque
control
Sequence
control
Torque
setpoint
Level
2
