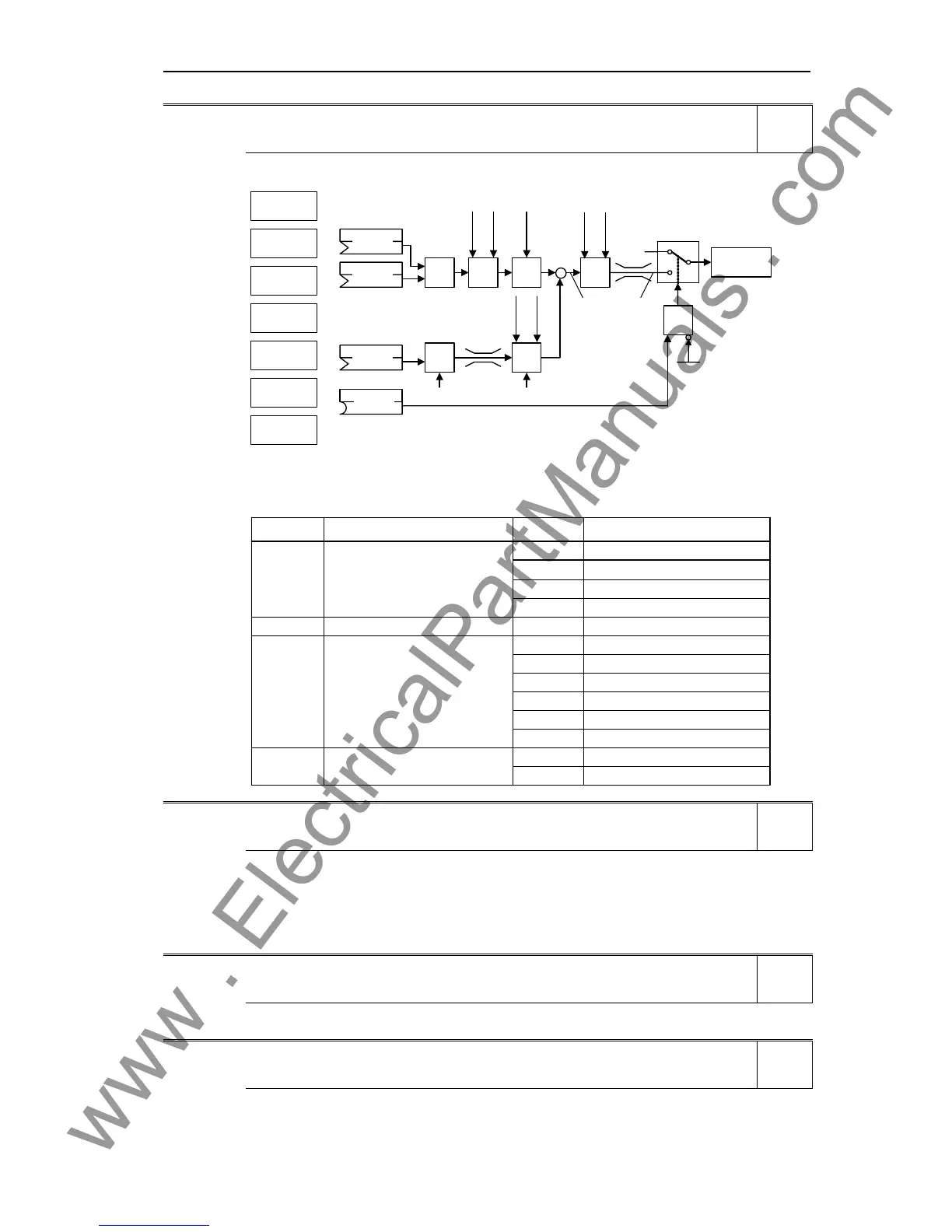

Siemens MICROMASTER 440 - CI: PID Setpoint; CI: PID Trim Source; PID Setpoint Gain Factor; PID Trim Gain Factor

Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
233
P2253[3] CI: PID setpoint Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
Defines setpoint source for PID setpoint input.
PID
MOP
ADC
PID
SUM
PID
PID
FF
USS
BOP link
USS
COM link
CB
COM link
ADC2
P2254
P2253
PID
RFG
PID
PT1
−
∆
PID
P2200
P2264
PID
PT1
PID
SCL
&
P2251
Output
PID
0
1
Motor
control
P2257 P2258 P2261
P2271
P2269 P2270
P2265
P2280 P2285
0
Index:
P2253[0] : 1st. Command data set (CDS)
P2253[1] : 2nd. Command data set (CDS)
P2253[2] : 3rd. Command data set (CDS)
Common Settings:
Parameter
BI: Enable PID controllerP2200
Parameter text Setting Meaning
0
PID controller always active
1.0
CI: PID setpointP2253
Analog input 1755.0
USS on BOP link2015.1
USS on COM link2019.1
CB on COM link2050.1
CI: PID feedback
P2264 755.0 Analog input 1
Analog input 2755.1
PID mode
P2251 0 PID as setpoint
2224 Fixed PID setpoint (PID-FF)
PID-MOP2250
PID controller de-activated
BICO
Digital input x722.x
BICO parameter
P2254[3] CI: PID trim source Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
Selects trim source for PID setpoint. This signal is multiplied by the trim gain and added to the PID setpoint.
Index:
P2254[0] : 1st. Command data set (CDS)
P2254[1] : 2nd. Command data set (CDS)
P2254[2] : 3rd. Command data set (CDS)
Common Settings:
See parameter P2253
P2255 PID setpoint gain factor Min: 0.00
CStat: CUT Datatype: Float Unit: - Def: 100.00
P-Group: TECH Active: Immediately QuickComm.: No Max: 100.00
Gain factor for PID setpoint. The PID setpoint input is multiplied by this gain factor to produce a suitable
ratio between setpoint and trim.
P2256 PID trim gain factor Min: 0.00
CStat: CUT Datatype: Float Unit: - Def: 100.00
P-Group: TECH Active: Immediately QuickComm.: No Max: 100.00
Gain factor for PID trim. This gain factor scales the trim signal, which is added to the main PID setpoint.
Level
2
Level
3
Level
3
Level
3
