Standard Web pages
12.6.1
Layout of the standard Web pages

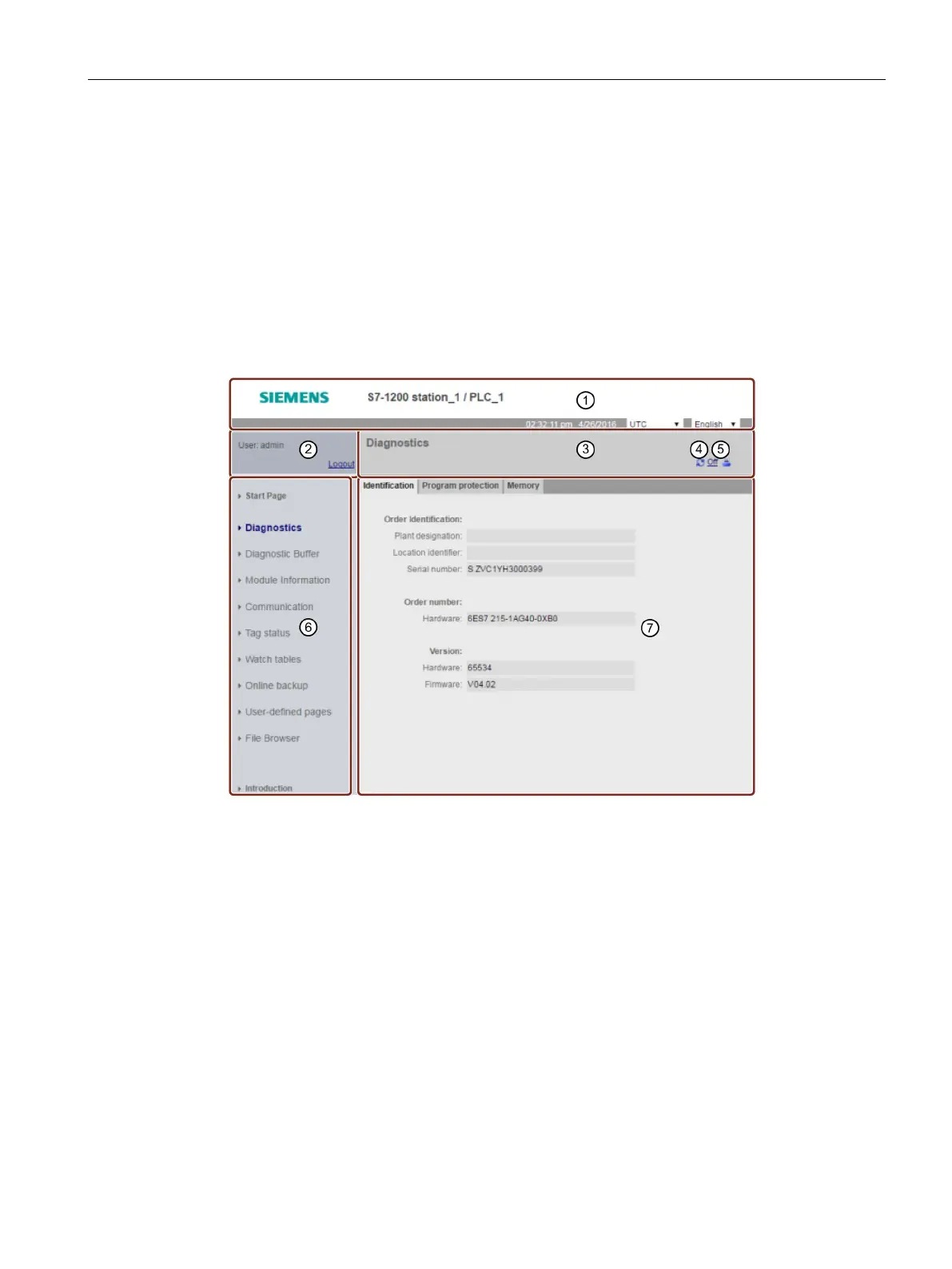

Each of the S7-1200 standard Web pages has a common layout with navigational links and
page controls. Regardless of whether you are viewing the page on a PC or on a mobile
device, each page has the same content area, but the layout and navigation controls vary
based on the screen size and resolution of the device. On a standard PC or large mobile
device the layout of a standard Web page appears as follows:
Web server header with selector to display PLC Local time or UTC time, and a selector for the
display language (Page 170)
Standard Web page header with name of the page that you are viewing. This example is the
CPU Identification page. Some of the standard Web pages, such as module information, also
display a navigation path here if multiple screens of that type can be accessed.
Refresh icon: for pages with automatic refresh, enables or disables the automatic refresh func-
tion; for pages without automatic refresh, causes the page to update with current data
Print icon: prepares and displays a printable version of the information available from the dis-
Navigation area to switch to another page
Content area for specific standard Web page that you are viewing. This example is the Diag-
