Programming concepts
7.3 Using blocks to structure your program
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
187
Using blocks to structure your program
By designing FBs and FCs to perform generic tasks, you create modular code blocks. You
then structure your program by having other code blocks call these reusable modules. The
calling block passes device-specific parameters to the called block.

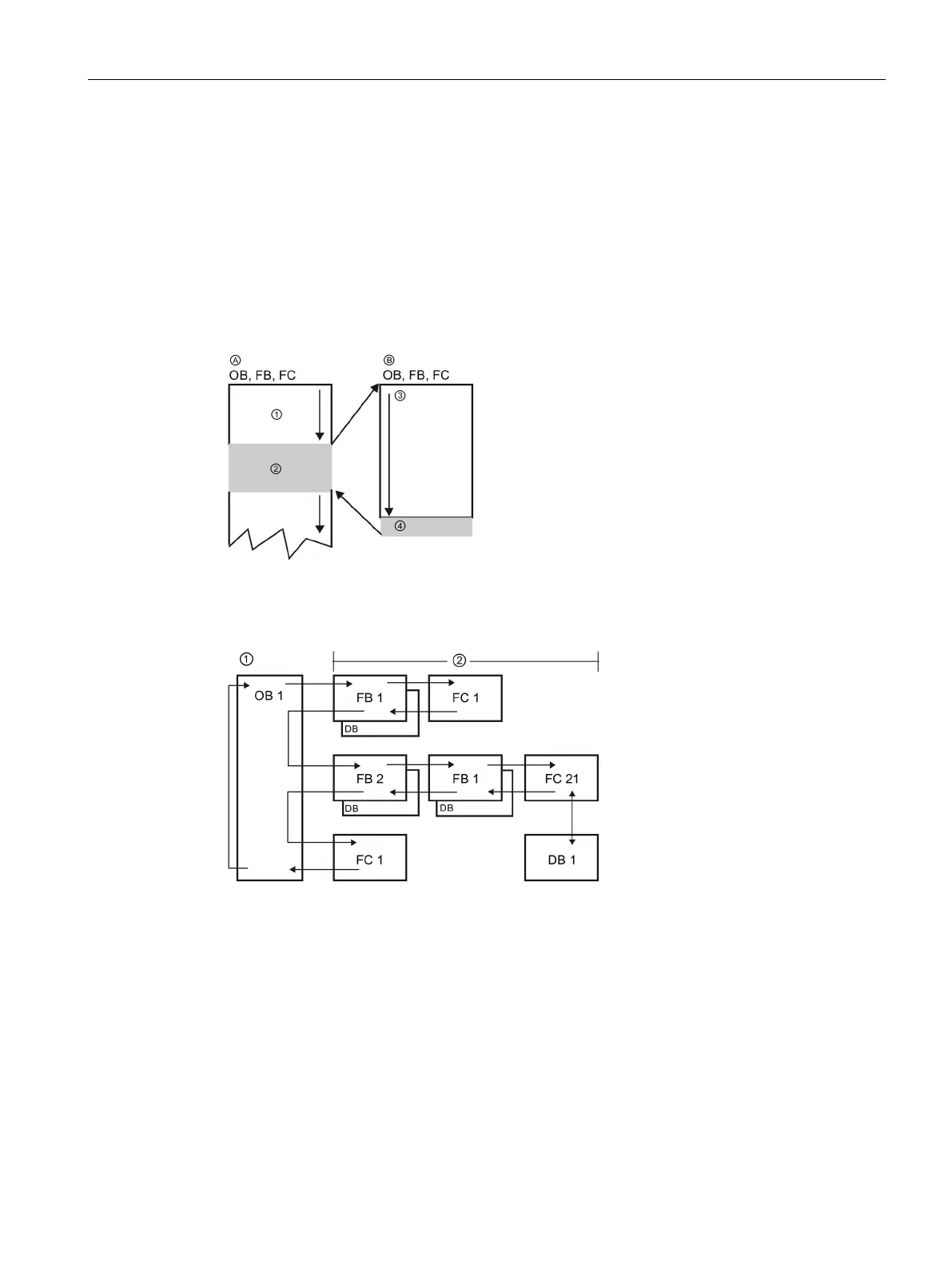

When a code block calls another code block, the CPU executes the program code in the
called block. After execution of the called block is complete, the CPU resumes the execution
of the calling block. Processing continues with execution of the instruction that follows after
the block call.
Called (or interrupting) block
Instruction or event that initiates the execution of
another block
Block end (returns to calling block)
You can nest the block calls for a more modular structure. In the following example, the
nesting depth is 3: the program cycle OB plus 3 layers of calls to code blocks.
