4.3 Installation and removal procedures
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
71
TS (TeleService) adapter
4.3.8.1
Connecting the TeleService adapter
Before installing the TS (TeleService) Adapter IE Basic or TS (TeleService) Adapter IE
Advanced, you must first connect the TS Adapter and a TS module.
Available TS modules:
● TS module RS232
● TS module Modem
● TS module GSM
● TS module ISDN
Note
The TS module can be damaged if you touch the contacts of the plug connector ④ of the
TS module.
Follow ESD guidelines in order to avoid damaging the TS
module through electrostatic
discharge. Before connecting a TS
module and TS Adapter, make sure that both are in an

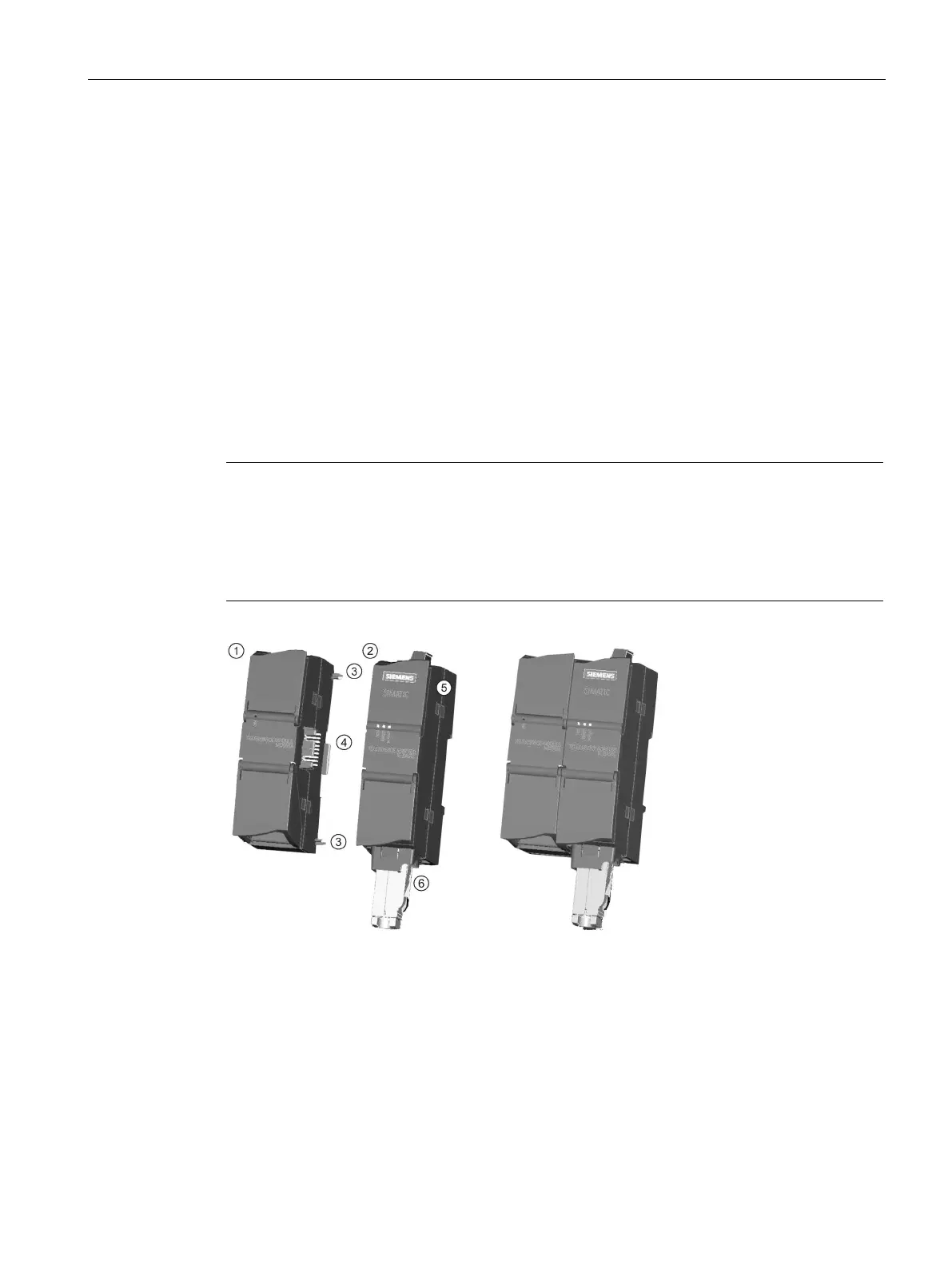

Plug connector from the TS module
