A.19 Input simulators
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
1547
A.19
Input simulators
Table A- 257 General specifications
Technical data
8 Position Simulator
14 Position Simulator
CPU 1217C Simulator
Article number
6ES7274-1XF30-0XA0
6ES7274-1XH30-0XA0
6ES7274-1XK30-0XA0
Dimensions W x H x D (mm) 43 x 35 x 23 67 x 35 x 23 93 x 40 x 23
Weight
20 grams
30 grams
43 grams
Points 8 14 14
Used with CPU
CPU 1211C, CPU 1212C
CPU 1214C, CPU 1215C
CPU 1217C
WARNING
Safe use of input simulators
These input simulators are not approved for use in Class I DIV 2 or Class I Zone 2
hazardous locations. The switches present a potential spark hazard/explosion hazard if
used in a Class I DIV 2 or Class I Zone 2 location. Unapproved use could result in death or
serious injury to personnel, and/or damage to equipment.
Use these input simulators only in non-hazardous locations. Do not use in Class I DIV 2 or
Class I Zone 2 hazardous locations.

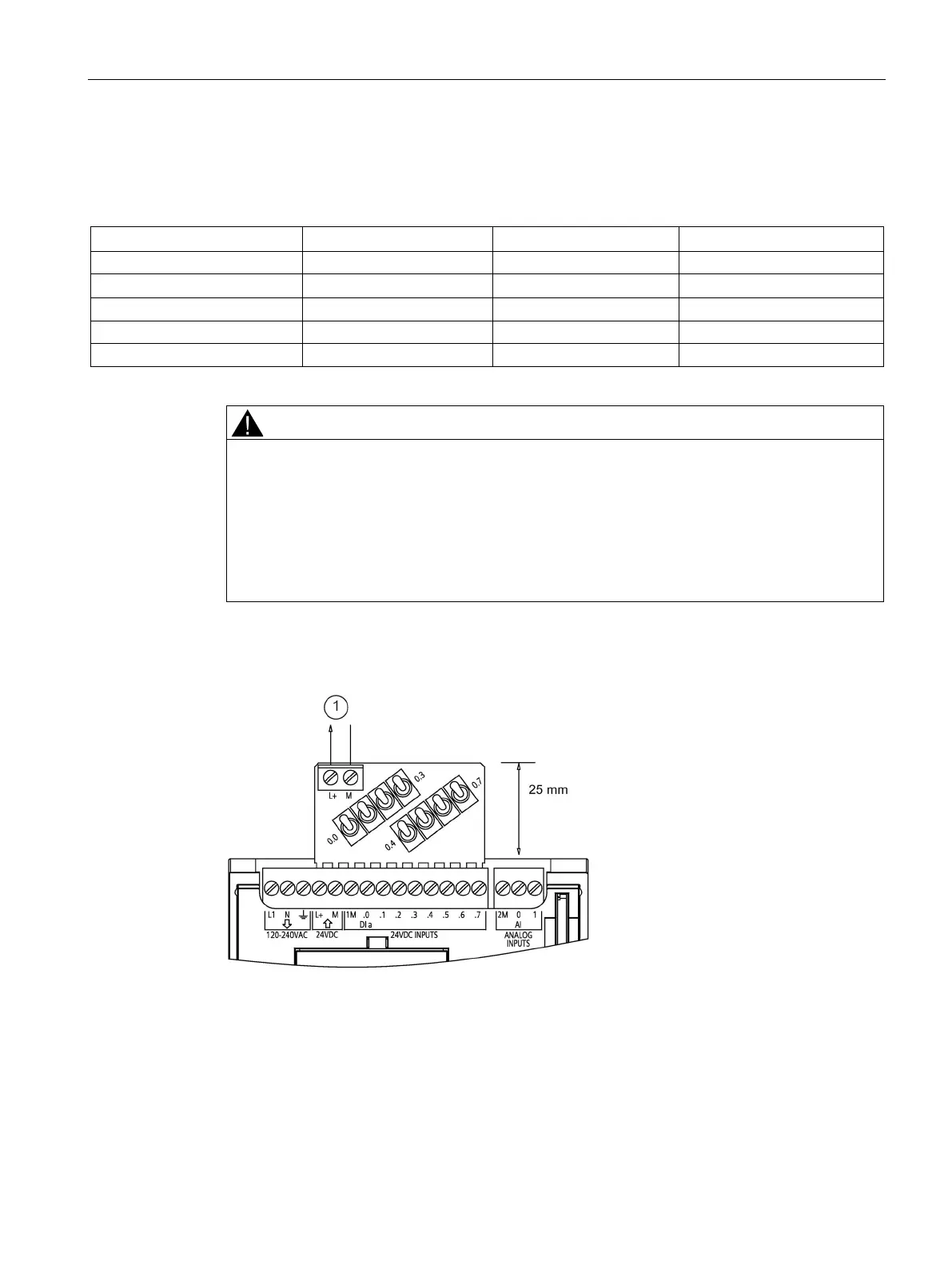

8 Position Simulator (6ES7274-1XF30-0XA0)
①
24 V DC sensor
power out
