4.3 Installation and removal procedures
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
73
Locate the SIM card slot on the underside of the TS module GSM.
Note
The SIM card may only be removed or inserted if the T
S module GSM is de-energized.

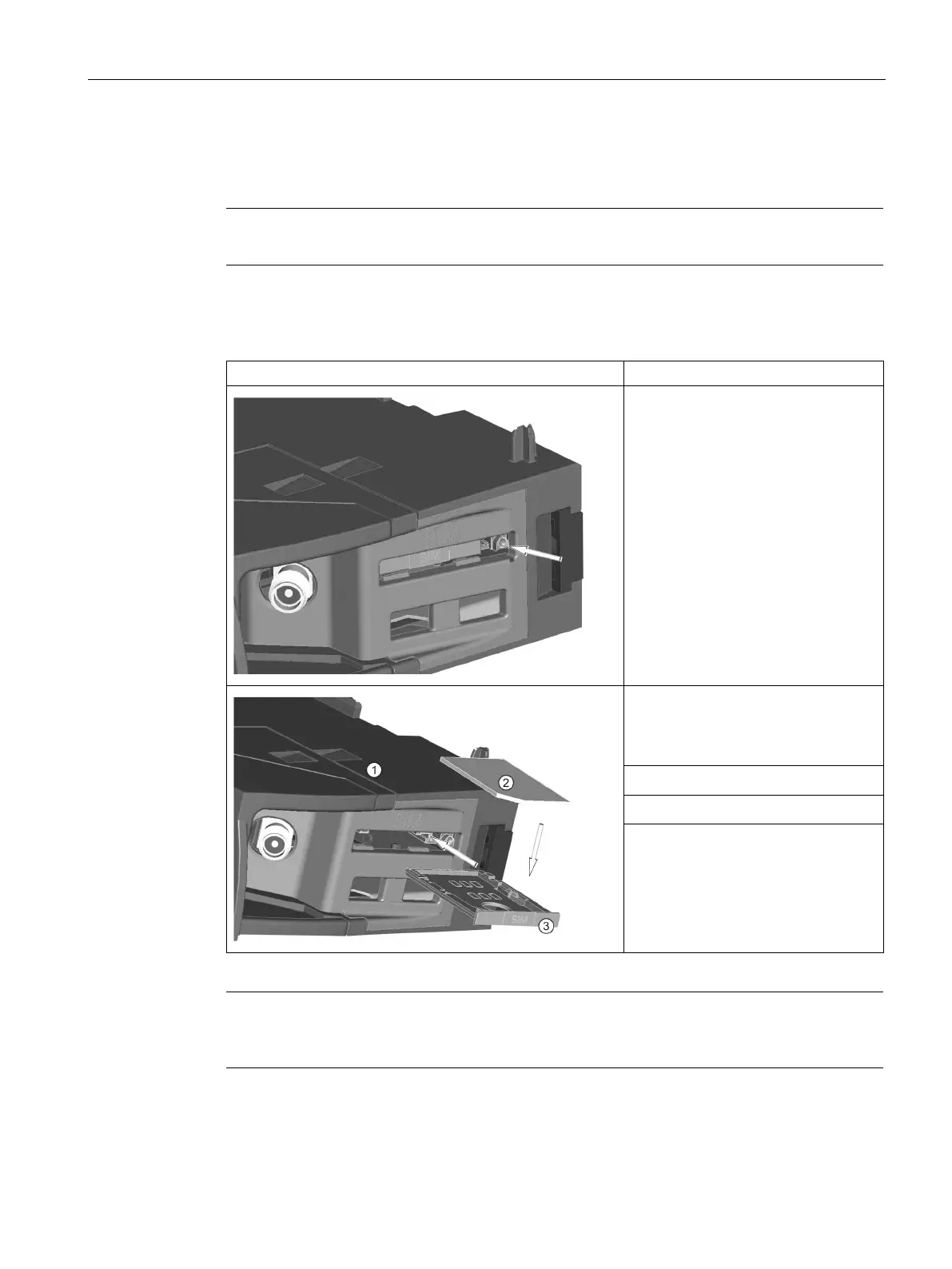

Table 4- 15 Installing the SIM card
Use a sharp object to press the eject
button of the SIM card tray (in the
direction of the arrow) and remove the
SIM card tray.
Place the SIM card in the SIM card
tray as shown and put the SIM card
tray back into its slot.
① TS Module GSM
SIM card
③ SIM card tray
Note
Ensure that the SIM card is correctly oriented in the card tray. Otherwise, the SIM card will
not make connection with the module, and the eject button may not remove the card tray.
