12.6 Standard Web pages
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
1023
12.6.8
Module Information

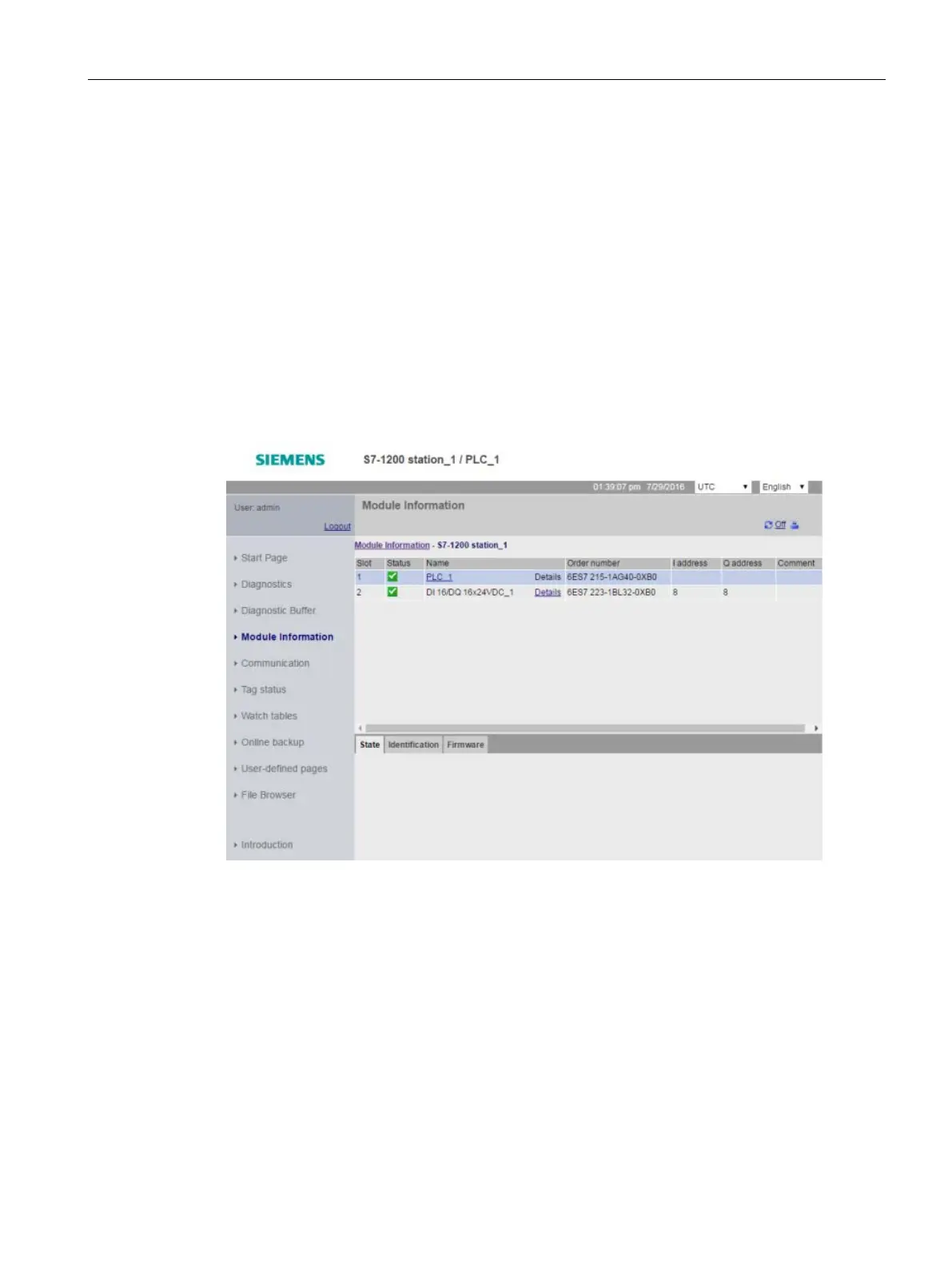

The module information page provides information about all the modules in the local rack.
The top section of the screen shows a summary of the modules based on the device
configuration in STEP 7, and the bottom section shows status, identification and firmware
information for the selected module based on the corresponding connected module. The
module information page also provides the capability to perform a firmware update.
Viewing the Module Information page requires the "query diagnostics" privilege (Page 1005).
Module information: Status tab
The status tab in the bottom section of the module information page displays a description of
the current status of the module that is selected in the top section. If the section is empty,
then the module has no pending diagnostic state.
