Technical specifications
A.8 CPU 1217C
S7-1200 Programmable controller
1440 System Manual, V4.2, 09/2016, A5E02486680-AK

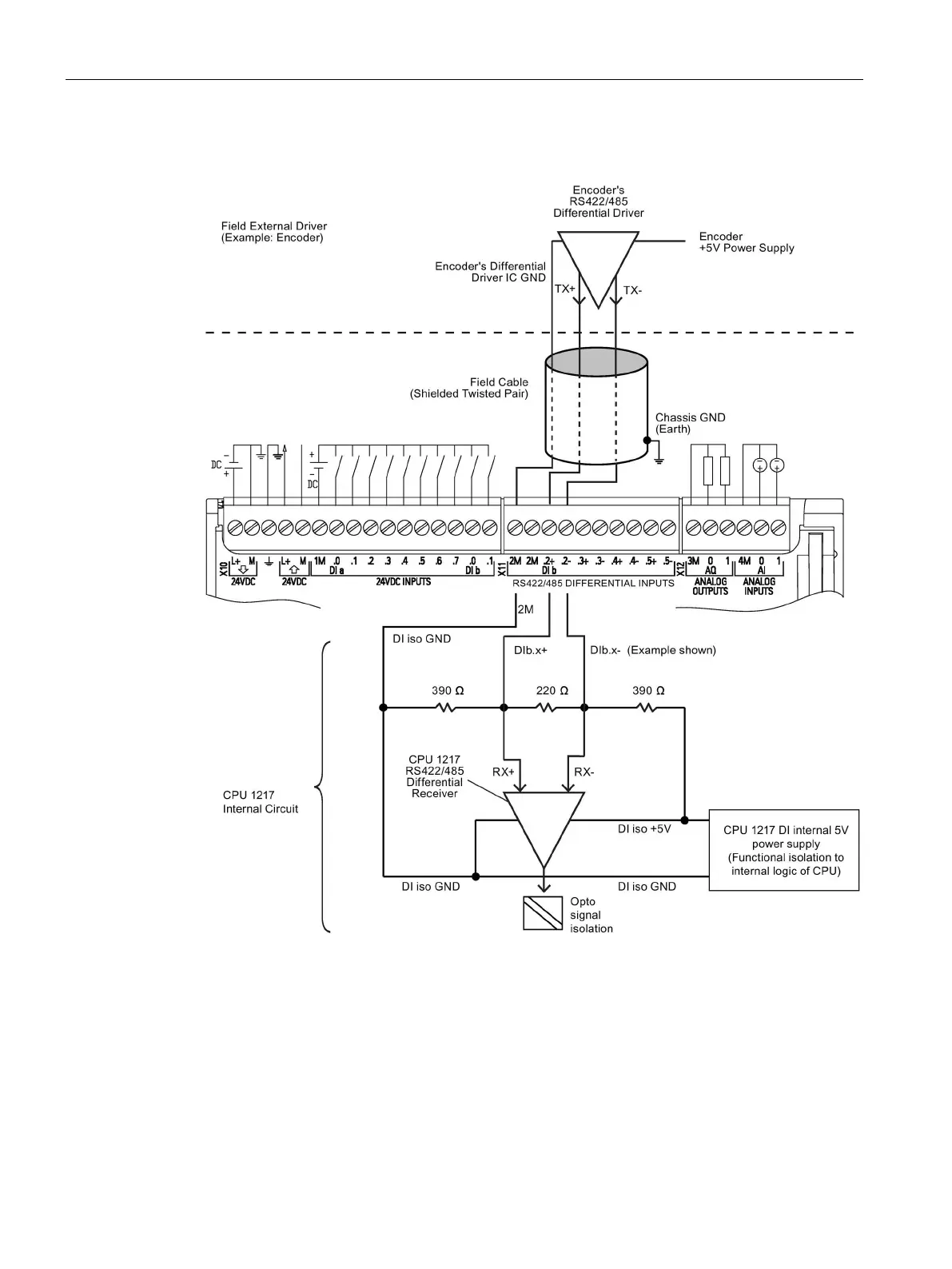

CPU 1217C Differential Input (DI) detail and application example
Notes
• Each differential DI is biased "OFF" when terminal block screws are open-circuit.
• Built-in DI Termination and Bias = 100 Ω equivalent impedance.
• Built-in DI Termination and Bias resistors limit the continuous common mode voltage
range. See electrical specifications for detail.
