4.3 Installation and removal procedures
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
75
Installing the TS adapter on a panel
Prerequisites: You must have connected the TS Adapter and TS module.
1. Move the attachment slider
① to the backside of the TS Adapter and TS module in the
direction of the arrow until it engages.
2. Screw the TS Adapter and TS module to the position marked with
② to the designated
assembly wall.

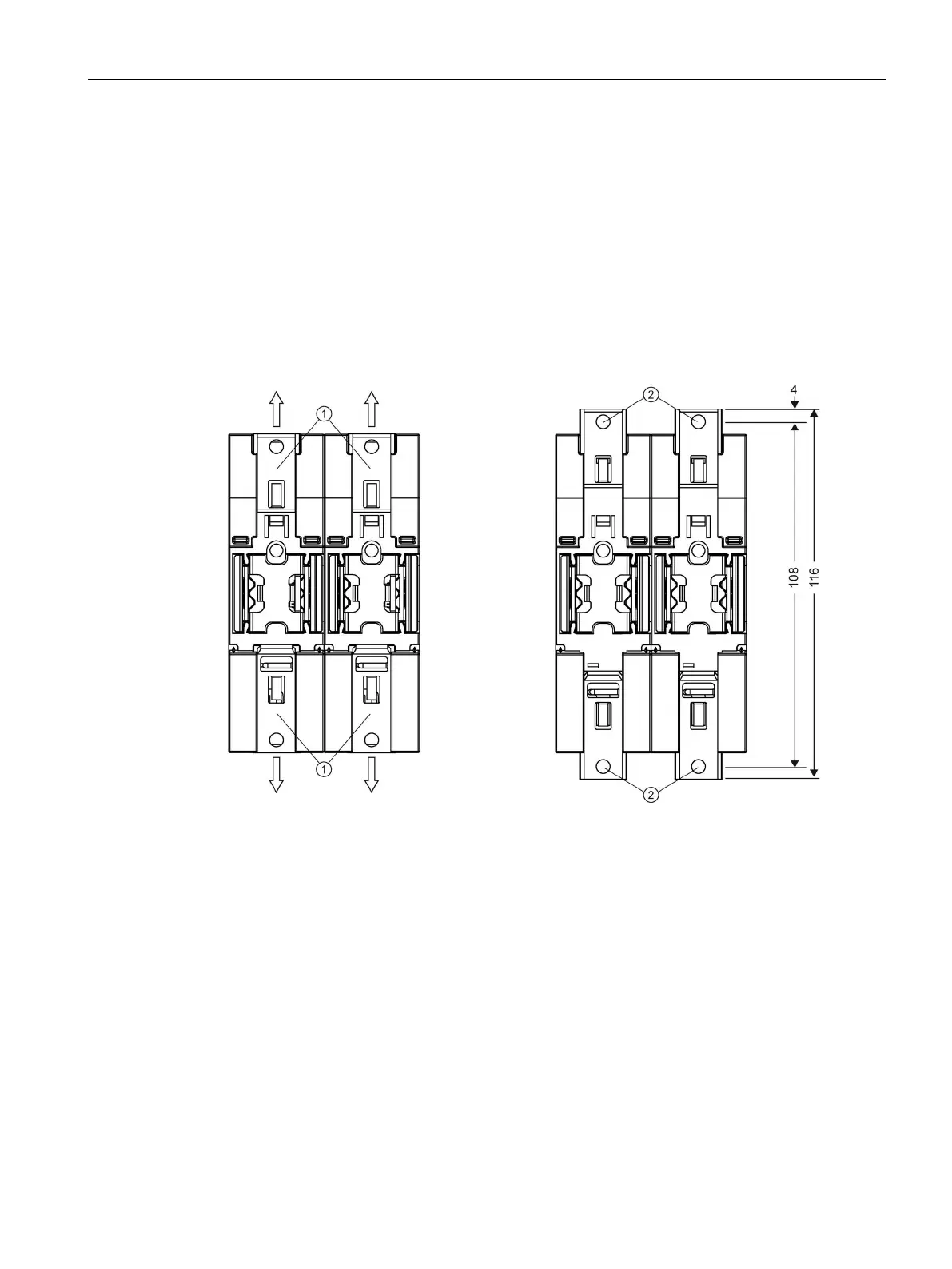

The following illustration shows the TS Adapter from behind, with the attachment sliders
①
in both positions:
Drill holes for wall mounting
