Siemens SIMATIC S7-1200

Communication
11.2 PROFINET
S7-1200 Programmable controller
814 System Manual, V4.2, 09/2016, A5E02486680-AK

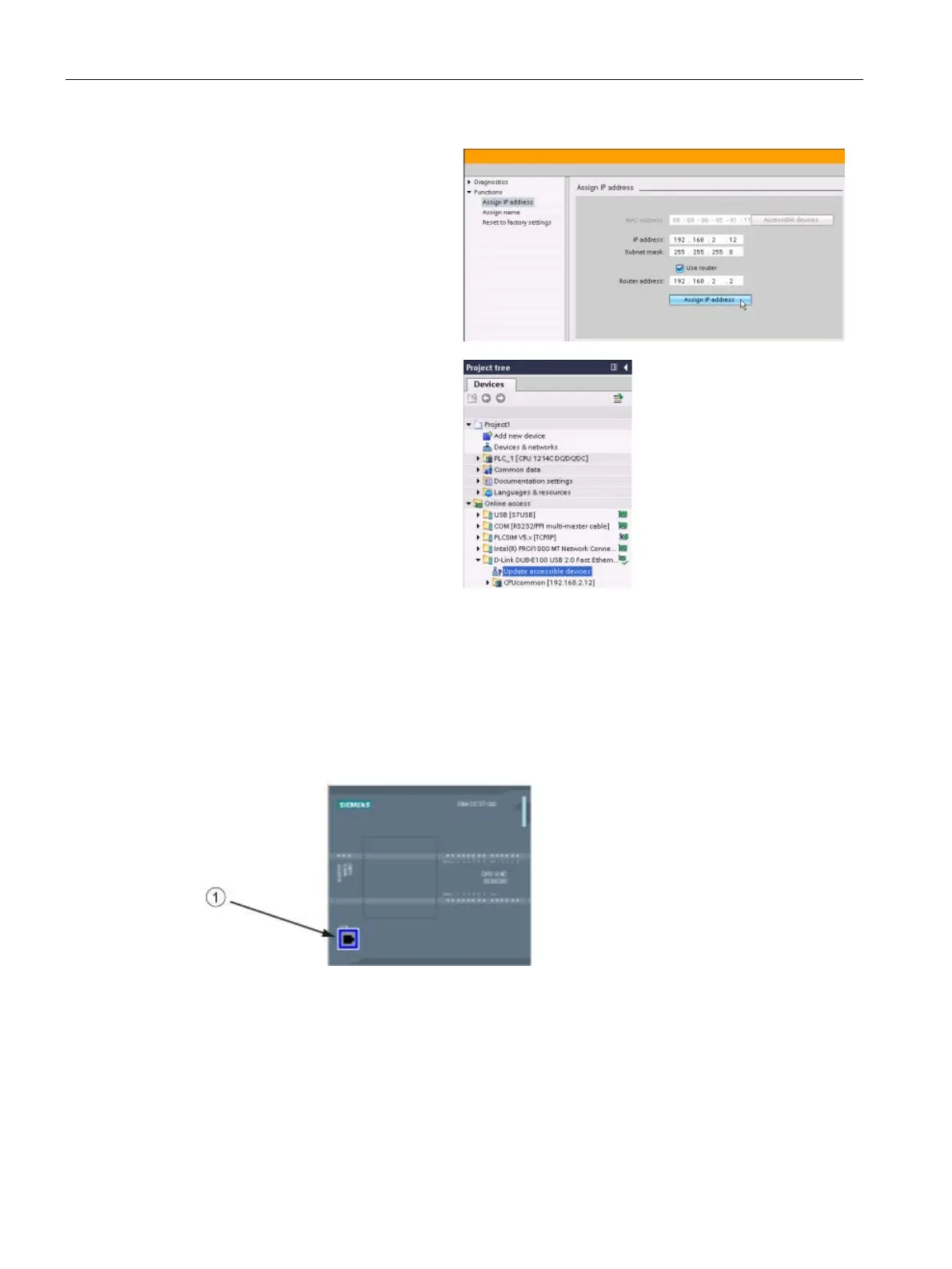

4. In the "IP address" field, enter
your new IP address, and click the
"Assign IP address" button.
5. In the "Project tree," verify that
your new IP address has been
assigned to the CPU, with the
following menu selections:
•
"Online access"
•
<Adapter for the network in
which the device is located>
•
"Update accessible devices"
11.2.3.4
Configuring an IP address for a CPU in your project
Configuring the PROFINET interface
To configure parameters for the PROFINET interface, select the green PROFINET box on
the CPU. The "Properties" tab in the inspector window displays the PROFINET port.
①
PROFINET port
