11.3 PROFIBUS
S7-1200 Programmable controller
972 System Manual, V4.2, 09/2016, A5E02486680-AK
Next, select "6ES7 155-6BU00-0CN0" (IM155-6 DP HF) from the list of part numbers, and
add the ET 200SP DP slave as shown in the figure below.

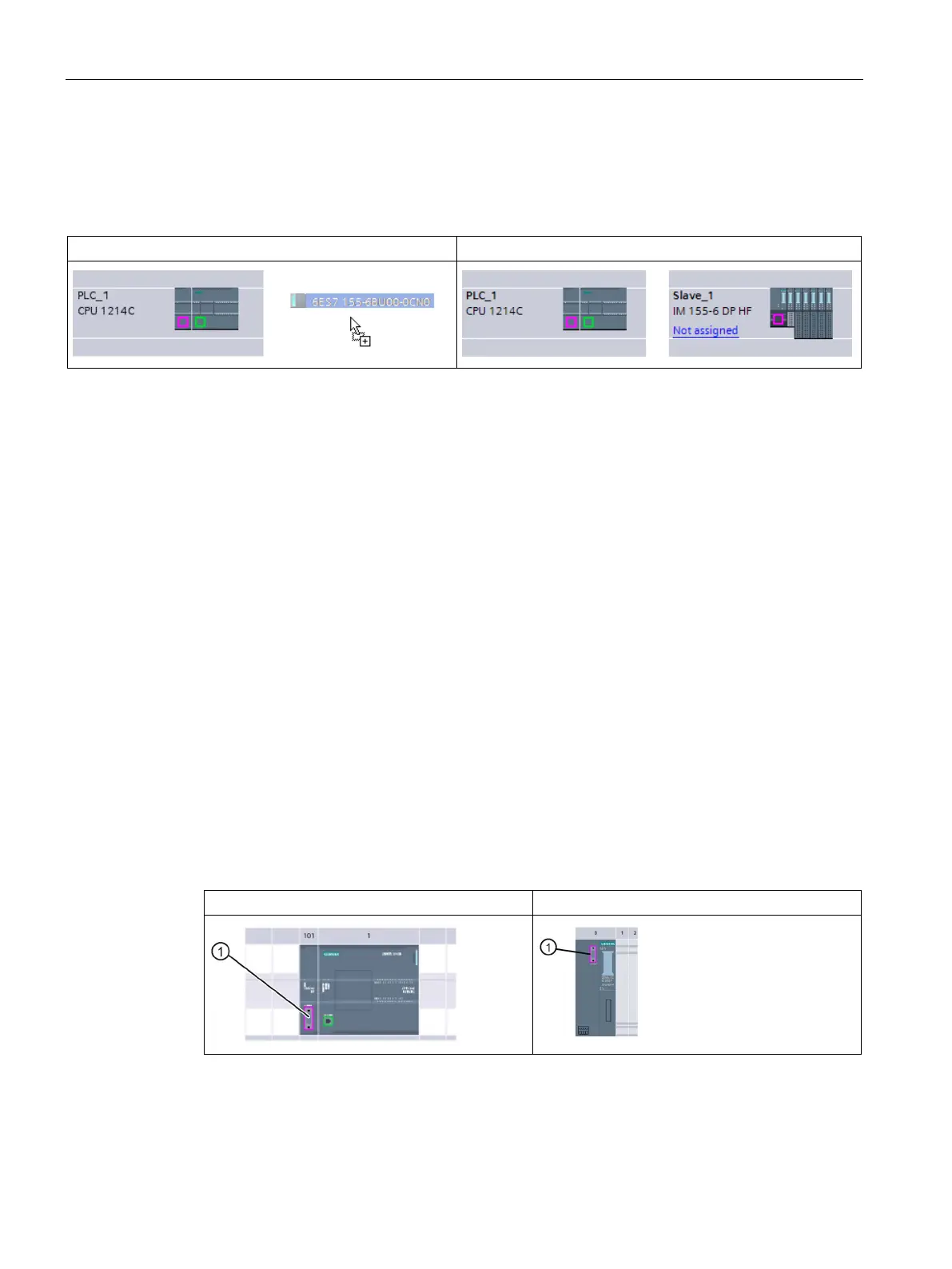

Table 11- 55 Adding an ET 200SP DP slave to the device configuration
Insert the DP slave
Result
11.3.3.2
Configuring logical network connections between two PROFIBUS devices
After you configure the CM 1243-5 (DP master) module, you are now ready to configure your
network connections.
In the Devices and Networks portal, use the "Network view" to create the network
connections between the devices in your project. To create the PROFIBUS connection,
select the purple (PROFIBUS) box on the first device. Drag a line to the PROFIBUS box on
the second device. Release the mouse button and your PROFIBUS connection is joined.
Refer to "Device Configuration: Creating a network connection" (Page 806) for more
information.
11.3.3.3
Assigning PROFIBUS addresses to the CM 1243-5 module and DP slave
Configuring the PROFIBUS interface
After you configure logical network connections between two PROFIBUS devices, you can
configure parameters for the PROFIBUS interfaces. To do so, click the purple PROFIBUS
box on the CM 1243-5 module, and the "Properties" tab in the inspector window displays the
PROFIBUS interface. The DP slave PROFIBUS interface is configured in the same manner.
Table 11- 56 Configuring the CM 1243-5 (DP master) module and ET 200SP DP slave PROFIBUS in-
terfaces
CM 1243-5 (DP master) module
ET 200SP DP slave
① PROFIBUS port
